Outdoor Cabinet Air Conditioner
>
|
| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC,IP55 |
| Model Number | TC06-50ZEH/01-1 |

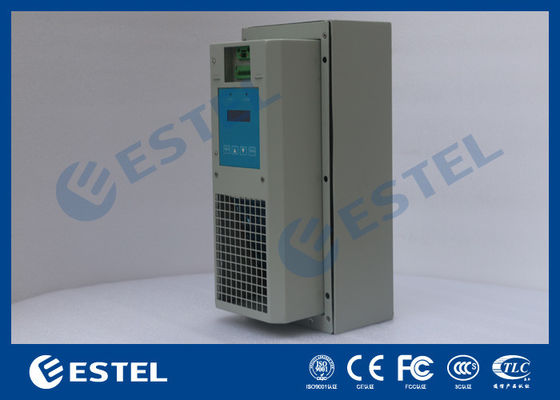

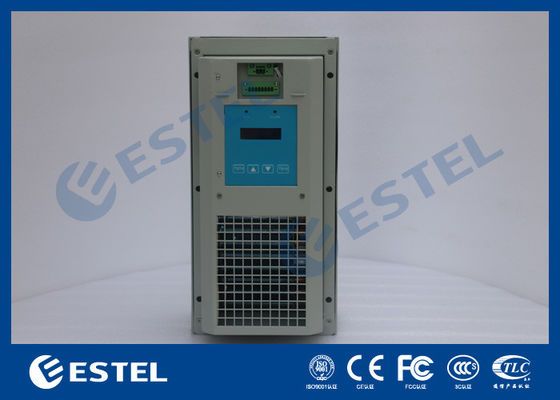

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency
1. Brief Introduction
(1) Intelligent controller.
The air conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data.
(2) LCD display.
(3) RS485 or RS232 communication, RTU-Modbus protocol, support remote detection and control.
2. Specifications
(1) Technical Parameters
| Model No. | TC06-50ZEH/01-1 | |
| Environmental Performance | working environmental temperature | -20°C ~ 55°C |
| storage working temperature | -40°C ~ 70°C | |
| working humidity | ≤95% | |
| Thermal Performance | rated cooling capacity |
550W(L35 L35) 500W(L25 L35) |
|
Electrical Performance |
rated input current |
3.6A(L35 L35) 3.2A(L25 L35) |
| rated input power |
173W(L35 L35) 154W(L25 L35) |
|
| input voltage | DC48V | |
| Reliability | MTBF | 60000 hours |
| Noise | ≤60dB | |
| Refrigerant | R134a | |
(2) Dimension Diagram: H×W×D: 400×190×221mm
Wiring Ports:
0V -48V: power supply input (voltage input: 48VDC±15%)
F+ F- : direct ventilation output
AL1 AL2: general alarm output
A+ B- SGND: RS485 communication interface
N: not connected pin
5. Mainboard Wiring Diagram
6. System Principle Diagram
7. Range of Application
The air conditioner is widely used in telecom cabinet, such as equipment cabinet, battery cabinet and UPS cabinet etc.
8. Packing
Packed with wooden case, thus it's good to avoid damage during transportation.
