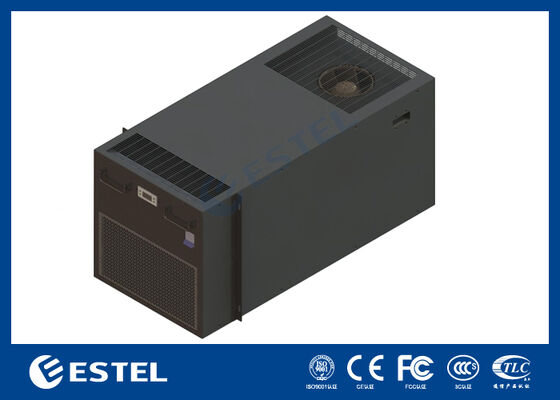

Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures

Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures
Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures

Large Image :  Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: LD.0025.AUBT.XS.3401
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 358-2143 usd
Packaging Details: carton/wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20,000 sets per month
Contact Now
Detailed Product Description
Dimensions (Including Flange): 940*483*355mm Dimensions（Without Flange）: 940*440*355mm
Weight: 55kg Mounting Method: In-rack Mounting
Application Temperature: -40-70℃ Working Temperature: -20-45℃
Highlight:

Outdoor Cabinet Air Conditioner 2500W

,

Temperature Control Outdoor Cabinet Air Conditioner

,

Outdoor Enclosures Cabinet Air Conditioner

2500W AC Inverter Rack Air Conditioner



* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* Built-in condensate water evaporating device;
* Dry contact alarm output, NO/NC optional;
* EC FAN, inverter compressor, intelligent speed

Technical Parameters

Product mode LD.0025.AUBT.XS.3401 unit
Dimensions (Including flange) 940*483*355 mm
Dimensions(Without flange) 940*440*355 mm
Weight 55 kg
Mounting method In-rack Mounting
Application temperature -40-70 ℃
Working temperature -20-45 ℃
Input voltage AC 220V±15%50/60Hz
Cooling capacity L35/L35@50Hz 2500 w
Power consumption L35/L35@50Hz 830 w
Condensing water evaporation power 500 w
Airflow 550 m³/h
IP grade IP 5X
Refrigerant R410A
Noise 60 dB(A)
Surface treatment Outdoor powder-coated black orange stripe



Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures 0



Product Dimension

Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures 1

Installation instructions

Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures 2

1. Inlet and outlet opening rate should be greater than 60%, to ensure adequate circulation of air, which is to extend the service life and reduce maintenance frequency is very important.
2. The air inlet and outlet of the protective cover should prevent short circuit of air duct, so that the air-con can get the best cooling effect.
3. Due to the opening of the housing problems caused by the fault, not in the scope of the warranty.

* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* Built-in condensate water evaporating device;
* Dry contact alarm output, NO/NC optional;
* EC FAN, inverter compressor, intelligent speed

* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* Built-in condensate water evaporating device;
* Dry contact alarm output, NO/NC optional;
* EC FAN, inverter compressor, intelligent speed

Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures 3
