Product Details:
Payment & Shipping Terms:
|
| Model: | ET1730513040200 | Material: | SUS 316 |
|---|---|---|---|
| Wall: | Single Wall | Compartment: | One |
| Door: | With One Front Door | Protection Level: | IP55 |
| Color: | RAL7035/optional | External Dimension: | H400mm×W300mm×D200mm |
| Cooling: | Per Customer's Request | Cable Routing: | Cable In And Out From The Bottom Of Cabinet |
| Lock: | 304 Mechanical Round Lock | Installation: | Wall Mounted |
| Highlight: | SUS 316 Outdoor Telecom Enclosure,IP65 Outdoor Telecom Enclosure,Telecom Outdoor Wall Mounted Cabinet |
||

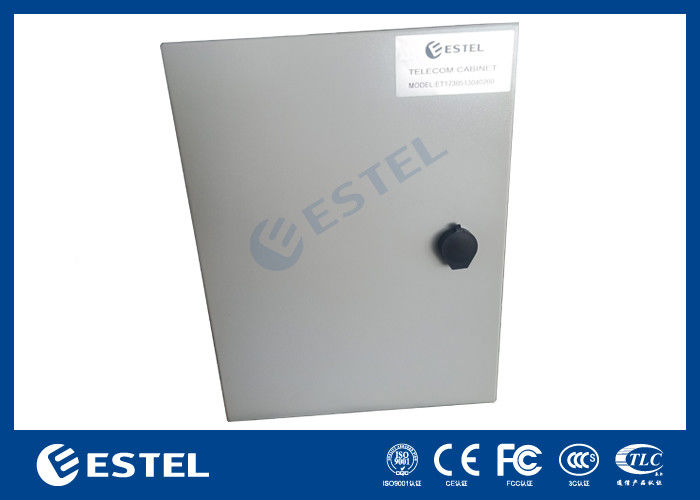

IP65 Outdoor Telecom Enclosure SUS 316 Wall Mounted ET1730513040200 With DIN Rail
1. ET1730513040200 Wall Mounted Cabinet Parameter:
| Configuration | Item | Technical Parameter |
| Cabinet |
Model | ET1730513040200 |
| Protection Level | IP66 | |
| External Dimension | H400mm×W300mm×D200mm | |
| Internal | One Back panel and DIN rail | |
| Material | Stainless steel 316, single wall, 1.2mm thickness | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | 304 mechanical round lock | |
| Installation | Wall mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Hinge | Inner hinge | |
| Environment |
Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |
2. IP65 Outdoor Cabinet IP Grade
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of stainless steel.
-Front door and use 304 mechanical round lock.
-Inside with mounting plate and DIN rail which can install customer's equipments.
-It is installed in the wall.
-Cable entry is via the base as standard with side or roof entry available upon request.
3. SUS 316 Cabinet Instructions
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
4. Wall Mounted Cabinet Pictures
5. Outdoor Cabinet Parameter
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET1730513040200 |
| Protection Level | IP65 | |
| External Dimension | H400mm×W300mm×D200mm | |
| Internal Dimension | Mounting plate and DIN rail | |
| Material |
Stainless steell, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | N/A | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | 304 mechanical round lock | |
| Hinge | Inner hinge | |
| Installation Options | Wall mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door | |
| Working condition | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |
6. Cabinet Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
7. ESTEL Factory introduction
| Place of Origin: Shenzhen, China (Mainland) |
| Brand Name: ESTEL |
| Factory Size: 3000 Square Meters |
| Product Name: Outdoor Battery Cabinet |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
| Contract Manufacturing: OEM ,ODM |
| Market:Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries |
9. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
