Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Wall: | Single Wall |
|---|---|---|---|
| Compartment: | 1 | Door: | With One Front Door |
| Protection Level: | IP55 | Application: | Telecommunication, Base Station, Electronic Ect, Outdoor Electronic Equipment, FTTX Network/Telecom |
| Color: | Grey/ Optional | Size: | Customer's Request |
| Cooling: | No Cooling | Cable Gland: | Yes , On The Bottom |
| High Light: | IP 65 Outdoor Telecom Enclosure,Wall Mounted Outdoor Telecom Enclosure,SS outdoor telecom equipment cabinets |
||

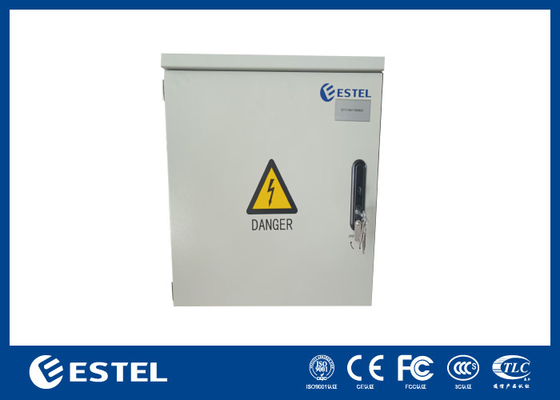

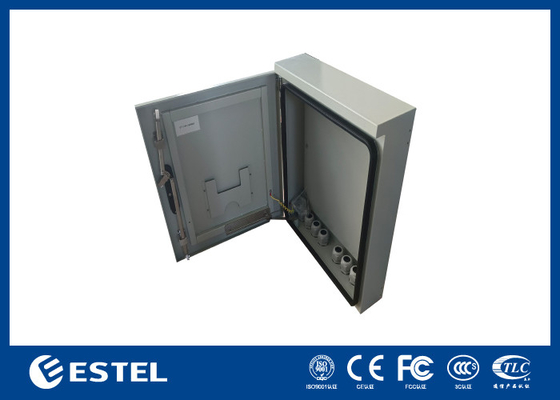

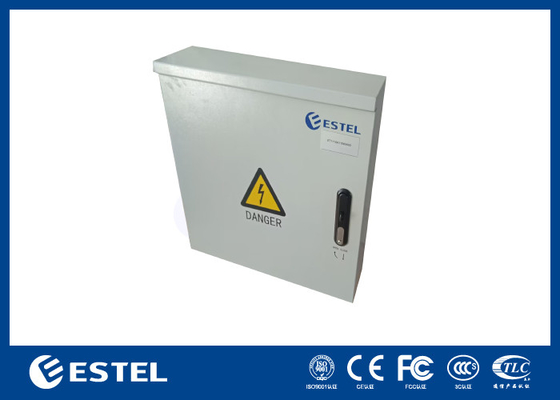

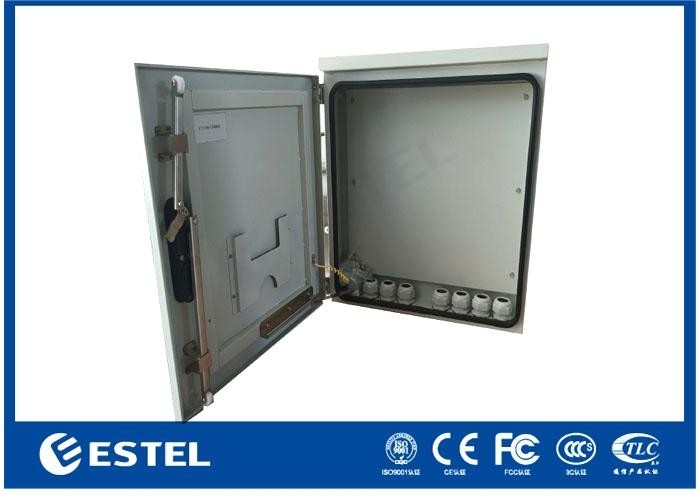

IP65 Stainless Steel Wall Mounted Panels For Seaside Outdoor Telecom Enclosure
1.Wall Mounted Panel
● Waterproof outdoor construction
● Back with mounting plate to install equipment
● Front access (rear access optional)
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
● Include file pocket on the front door
● Cooling: No cooling for this cabinet
2.Cabinet IP Grade
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of heavy gauge galvanized material.
-Front door and rear door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
-Inside with mounting plate
-Doors secured with steel dead locking system lock (support PADLOCK)
-It is installed in the ground root or above ground column base system by "direct burying"
-Cable entry is via the base as standard with side or roof entry available upon request.
3. Cabinet Instructions
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
4. Cabinet Diagram
5. Cabinet Parameter
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET1119411560600 |
| Protection Level | IP65 | |
| External Dimension | H600mm×W150mm×D600mm | |
| Internal Dimension | Mounting plate | |
| Material |
Stainless steell, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Wall mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door | |
| Working condition | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |
6. Various cooling system for your choice
7. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
8. Factory introduction:
| Place of Origin: Shenzhen, China (Mainland) |
| Brand Name: ESTEL |
| Factory Size: 3000 Square Meters |
| Product Name: Outdoor Battery Cabinet |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
| Contract Manufacturing: OEM ,ODM |
| Market:Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries |
9. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
