48VDC 150W/K Enclosure Heat Exchanger RS485 Communication MODBUS RTU Protocol
Product Details
150W/K Enclosure Heat Exchanger
,48VDC Enclosure Heat Exchanger
,48VDC cabinet heat exchanger
48VDC 150W/K Enclosure Heat Exchanger RS485 Communication MODBUS RTU Protocol
1. Application
This heat exchanger is mainly used for outdoor cabinet cooling. Also widely applied in small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM room etc.
2. Introduction
Heat Pipe Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.
Heat exchanger is mostly used for enclosed area cooling, HEX is designed especially for mounting in a cabinet. The unit uses ambient air for temperature regulation so it must have access to ambient. The internal temperature of the enclosure is cooled via effective utilization of the ambient air.
3. Technical Parameters
| Heat Exchanger | |
| Model | HE06-150SEH/01 |
| Rated Input Voltage | DC48V |
| Rated Input Current | 3.4A(L45/L35) |
| Rated Input Power | 164W(L45/L35) |
|
Rated Heat Exchange Capacity |
150W/K |
|
Rated Heating Capacity |
300W/500W (optional) |
| Operating Ambient Temperature | -20°C ~ 55°C |
| Noise | ≤65dB |
| IP Grade | IP55 |
| Weight | 18kg |
4. Dimension Drawing:
W×D×H 430×220×700 mm
5. Features
(1)Strong adaptability
(2)High intelligence, high precision, high reliability
(3)LED display, all the settings can be changed at field
(4)Low noise, low energy consumption
(5)With 4 way switching value detection
(6)With 1 way room air conditioner control
(7)Wide input voltage range: DC36 - 65V
(8)Dry contact alarm output,NO/NC optional .
(9)IP level: IP55, dust proof and water proof
(10)It has RS485 communication interface and supports MODBUS-RTU communication protocol.

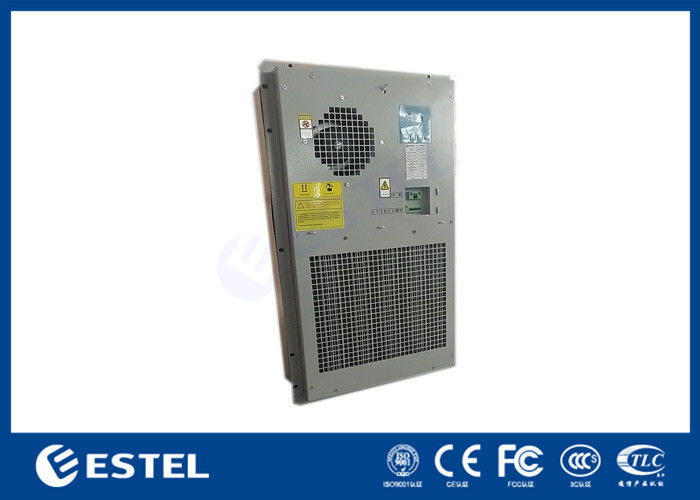

6. Heat Exchanger Photo
7. Packing
-
