Product Details:
Payment & Shipping Terms:
|
| Dimension: | 440mm*200mm*44mm | Installation: | 19inch Rack Mounted |
|---|---|---|---|
| Input: | Provides 8-way Universal DI Dry Contact Inputs | Operating Voltage: | DC36-72V Or AC90-264V |
| Rated Power: | 5W | Model: | FSU1000 |
| Signal Access: | RS485/RS232 | Input Voltage: | 12V±50% (6-18V) |
| Highlight: | Remote Control Dynamic Environment Monitoring Model,Environment Monitoring Model For Telecom |
||
Remote Control Dynamic Environment Monitoring Model FSUmini For Telecom Use
Overview of our FSUmini
|
Item |
Parameter |
|
Input voltage |
12V±50% (6-18V), with input short-circuit protection, overvoltage will cause damage to the mainboard |
|
Overall Power Consumption |
Standby power consumption less than 1W, standby current less than 0.1A(12V input) |
|
Power Supply Capacity |
All external power supply of the host does not exceed 12W, that is, 12V1A.May be limited by the power adapter |
|
Series Rate |
The maximum baud rate is more than 115,200 BPS |
|
Operation Temperature |
-5 ~ 55℃, (storage temperature -40 ~ 70℃) |
|
Operating humidity |
10 ~ 95%, (storage humidity 10 ~ 90%) |
|
Dimension |
120 * 104 * 28mm |
|
IP Grade |
IP20 |
Demonstration of the Model
| Model | DI*4 | DO*2 | Leakage*1 | RS485 | RS232 | Network Interface | 4G |
| FSUMINI | √ | × | √ | 1 | × | 1 | × |
| FSU Mini-B | √ | √ | √ | 2 | 1 | 1 | × |
| FSU Mini-C | √ | √ | √ | 2 | 1 | 1 | √ |
Advantage
Switching data acquisition: It is equipped with 4 universal switching data acquisition, which can access active and passive signal input.
On-off control: one switch is configured as a general control, and another is configured with one power control output, which can be used for external DC12V power control.
Data transmission: connect to the local device controller through RS485 interface or RS232 interface obtain the data of the local device controller and upload it to the server through 4G/ Ethernet network; Or transmit the control command sent by the server to the local device controller.
Supports multi-bit machines: all serial ports of the module can be reported independently in multiple channels, and data can be obtained by multiple upper computers at the same time
Protocol serial port diversification: supports protocol forwarding and can convert serial port (mains,Modbus) protocols to (Modbus-TCP, SNMP, Carrier B port)
Customized: small size and size can be customized according to the need, terminal interface, protection requirements can also be customized

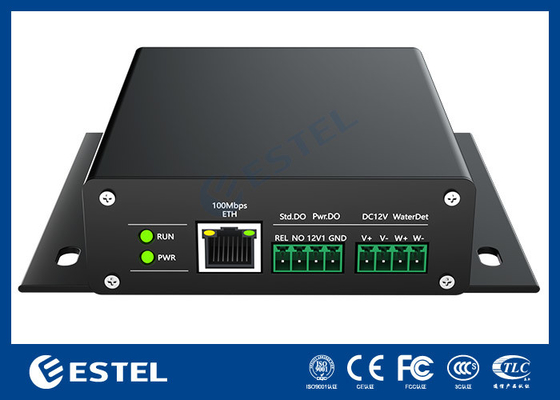

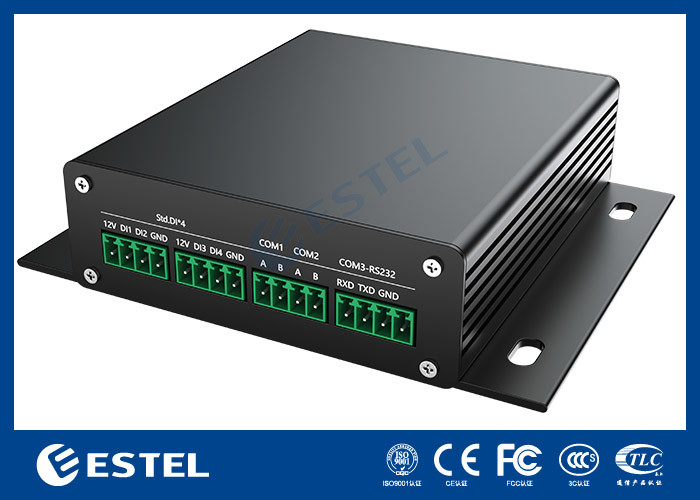

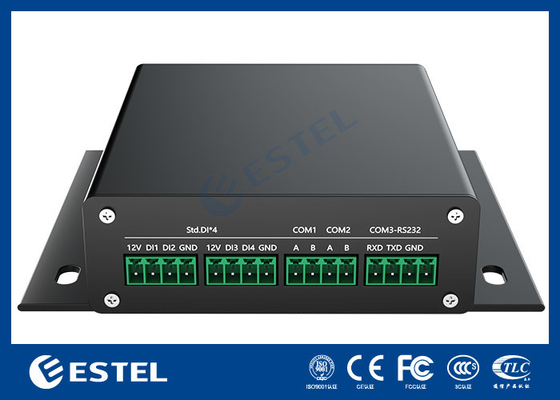

Product pictures:
Installation:
