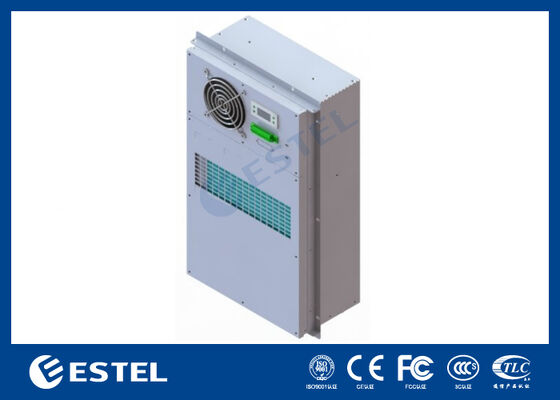

Cabinet Air Conditioner AC110V, 60Hz, 600W Cooling Capacity – Ideal for Harsh Environments with Remote Monitoring and Self-Protective Features

This Cabinet Air Conditioner is designed for thermal management of enclosed electrical/automation cabinets. It operates on AC 110V, 60Hz and provides 600W cooling capacity (≈ 2047 BTU/h). Built for harsh environments, it adds remote monitoring for easier maintenance and self-protective functions to improve reliability, making it suitable for distributed sites and unattended operation.

Key Features

• Purpose-built for sealed cabinets: Removes heat from inside control panels to help keep internal temperature stable and reduce heat-related failures of electronic components.

• Reliable in harsh conditions: Suitable for industrial sites with high ambient temperature, dust, humidity, oil mist, or vibration, where standard cooling solutions may struggle.

• Remote monitoring / easier maintenance: Enables remote status checking, alarms, and basic parameter visibility (integration with maintenance systems or HMIs), reducing on-site inspection workload.

• Self-protective functions: Automatically triggers protection under abnormal conditions (e.g., overheating or electrical anomalies), helping prevent compressor or system damage and extending service life.

• Automatic temperature control: Maintains setpoints through intelligent start/stop control for stable performance and improved energy efficiency.

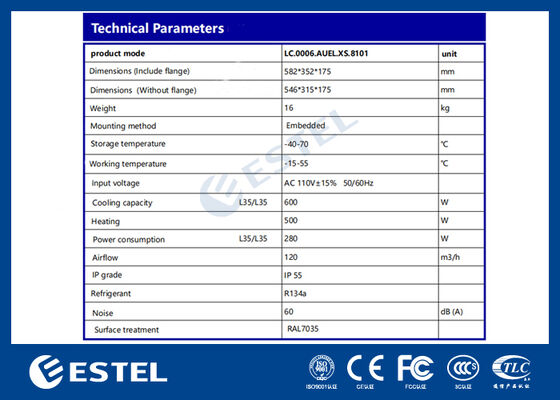

Main Specifications

• Power Supply: AC 110V

• Frequency: 60Hz

• Cooling Capacity: 600W (≈2047 BTU/h)

Items such as rated input power, current, noise level, enclosure rating, working temperature/humidity range, dimensions, mounting method, and communication interface should follow the official datasheet/nameplate.

Typical Application Scenarios

• Industrial automation: PLC cabinets, VFD/inverter panels, servo drive cabinets, robot controllers

• Power & energy: distribution cabinets, battery/energy storage cabinets, outdoor power enclosures

• Telecom & transportation: roadside controller boxes, communication cabinets, tunnel/traffic control cabinets

• Manufacturing equipment: CNC control boxes, laser equipment cabinets, inspection instrument enclosures

• Harsh environments: hot workshops, dusty factories, humid areas, semi-outdoor/outdoor cabinets (when installed per protection and sealing requirements)

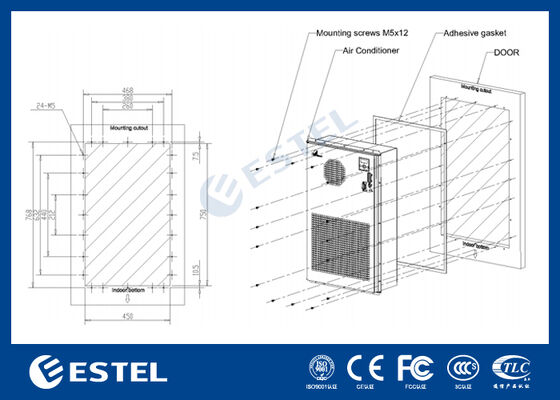

Installation & Operation Notes

1. Verify power compatibility: Site power must match 110V/60Hz. Use compliant breakers, grounding, and (if required) leakage protection.

2. Cabinet sealing matters: Performance depends on an enclosed cabinet. Air leakage through door gaps or cable entries reduces cooling effectiveness—use gaskets and proper cable gland sealing.

3. Ensure airflow clearance: Keep sufficient space around intake/exhaust areas to avoid recirculation or blockage.

4. Condensate management: Follow the manual for drain routing/collection. Prevent water from dripping onto sensitive devices or returning into the cabinet.

5. Regular maintenance: In dusty/oily environments, clean heat exchangers and filters periodically to prevent capacity drop and frequent alarms.

6. Remote monitoring wiring: Use proper shielding and grounding to reduce EMI. Secure cables against vibration and moisture ingress.

7. Use the right solution for hazardous sites: For explosive or highly corrosive atmospheres, choose certified explosion-proof/corrosion-resistant designs rather than standard units.
