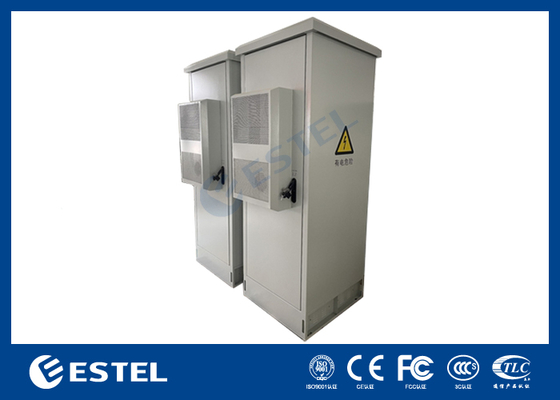

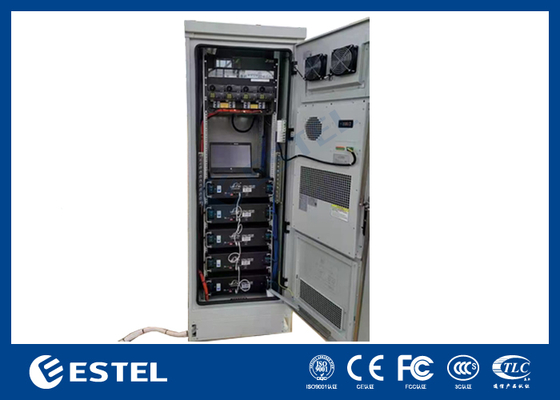

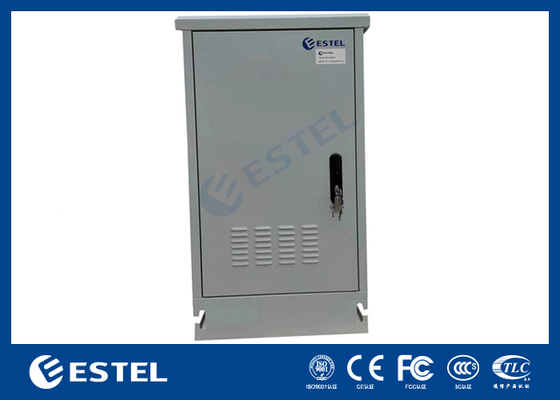

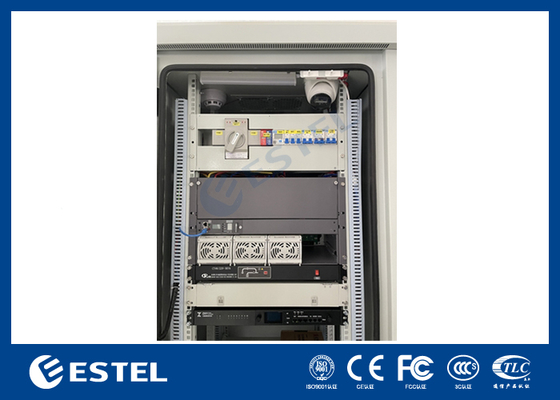

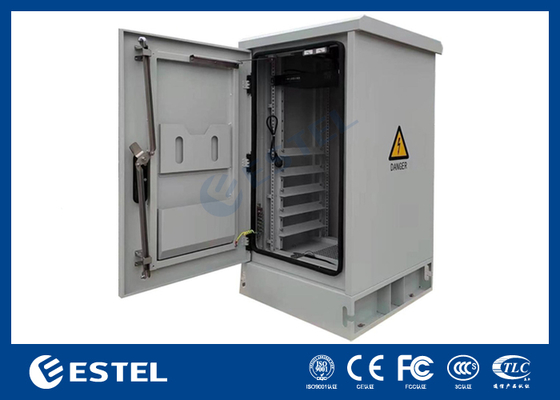

IP55 22U Outdoor Battery Cabinet with Embedded 9KW 48VDC Rectifier Power System for Telecom Applications
Product Details
48VDC Outdoor Battery Cabinet
,Telecom Outdoor Battery Cabinet
,Embedded Power System Outdoor Battery Cabinet
IP55 22U Outdoor Battery Cabinet With Embedded Power System 9KW 48VDC Rectifier For Telecom
1. Introduction
ET6565125-22U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet features
High protection grade: IP65
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
4. Technical Parameters
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6565125-22U |
| Protection Level | IP65 | |
| External Dimension | H1250mm×W650mm×D650mm (can be customomized) | |
| Internal Dimension | 19 inch rail, 22U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted,roof mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Optional | AC air conditioner |
| Cooling Capacity | 500W | |
| Input Voltage | 220VAC 50Hz | |
| PDU |
Mode:1US-M6-F Voltage:250VAC 6-position 10A universal hole+1-position lightning protection module, 2 meters of 3G1.5 square cable, 10A national standard three core plug. |
|
| Others | 220VAC 50HZ LED lamp | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
-
