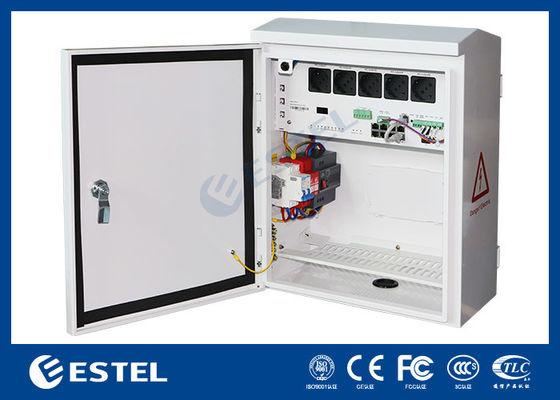

Metal Door Smart Surveillance Box With 1 Channel AC220V Power Input 5 Channels Output

Smart Surveillance Box With 1 Channel AC220V Power Input 5 Channels Output

The EPBL03 is a smart surveillance box.

It can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment.

It can managed all connected equipment and with rich management function. Work with the platform software,

It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down...

1. Key Features

• Provide 1 channel AC220V power input, 5 channels of AC power output ;

• Provide DC12V 3-channel power output, can remotely control, detect the output voltage and current;

• Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down...

• Built-in open door illumination, temperature controlled cooling fan, fiber tray and grounding array etc.
• The box body adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use;
• Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.

2. Application Scenarios

The non-intelligent solar power supply box is widely used in various scenarios requiring independent power supply, such as:

• Fieldwork: Such as geological exploration, field investigations, and other situations requiring portable power sources.
• Camping and Traveling: Providing power support for campers, including charging devices and lighting.
• Construction Sites: Supplying power for temporary construction sites, such as electric tools and lighting equipment.
• Remote Areas: Providing power support in regions without grid coverage or where the grid is unstable.

3. Technique Papameter:

4. Outdoor Box Features:

A waterproof Ethernet switch for a box typically has a set of features that enable it to operate reliably in harsh or wet environments. Here are some common features of a waterproof box Ethernet switch:

• Waterproof Enclosure:
  • The switch is enclosed in a waterproof housing that protects it from moisture, dust, and debris.
  • The enclosure is typically rated to a specific IP (Ingress Protection) rating, indicating its level of protection against solid objects and liquids.
• Ethernet Connectivity:
  • Provides multiple Ethernet ports (e.g., 4, 8, 16, or more) for connecting devices on a local network.
  • Supports standard Ethernet speeds, such as 10/100 Mbps or Gigabit Ethernet.
• Unmanaged or Managed Configuration:
  • Unmanaged switches offer basic network connectivity with minimal configuration options.
  • Managed switches allow for more advanced configuration, such as VLANs (Virtual Local Area Networks), QoS (Quality of Service), and port mirroring.
• Ruggedized Design:
  • The switch is designed to withstand shock, vibration, and temperature extremes.
  • Uses industrial-grade components that are reliable in demanding environments.
• Redundant Power Options:
  • Supports multiple power inputs for redundancy and fault tolerance.
  • May include a wide input voltage range or a DC-to-DC converter for flexibility.
• Mounting Options:
  • Provides brackets or mounting holes for easy installation in a waterproof box or enclosure.
  • Supports DIN rail, wall, or panel mounting, depending on the application.
• LED Indicators:
  • Has LED indicators for power, link status, and speed on each port.
  • Allows for quick visual monitoring of the switch's status.
• Environmentally Sealed Connectors:
  • The Ethernet ports and power connections are environmentally sealed to prevent ingress of water or dust.
  • Uses IP-rated connectors or waterproof cable glands.
• Compliance and Certifications:
  • Complies with safety and electromagnetic compatibility (EMC) standards.
  • May have certifications such as CE, FCC, UL, etc.
• Easy Configuration:
  • If it's a managed switch, it has a user-friendly interface for configuring network settings.
  • May support web-based, SNMP, or command-line interface (CLI) configuration.

When selecting a waterproof box Ethernet switch, it's important to consider the specific requirements of your application, such as the number of ports needed, the speed required, and the environmental conditions the switch will be exposed to.

5. Layout as below:
