2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen
2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen

Large Image :  2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: CE,ROSH,FCC
Model Number: E3P-90K-D2-150A-EU01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 15-20 working days
Delivery Time: 40 Days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 50,000 sets per month
Detailed Product Description
Input Rating: AC380V 3ph Wye150A Max. Number Of Phase / Wire: 3ph / L1, L2, L3, N, PE
Power Factor: >0.98 Current THD: <5%
Output Power: 90kW (2gun) Output Voltage Range: DC200V-1000V
Rated Output Current: 200A*2
Highlight:

Ocpp EV Charging Station

,

2 Gun EV Charging Station

,

DC EV Charging Station IP54

2 Gun Ocpp 60kW/90kW/120kW/150kW Dc Electric Charger Car Station Ev Charge Ev Charging Station Charger

1. Technical Parameters



The manufacturer is not liable for damages, losses, costs or expenses incurred

by any user of the EVSE (e.g. the installation engineer or owner of the EVSE) if

such damages, losses, costs or expenses result from a failure to comply with the applicable safety instructions given by the manufacturer, including, but not limited to, the following:

• Power outages or disruptions to the electrical supply to the EVSE.

• Accumulation of dirt or ingress of foreign substances within the EVSE.

• Corrosion of component parts.

• Upgrades enhancements or modifications to the equipment or its use.

• Damage to software or hardware due to any IT security problem, such as but not limited to a virus breakout or malicious hacking of the system.

• Damage or failure of equipment caused by vermin, insect infestations or the like.

• Damage or failure resulting from faults in some other equipment connected to

the scope of work.

• Damage or loss caused by hazards such as fire, flood, storm or the like or

spillage or leakage of chemicals or harmful substances onto the EVSE.

• Fault tracing caused by problems from a source external to the scope of work.

• Unprofessional or incorrect installation, installation not complying to standards, or installation not following the installation instructions contained in the product specific manual.

• Improper operation (in breach of the technical requirements or specifications or manuals of the product), negligence or repairs carried out by the Owner (or any third party not authorized by TCHARGE).

• Non-compliance with the applicable safety regulations or other legal standards by other parties than TCHARGE.

• Insufficient ventilation of the EVSE.

• Operation of the EVSE outside of its design conditions.

• Relocation of the EVSE from the original installation location or alteration of the overall system design.

• Only make changes to the EVSE if the manufacturer approves in writing of the changes.



2.Specification



Item Number   3P-90K-D2-150A-EU0

Power

input

Input rating AC380V 3ph Wye150A max.
Number of phase / wire 3ph / L1, L2, L3, N, PE
Power factor >0.98
Current THD <5%
Efficiency >95%

Power

output

Output power 90kW (2gun)
Output voltage range DC200V-1000V
Rated output current 200A*2
Output accuracy <0.5% (voltage and current)
Protection Protection Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
User interface & control Display 10” touch screen
Support language English (Other languages available upon request)
Charge option Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee
Environmental Operating temperature minus 20 ℃to+55℃ (derating when over 55℃)
Storage temperature -40 ℃to+70℃
Humidity < 95% relative humidity, non-condensing
Altitude Up to 2000 m (6000 feet)
Mechanical Ingress protection IP54
Enclosure Protection against External Mechanical Impacts IK10 according to IEC 62262
Cooling Air forced
Charging cable length 5m
Dimension (W*D*H) mm 700*780*1720mm
Weight 300kg





3. Dimension Diagram

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 0



4. installation condition



1.The charger should be installed on a flat concrete foundation, with a cable entrance reserved.

2.The vertical inclination is less than 5%.

3.Fix the bottom of the charger by eight M8 screws embedded in the foundation.

4.Keep at least 100cm spacing around the charger for heat dissipation and operation

5.An Awning is recommended.

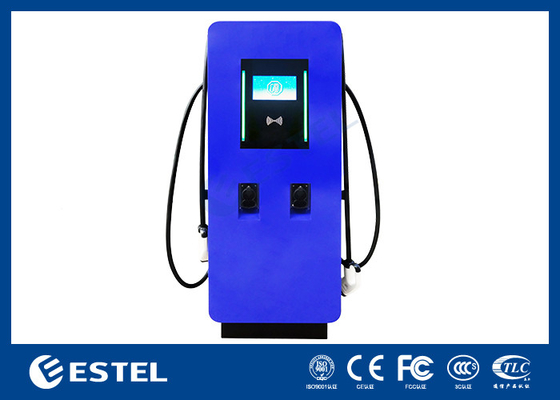

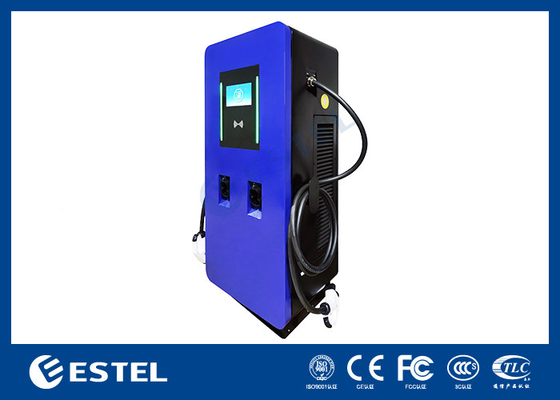

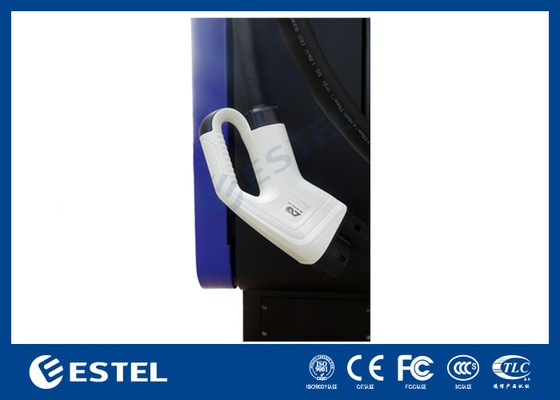

5. DC Charging Station Details



2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 1

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 2

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 3

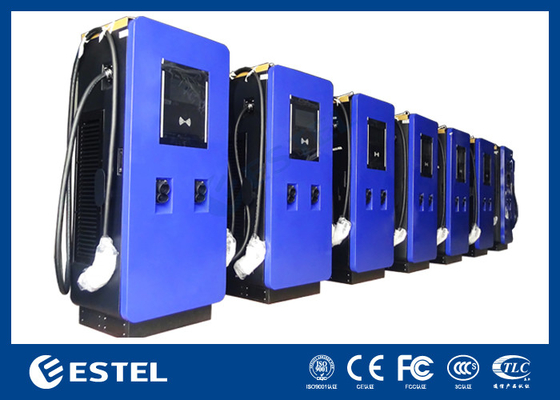

5. Projoct Case Show

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 4

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 5

2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 6













6. Make sure that the power supply to the EVSE is disconnected.

• Other Task is to be performed by qualified personnel.

• Keep unauthorized personnel at a safe distance during cleaning or maintenance.

• Put on the correct personal protective equipment.

Maintenance schedule for the owner

Task Frequency Procedure
Clean the cabinet. 4 months
Do a check for damage on the EV charge cables and the connectors. 3 months
Do a check for damage on the cabinet.

6 months




Replace the air inlet filters. 1 year
Make sure that the manufacturer does maintenance on the EVSE. 1 year

Replace the air outlet fil

ters.

After the first year, then 2 years

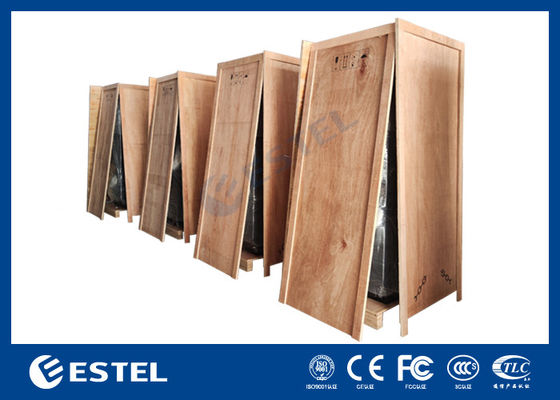

7.Packing



2 Gun Ocpp 60kW/90kW/120kW/150kW DC EV Charging Station IP54 With 10'' Touch Screen 7
