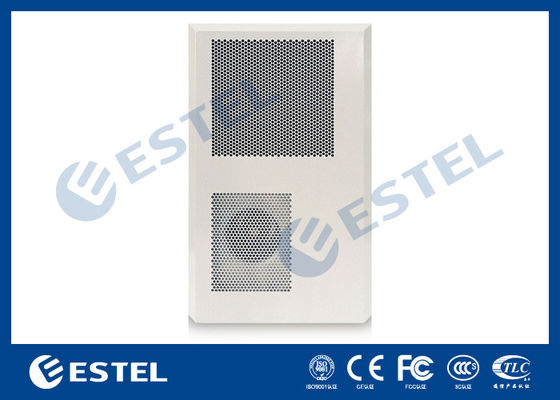

484W Outdoor Cabinet AC Powered Air Conditioner -20°C - +55°C Working Temperature

484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature
484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature

Large Image :  484W Outdoor Cabinet AC Powered Air Conditioner -20°C - +55°C Working Temperature

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: TC06-150JFH/01(KT029)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + wooden case + pallet
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 16,000 sets per month
Detailed Product Description
Rated Input Power: 484W Cooling Method: Compressor, Active Cooling
Application: UPS Room Installation: Door Mounted
Rated Input Current: 2.2A
High Light:

outdoor enclosure air conditioner

,

server cabinet air conditioner



484W Outdoor Cabinet AC Powered Air Conditioner -20°C - +55°C Working Temperature


Quick Details



Place of Origin: Shenzhen, China (Mainland) Rated Cooling Capacity : 1500W
Brand Name: ESTEL Rated Heating Capacity:300W/500W (optional)
Model: TC06-150JFH/01(KT029) Dimension: H×W×D: 750×500×230mm
Product Name: Outdoor Cabinet Air Conditioner Input Voltage: AC220V/50Hz
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Current: 2.2A
Cover: including outer cover Rated Input Power: 484W
Color: grey Working Temperature: -20°C ~ +55°C
Protection Level: IP55 Noise: ≤64dB
Installation Mode: door mounted Refrigerant: R410A
Support OEM Cooling Method: compressor active cooling



Payment & Shipping Terms



Minimum Order Quantity: 1 set
Price: depends on order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 16,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton + wooden case +pallet



1. Specifications

(1) Technical Parameters



Environmental Performance working environmental temperature -20°C ~ 55°C
storage temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated cooling capacity

1600W(L35 L35)

1500W(L25 L35)

rated heating capacity 300W/500W (optional)



Electrical Performance

rated input current

2.35A(L35 L35)

2.2A(L25 L35)

rated input power

517W(L35 L35)

484W(L25 L35)

rated input voltage

AC220V 50Hz

(185V~264V)

Noise ≤64dB
Reliability MTBF 70000h
Refrigerant R410A



Dimension Diagram: H×W×D: 750×500×230mm



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 0



Size

Model

Specs A B C D E F G H I J K
TC06-150JFH/01(KT029) 1500W 220 474 460 600 724 750 198 230 700 450 500



Door Hole-opening Diagram(mm):



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 1

Size

Spec

Model L M N O P Q R
1.5KW TC06-150JFH/01 (KT029) 474 460 220 724 708 600 460



Installation Diagram:



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 2

2. Description



TC06-150JFH/01(KT029) Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.



3. Application



The product is widely applied in outdoor telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



4. Features



  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Voltage input range: 220VAC±15% 50Hz
  • With dry contact alarm output
  • Voltage input range: 220VAC±15% 60Hz
  • With dry contact alarm output



5. System Principle Diagram



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 3



6. Electrical Wiring Diagram



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 4



Wiring Ports:

L N PE : power supply port (voltage input: 220VAC±15% 50Hz)

F+ F- : direct ventilation output port

AL1 AL2: general alarm output port

A+ B- SGND: RS485 communication port

N: not connected pin



7. System Control

7.1 Function and Application



ET731 intelligent air conditioner controller is a universal intelligent controller, controlling with highly integrated STC SCM. It can intelligently control thermostatic cabinet air conditioner working and hydrogen exhausting, including functions such as fault self diagnosis, power-on self start, or restart after unexpected failure caused by other reasons. The controller is compatible with all types of air conditioners in the market.



The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.



7.2 Technical Parameter



  • 2×16 Chinese/English shift LCD display, user friendly;
  • Simultaneously display temperature and humidity inside the box and communication room temperature;
  • Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:5%;
  • Can store 180 days’ daily event record, 1 record every day;
  • Daily highest temperature, lowest temperature, average temperature
  • Daily event record;
  • Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
  • RS485 communication, YD/T 1363.1-2005 standard protocol, support remote detection and control;
  • Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner)
  • Real-time control air conditioner on/off
  • Power supply: AC185V~264V/50Hz;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension(L×W×H):150mm×190mm×45mm



7.3 Operating Instruction



ET731 uses English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 5



The controller includes four types of working modes: operating mode, parameter mode, manual operating mode, and query mode.



8. Mainboard Wiring Diagram



484W Outdoor Cabinet AC Powered Air Conditioner  -20°C - +55°C Working Temperature 6





9. Leading Time



Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.





10. Packing and Shipping



The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
