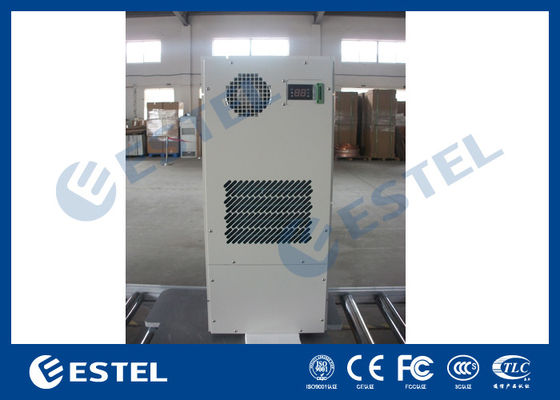

2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification

2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification
2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification

Large Image :  2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: DCSAD-4 (2500W)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + foam + wooden case +pallet
Delivery Time: 7-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 10,000 sets per month
Detailed Product Description
Model Number: DCSAD-4 (2500W) Working Temperature: -5°C ~ +55°C
Rated Input Power: 1120W Color: Grey
Noise: ≤68dB Cover Material: Galvanized Steel
Application: Outdoor Telecom Enclosure
Highlight:

outdoor enclosure air conditioner

,

control cabinet air conditioner



2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification


Quick Details:



Place of Origin: Shenzhen, China (Mainland)

Rated Cooling Capacity : 2500W

Brand Name: ESTEL Dimension W×D×H: 549×220×1208mm
Model Number: DCSAD-4 (2500W) Input Voltage: DC48V, variable frequency
Product Name: DC48V Outdoor Cabinet Air Conditioner Rated Input Power: 1120W
Certification:ISO9001, CE, 3C, FCC, TLC Working Temperature: -5°C ~ +55°C
Cover: including outer cover Noise: ≤68dB
Color: grey Refrigerant: R134a
Protection Level: IP55 Cooling Method: DC48V compressor, active cooling
Installation Mode: door mounted Support OEM



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 10,000 sets per month
Delivery Time: 7-15 working days
Packaging Details: carton + foam + wooden case +pallet



1. Product Introduction



Cabindet air conditioner is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature (30ºC) for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

(As Picture A)



Feature.



1. This series of products can be widely used for outdoor communication cabinets, battery cabinets, electric cabinets and industry control cabinets etc.

2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.

3. R134a system.

4. R134a system fits working conditions of high/low temperature 55 ºC /-5 ºC.

5. Digital temperature controller and high precision of temperature control.



2. Structure

2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 0



2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 1







Note.

1. The pictures are only for reference.



2. When installation, please put the side with display screen inside the cabinet, and the other side outside.





3. Technical Data



Model DCSAD-4
Cooling Capacity (W) 2500
Voltage (V) DC48
Rated Power(L35/L35) (W) 1120
Refrigerant R134a
Working Temperature (°C) -5~55
Noise (dB) 68
IP Grade IP55
Dimension(W×D×H) (mm) 549×220×1208



4. Cooling system

4.1 Basic Components



Air conditioner is composed of compressor, condenser, evaporator, electric control system, expansion valve and capillary tube, dry filter and fans etc.



4.2 Cooling Theory



4.2.1 The compressor takes in the gas refrigerant from the evaporator and compresses it into high temperature and high pressure then sends it into the condenser. The refrigerant will release heating in the condenser and then the cold high pressure liquid goes through capillary throttling and turns into low temperature and low pressure and then flows in to the evaporator. The refrigerant will absorb heat and then turns into gas in the evaporator. Thus forms the cooling cycle system.

4.2.2 The condenser and evaporator has circulation fan to enhance air convection and heat exchange efficiency. The heat exchange between condenser and air is outside the control box and that of evaporator and air is inside the control box.

4.2.3 The electrical system is mainly monitoring the temperature of the cooled closed cabinet and controls the cooling circulation by setting temperature.

4.2.4 Drawing of cooling theory.



2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 2





5. Installation Drawing





2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 3





6. Wiring Terminals





2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 4



7. Electrical Schematics

2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 5





8. Packing and Shipping



2500 Watt Inverter Electronic Enclosure Air Conditioner ISO9001 CE Certification 6



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
