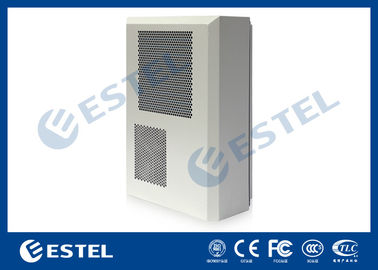

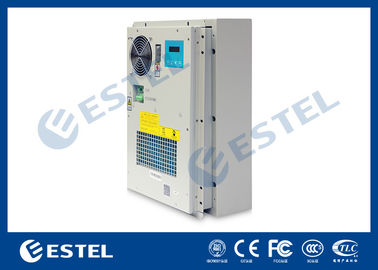

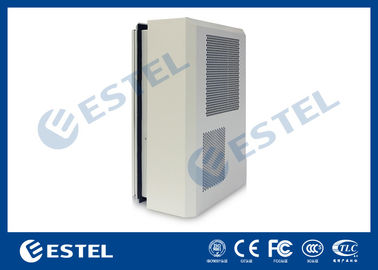

Strong Adaptability Outdoor Cabinet Air Conditioner For Advertising LED Display Screen
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Cooling Capacity: 500W |
| Brand Name: ESTEL | Rated Heating Capacity: 300/500W (optional) |
| Model: TC06-50ZEH/01-AD | Dimension: H×W×D 520×360×172mm |
| Product Name: Outdoor Advertising Kiosk Air Conditioner | Input Voltage: DC48V |
| Certification: ISO9001, CE, 3C, FCC, TLC | Rated Input Current: 3.3A |
| Cover Material: galvanized steel | Rated Input Power: 158W |
| Color: grey | Working Temperature: -20°C ~ +55°C |
| Protection Level: IP55 | Noise: ≤65dB |
| Installation Mode: side mounted | Refrigerant: R134a |
| Support OEM | Cooling Method: DC48V compressor, variable frequency |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 16,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton + wooden case |
1. Specifications
(1) Technical Parameters
| Model No. | TC06-50ZEH/01-AD | |
| Environmental Performance | working environmental temperature | -20°C ~ 55°C |
| storage working temperature | -40°C ~ 70°C | |
| working humidity | ≤95% | |
| Thermal Performance | rated cooling capacity |
600W(L35 L35) 500W(L25 L35) |
| rated heating capacity | 300W/500W (optional) | |
|
Electrical Performance |
rated input current |
3.5A(L35 L35) 3.3A(L25 L35) |
| rated input power |
168W(L35 L35) 158W(L25 L35) |
|
| input voltage | DC48V | |
| Reliability | MTBF | 60000 hours |
| Noise | ≤65dB | |
Dimension Diagram: H×W×D 520×360×172mm
2. Description
This air conditioner is powered by -48VDC. This air conditioner’s frequency can be regulated. It has cooling capacity regulating function, and the fans can regulate speed automatically to reduce noise.
The internal cycle air path absorbs the hot air from the upside, and discharges the cold air
from the downside of the air conditioner. The external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
3. Application
The air conditioner is widely applied in outdoor advertising kiosk, outdoor advertising led display screen, LED display panel, advertising player, bank ATM, etc.

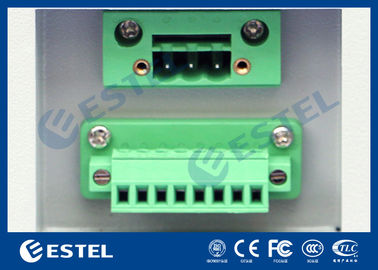

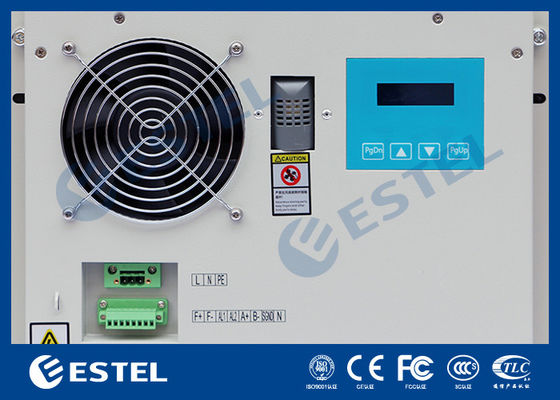

Wiring Ports:
0V -48V: power supply input (voltage input: 48VDC±15%)
F+ F- : direct ventilation output
AL1 AL2: general alarm output
A+ B- SGND: RS485 communication interface
N: not connected pin
