|Dimension:||H×W×D 750×500×230mm||Application:||UPS Room|
|Installation:||Door Mounted||Cooling Method:||Compressor, Active Cooling|
|Noise:||≤64dB||Working Temperature:||-20°C ~ +55°C|
outdoor enclosure air conditioner,
server cabinet air conditioner

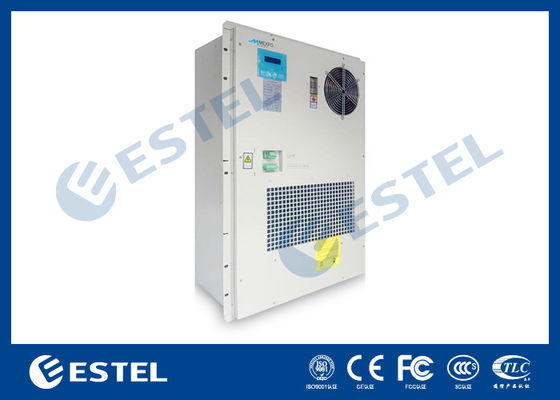

Compressor Outdoor Cabinet Air Conditioner 1600 Watt CE 3C Certification
|Place of Origin: Shenzhen, China (Mainland)||Rated Cooling Capacity : 1600W|
|Brand Name: ESTEL||Rated Heating Capacity:300/500W (optional)|
|Model: TC06-160JFH/01||Dimension: H×W×D 750×500×230mm|
|Product Name: Outdoor Cabinet Air Conditioner||Input Voltage: AC220V/50Hz|
|Certification: ISO9001, CE, 3C, FCC, TLC||Rated Input Current: 2.15A|
|Cover Material: galvanized steel||Rated Input Power: 473W|
|Color: grey||Working Temperature: -20°C ~ +55°C|
|Protection Level: IP55||Noise: ≤64dB|
|Installation Mode: side mounted, door mounted||Refrigerant: R410A|
|Support OEM||Cooling Method: compressor, active cooling|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union|
|Supply Ability:||16,000 sets per month|
|Delivery Time:||10-15 working days|
|Packaging Details:||carton + wooden case +pallet|
(1) Technical Parameters
|working environmental temperature||-20°C ~ 55°C|
|storage working temperature||-50°C ~ 70°C|
|Thermal Performance||rated cooling capacity||
|rated heating capacity||500W(optional)|
|rated input current||
|rated input power||
|rated input voltage||
(187V ~ 264V)
Dimension Diagram: H×W×D: 750×500×230mm
Door Hole-opening Diagram(mm):
TC06-160JFH/01 Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.
The product is widely applied in outdoor telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.
L N PE : power supply port (voltage input: 220VAC±15% 50Hz)
F+ F- : direct ventilation output port
AL1 AL2: general alarm output port
A+ B- SGND: RS485 communication port
N: not connected pin
ET731 intelligent air conditioner controller is a universal intelligent controller, controlling with highly integrated STC SCM. It can intelligently control thermostatic cabinet air conditioner working and hydrogen exhausting, including functions such as fault self diagnosis, power-on self start, or restart after unexpected failure caused by other reasons. The controller is compatible with all types of air conditioners in the market.
The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.
ET731 uses English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:
The controller includes four types of working modes: operating mode, parameter mode, manual operating mode, and query mode.
