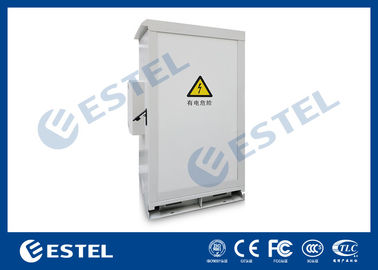

Dustproof Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet

Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet
Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet

Large Image :  Dustproof Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE075
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
Material: Galvanized Steel Cabinet Lock: Anti-theft Three Point Lock
Application: Outdoor Telecom Base Station Relative Humidity: 5% ~ 100%
External Size: H×W×D1750×900×900mm Cooling: DC48V Peltier Air Conditioner
Air Pressure: 62kpa ~ 101kpa (similar To 0m ~ 5000m Altitude) Coating: Anti-corrosion Outdoor Powder Coating
Highlight:

outdoor battery enclosure

,

telecom outdoor cabinet



Dustproof Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Size:H×W×D 1750×900×900mm
Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: DDTE075 Cabinet Layout: one compartment, for installing batteries
Product Name: Outdoor Battery Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Inlet: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: DC48V peltier air conditioner
Coating: anti-corrosion outdoor powder coating Cooling Options: Heat exchanger, AC220V air conditioner



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Delivery Time: 7-15 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension:H×W×D1750×900×900mm
Layout 1 compartment
Equipment Installation Method Battery shelf
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V Peltier air conditioner
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Battery Cabinet 1 Set

(1)External Dimension:H×W×D1750×900×900mm (2)1 compartment: battery compartment;

(3)With one front door, and special lock for outdoor cabinet (support padlock)

(4)Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

2 TEC Air Conditioner 1 Set

Cooling capacity: 200W, DC48V;

Model: TC06-20TEH/01

3 Door Sensor 1 PC For controlling LED lamp
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case



2. Features



(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment

(2) Cabinet cooling: TEC air conditioner. (Other cooling option: heat exchanger and fans). MTBF≥50000h

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable

(4) All the cables used in the cabinet are made from flame retardant materials.





3. Description

3.1 Cabinet Material



The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.



3.2 Cabinet Structure

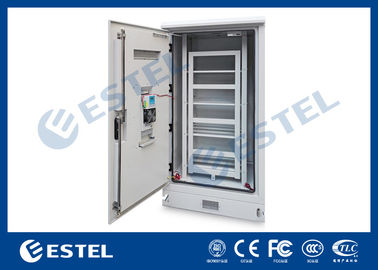

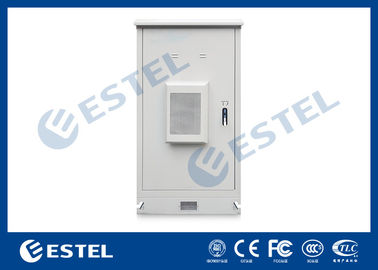

The cabinet includes battery shelf. The cabinet includes one peltier air conditioner, installed on front door.



3.3 Cabinet Door and Lock

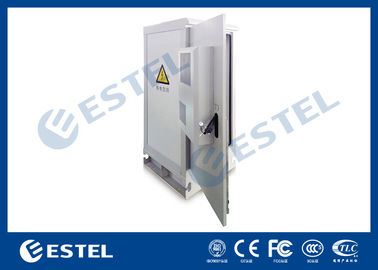

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



3.3.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 0

  • Three point lock

Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 1

Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 2



3.4 Cable Inlet



Feeder cable and other external cables all use bottom wiring method.



Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 3

3.5 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 4



3.6 Connection and Fastening



(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

(2) Door hinges use inner hinge mode.



Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 5



3.7 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



4. Applications



The DDTE075 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



5. Packing and Shipping



Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 6



Dustproof  Rainproof Outdoor Battery Cabinet , Outside Base Station Cabinet 7



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
