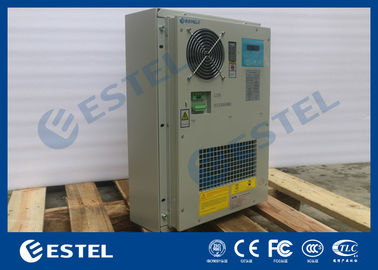

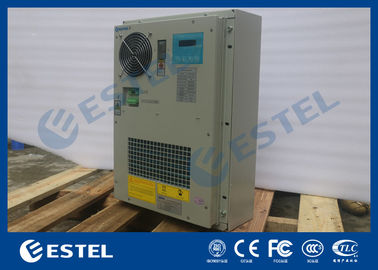

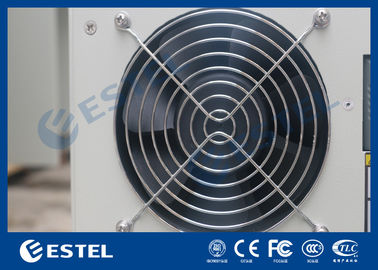

R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor

R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor
R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor

Large Image :  R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: TC06-30JFH/01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 25,000 sets per month
Contact Now
Detailed Product Description
Protection Level: IP55 Rated Input Power: 154W
Refrigerant: R134A Rated Input Current: 0.7A
Rated Cooling Capacity: 300W Cooling Method: Compressor, Active Cooling
Noise: ≤55dB Application: Outdoor Telecom Base Station Cabinet
High Light:

outdoor enclosure air conditioner

,

server cabinet air conditioner



R134A Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems

1. System Control

Technical Parameter



  • 2×16 Chinese/English shift LCD display, user friendly;
  • Simultaneously display temperature and humidity inside the box and communication room temperature;
  • Temperature measurement accuracy: 0.1°C; humidity measurement accuracy:5%;
  • Can store 180 days’ daily event record, 1 record every day
  • Daily highest temperature, lowest temperature, average temperature
  • Daily event record;
  • Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
  • RS485 communication, YD/T 1363.1-2005 standard protocol, support remote detection and control;
  • Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner)
  • Real-time control air conditioner on/off
  • Power supply: AC185V~264V/50Hz;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension(L×W×H):150mm×190mm×45mm



2. Quick Details



Place of Origin: Shenzhen, China (Mainland) Rated Cooling Capacity : 300W
Brand Name: ESTEL Rated Heating Capacity:300/500W (optional)
Model: TC06-30JFH/01 Dimension: H×W×D 520×360×187mm
Product Name: Outdoor Cabinet Air Conditioner Input Voltage: AC220V/50Hz
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Current: 0.7A
Cover Material: galvanized steel Rated Input Power: 154W
Color: grey Working Temperature: -20°C ~ +55°C
Protection Level: IP55 Noise: ≤55dB
Installation Mode: door mounted Refrigerant: R134a
Support OEM Cooling Method: compressor, active cooling



Payment & Shipping Terms



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 25,000 sets per month
Delivery Time: 7-10 working days



3. Specifications

(1) Technical Parameters



Environmental Performance working environmental temperature -20°C ~ 55°C
storage temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated cooling capacity

350W(L35 L35)

300W(L25 L35)
rated heating capacity 300/500W (optional)



Electrical Performance

 rated input current

0.9A(L35 L35)

0.7A(L25 L35)
rated input power

198W(L35 L35)

154W(L25 L35)
rated input voltage AC220V~240V/50Hz
Refrigerant R134a
Noise ≤55dB



Dimension Diagram: H×W×D: 520×360×187mm



R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor 0



Size

Model

 Specs A B C D E F G H I J K

TC06-30JFH/01

(KT033)

 300W 210 336 350 430 496 520 140 187 476 315 360



Door Hole-opening Diagram(mm):



R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor 1

Size

Model

 Specs L M N O P Q R

TC06-30JFH/01

(KT033)

 300W 336 322 210 496 483 430 350



Installation Diagram:



R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor 2

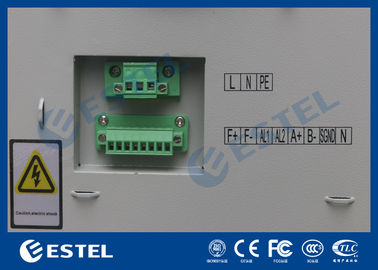

4. Mainboard Wiring Diagram

R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor 3



5. Packing and Shipping



R134a Refrigerant Electronic Enclosure Air Conditioner , Outdoor Enclosure Cooling Systems 300W Compressor 4



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
