Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V
  • Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V
  • Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V
  • Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V
  • Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V
  • Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V

Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC
Model Number GPE48200N
Product Details
Installation Mode:
19” Rack
Application:
Outdoor Telecom Cabinet
Input Voltage:
AC220V/AC110V
Output Power:
10700W/5350W
Max. Input Current:
67A
Power Factor:
0.98
Input Frequency:
45~65Hz
High Light:

telecom rectifier module

,

dc rectifier system

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton/wooden case
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, , T/T, Western Union
Supply Ability
20,000 sets per month
Product Description



Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Input Voltage: AC220V/AC110V
Brand Name: ESTEL Output Voltage: DC48V
Model Number: GPE48200N Output Power:10700W/5350W
Product Name: Telecom Rectifier System Input Frequency: 45~65Hz
Certification: ISO9001, CE, 3C, FCC, TLC Max. Input Current: 67A
Installation Mode: 19” rack Power Factor: 0.98
Application: outdoor telecom cabinet

Components:

4×50A rectifier module,

1×monitoring module,

1×PDU.



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C, D/A, D/P, , T/T, Western Union
Supply Ability: 20,000 sets per month
Delivery Time: 7-10 working days
Packaging Details: carton/wooden case



1. Specifications


Technical Parameters



Input
Item Min. Typical Max. Unit Remark
Input Voltage Range 90 220 290 Vac
Input Frequency 45 50 65 Hz
Max. Input Current     67 A
Power Factor 0.98       Rated load
Input Over-Voltage Protection Point 300     Vac Automatic recovery
Input Over-voltage Recovery Point 290     Vac Backlash is not less than 5V
Input Undervoltage Protection Point     85 Vac Automatic recovery
Input Undervoltage Recovery Point     90 Vac Backlash is not less than 5V
Input Overcurrent Protection         AC input has air switch for protection.
Output
Item Min. Typical Max. Unit Remark
Output Voltage 42 53.5 58 Vdc Adjustable by monitoring, no-load test
Output Power   10700   W 176 ~ 290VAC input, 10700W output (rated power, including battery charging power and load power.)
  5350   W 90 ~ 175VAC input
Environment
Item Min. Typical Max. Unit Remark
Operating Temperature -25   55 ° C ≥ 55°C, the power need to lower the power output.
Storage Temperature -40   80 ° C
Humidity 10   90 % Relative humidity, non-condensing.
Atmospheric Pressure 70   106 KPa
Altitude 0   3000 m
Cooling Forced cooling fan



2. Description



GPE48200N consists of power distribution, rectifier module (min 1 module, max 4 modules), and 1 monitoring module. Please refer to the following table:


Configuration Rectifier Module Monitoring Module Power Distribution Remark
Standard Configuration GPR4850D-R01

GPM48P-A

(with Ethernet interface)

AC power distribution:

single-phase input, AC mains MCB (63A/2P);

(three phase input optional, modification would reduce 4 output MCBs)

DC power distribution:

Battery MCB 100A *2;

LVD1: 100A*1, 32A*2, 63 A*2, 16 A*4

(MCB capacity optional)

LVD2: 16 A*2, 32 A*2

(MCB capacity optional)

For more tech info, please read specifications.



3. Application



     (1) Small scale program controlled exchangers

     (3) Access network

     (4) Transmission equipment

     (5) Mobile communication

     (6) Satellite communication ground station

     (7) Microwave communication



4. Features



(1) Adoption of active power factor compensation technology with factor >0.98

(2) Wide operating range of AC input voltage: 90~290Vac

(3) Operating temperature range: -25°C~+55°C

(4) Zero current/voltage switching tech with high efficiency ≥91%

(5) Lifecycle of battery prolonged by perfect battery management, including electrical charge/discharge management, battery temperature compensation, battery capacity test, reversal connection proof protection, low voltage protection etc

(6) Hot-swappable

(7) Input over/under voltage protection

(8) Output over voltage protection

(9) Output over current protection
(10) Output short circuit protection
(11) Auto current sharing, parallel output
(12) Embedded mounting
(13) Multiple communication ports, easy for networking and remote management

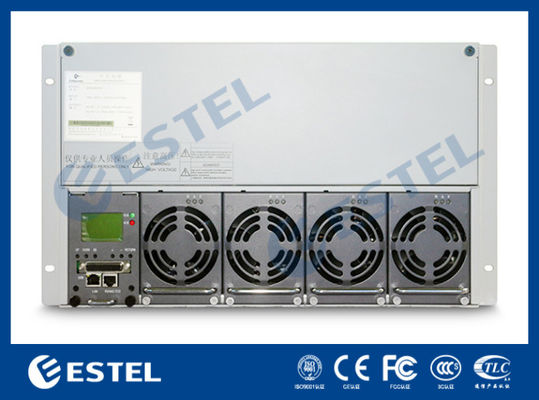

5. Front Power Distribution Of Telecom Rectifier System GPE48200N

Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V 0

6. Front Power Distribution Of Telecom Rectifier System GPE48200N



Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V 1

7. Packing and Shipping

Professional 200A Telecom Rectifier System , Telecom Rectifier Module System DC48V 2

Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
