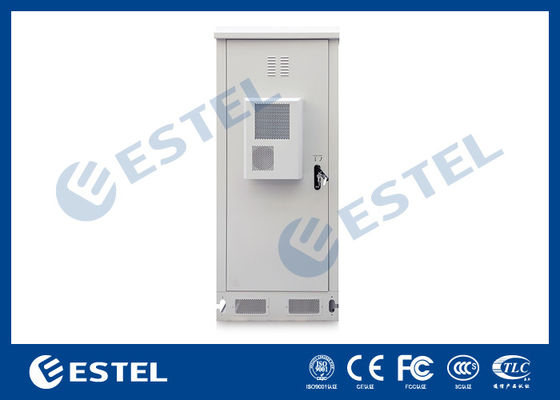

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating
Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating

Large Image :  Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
Product Name: Outdoor Battery Cabinet Application: Outdoor Telecom Base Station
Material: Galvanized Steel Heat Insulation: PEF
Color: Grey (support Custom Made) Coating: Anti-corrosion Outdoor Powder Coating
Cabinet Lock: Anti-theft Three Point Lock Protection Level: IP55
High Light:

telecom outdoor cabinet

,

outdoor server cabinet



Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating



Quick Details:


Place of Origin: Shenzhen, China (Mainland) External Size: H×W×D 2000×800×800mm
Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: DDTE060 Cabinet Layout: one compartment, for installing batteries, including 3 battery shelves
Product Name: Outdoor Battery Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Inlet: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: AC220V Air Conditioner and DC48V Fans
Coating: anti-corrosion outdoor powder coating Other Cooling Options: heat exchanger, peltier air conditioner


Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case


1. Specifications
(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 2000×800×800mm
Layout 1 compartment
Equipment Installation Method Battery shelf
Door With one front door , and special lock for outdoor cabinet (support padlock)
Material Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF
Structure Welded or assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
SPD Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 (1±5%)W/m2


(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Battery Cabinet 1 Set

(1) External Dimension: H×W×D 2000×800×800mm
(2) One compartment: battery compartment
(3)With one front door , and special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

2 Air Conditioner 1 Set

Cooling capacity: 500W, AC220V, 50HZ;
Model:TC06-50JFH/01

3 Auxiliary Direct Ventilation Fan 1 PC DC48V
4 Door Sensor 1 PC for controlling LED lamp on/off
5 LED Lamp 1 PC DC48V
6 Package 1 Set Wooden Case


2. Feature

  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.


3. Applications

The DDTE060 Outdoor Telecom Enclosure is mainly used in wireless telecommunication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4.Description


The outdoor cabinet is one compartment cabinet for installing 19” telecom equipments. The cabinet includes one front door and one rear door. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.


4.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.


4.2 Cabinet Structure
The cabinet includes battery shelf. The cabinet includes one air conditioner, installed on front door.


4.3 Cabinet Door and Lock
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.


4.3.1 Door lock theft proof design
(1)Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 0




(2)Three point lock

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 1



Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 2



4.4 Grounding copper bar and cable entrance hole


(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 3



4.5 Door limit

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 4


4.6 Connection and Fastening


(1)Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2)Door hinges use inner hinge mode.



Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 5


4.7 Appearance and Surface Treatment


Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



5. Packing and Shipping

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 6

Weatherproof Battery Outdoor Electronics Cabinet Anti Corrosion Coating 7

Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
