EV Charging Station Designed with High Protection Level IP54 and Multiple Safety Protections Ensuring and Safe Operation

Large Image : EV Charging Station Designed with High Protection Level IP54 and Multiple Safety Protections Ensuring and Safe Operation

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC

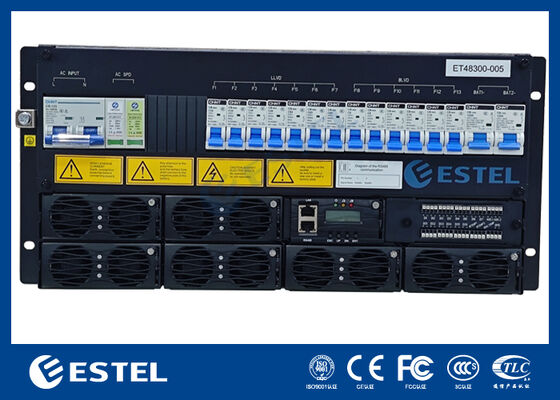

Model Number:	ET48300-005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	358-2143 usd
Packaging Details:	carton/wooden case
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20,000 sets per month

Contact Now

Detailed Product Description

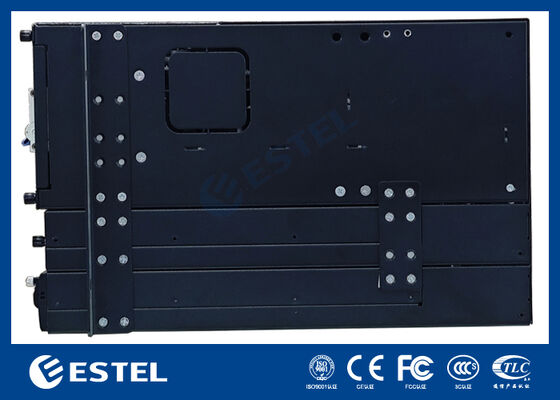

Dimension:	482.0(W)350.0(D)5U(H)	Weight:	≤25kg (without Rectifiers)
Cooling Mode:	Natural Cooling	Installation Mode:	Installed On 19-inch Rack Or Inside The Cabinet
Cabling Mode:	Top Inlet And Top Outlet	Maintenance Mode:	Front Maintenance, Support Module Grade Change
Highlight:	Safe Operation EV Charging Station , IP54 EV Charging Station , Multiple Safety Protections EV Charging Station

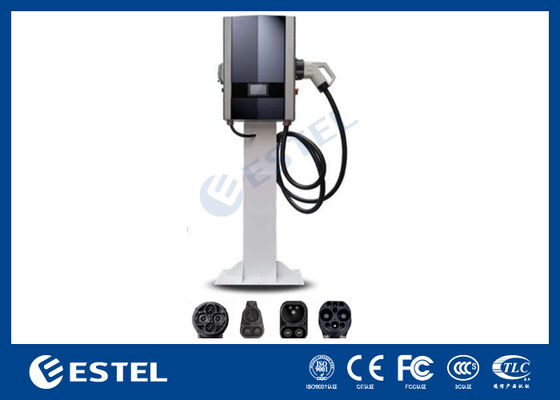

HV SERIES Wall mounted/Column DC Charger

Rich configuration

• Home version:lt can be configured with plug and charge,swipecard and password,and charge by appointment.

• Online version:swipe card, VIN code, scan code of wechat and Alipay, mobile APP, mini program, etc.

• OCPP can be configured for foreign versions.

Patent design

• Unique patented technology, which can meet the high protectionlevel for outdoor use.

• Heat dissipation more efficient and product performance is more stableand reliable.

• Fashion patented appearance design, small and thin products.

Widely used

• Can be used for home or business

• TModular charging speed,0.5~2C,ideal charging choice that takes into account charging speed and battery life.

• Can be wall hanging and column, flexible application situation.

• Simple and convenient installation

Safe and reliable

• Protection grade up tolP54, moisture-proof, water-proof condensening proof, dust proofandflameretardant.

• With over and under voltage,overload, short circuit, leakage, battery anti-reverse connection and other protection functions.

SPECIFICATION

Model	SC07750	SC15750	SC20750	SC30750	SC40750
Output Power	7KW	15KW	20KW	30KW	40KW
Input woltage	90-265V	260-475V/480V3 phase optional
InputConnection	L+N+PE	3P+N+PE
lnput Current	32A	25A	32A	45A	64A
Output Voltage	200-750V(200-1000V optional)
Output Current	20A	25A/37A	33A/50A	50A/100A	66A/120A
Frequency	50/60 Hz
Power Factor	>0.99@rated voltage
Efficiency	95%
TFT-LCDTouch Panel	4.3-inch display
Dimension(mm)	545380170	545380170		645545170	721457232
Weight	20KG	25KG	28KG	44KG	60KG
Auxiliary source	12V(24V optional)
OperatingTemperature	-20℃-50℃(Derating higher than 50℃)
Altitude	2000M
IP LEVEL	IP54
Working humidity	5%-90%RH,no condensation
lnput line length	0M(CUSTOMIZATION ACCEPTABLE)
Gun cable Length	5M(CUSTOMIZATION ACCEPTABLE)
Applicable standard	GB/T20234/EN62196/EN61851-23,JEVSG105/CHADEMO
Communication protocol	GBT27930/CHADEMO 2.0 DIN70121,0CPP 1.6 (JSON),ISO 15118
