Waterproof Three Bay Outdoor Telecom Cabinet With Fan Cooling Integrated With UPS System

Waterproof Three Bay Outdoor Telecom Cabinet With Fan Cooling Integrated With UPS System

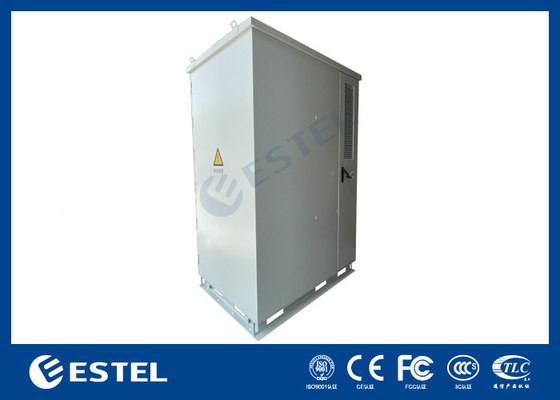

Waterproof Three Bay Outdoor Telecom Cabinet Overview
The three-bay outdoor telecom cabinet is the perfect solution for all your outdoor racking needs. Built from robust galvanized steel, it offers a secure and climate-controlled environment for sensitive electronic equipment, ensuring optimal performance even in harsh conditions.

Equipped with three sets of standard 19-inch racking rails, this cabinet is ideal for various applications. For customers seeking tailored solutions, we provide customizable options that enhance security and functionality, accommodating everything from electronic equipment to electrical load panels.

Key Features
Color: Grey
Dimensions: W × D × H 2400 × 900 × 2100 mm
Construction: Double-walled galvanized steel with heat insulation
Sun Protection: Top cover shields the cabinet from sunlight
Finish: Zinc die powder-coated for enhanced durability
Security: Features an anti-theft three-point locking system
Cable Management: Individual entry holes at the bottom for easy cable access
Racking: Three sets of adjustable 19” racking rails for flexible equipment placement
Cooling System: Multiple fans ensure efficient cooling
Optional Sensors: Includes door, water, smoke, temperature, and humidity sensors
Fire Safety: Flame retardant, compliant with GB5169.7 test A
Mounting: Designed for floor mounting
Protection Rating: IP55 for dust and water resistance
Packaging: Sturdy wooden case with pallets for safe transport

Applications
Telecommunications
Base Stations
Trailer-Based Communication Systems
Fiber Optics
Military Communications
Customization and Flexibility

Our outdoor rack enclosures are designed with versatility in mind:

Material Options: Choose from galvanized steel, sandwich panels, stainless steel (SS304), or aluminum for durability.
Bays: Configurable to support 1 to 4 compartments for multi-device setups.

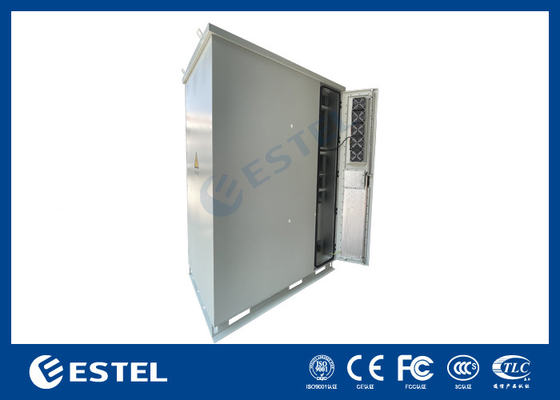

Access Points: Front and rear access doors facilitate easy equipment servicing and cable routing.
Side Doors: Optional side doors for additional access.
Custom Colors: Standard RAL7035 color, with other colors available upon request.
Thermal Management: A variety of cooling solutions to meet demanding thermal requirements.
Configuration Options: Includes power distribution units (PDU), rectifiers, and integrated AC-DC systems.
Branding: Options for silk screening logos and eco-friendly finishes.
Environmental Monitoring: Optional sensors for enhanced monitoring capabilities.
Remote Monitoring: Supports protocols like RS232, RS485, and SNMP for remote management.

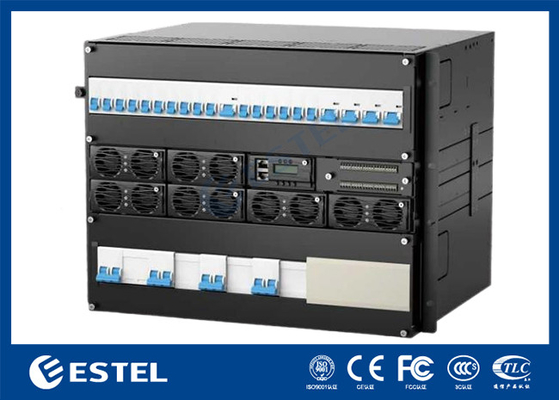

Integrated with UPS system- We provide sub-racks with the height from 1U to 23U and the width from 19" to 23".

The Waterproof Three Bay Outdoor Telecom Cabinet is a reliable and adaptable solution for protecting your equipment from environmental challenges. With its robust design and customizable features, it meets the diverse needs of telecommunications and outdoor applications. Choose our cabinet for a secure, efficient, and high-quality storage solution.
