Product Details:
Payment & Shipping Terms:
|
| Model Number: | ET48150-003 | Rated Power: | 3000W |
|---|---|---|---|
| Input Mode: | 220/380VAC Three-phase | Application: | Industrial Equipment |
| Input Capacity: | 1×63A/2P | Input Frequency: | 45~65Hz, Rated Value: 50Hz/60Hz |
| Output Voltage: | -43~-58VDC, Rated Value: -53.5VDC | Maximum Capacity: | 9KW |
| Efficiency: | ＞96% | Communication Port: | RS485, SNMP |
| Highlight: | Embedded Power System 9KW,Telecom Rectifier 48V,48VDC Rectifier For Telecom |
||
ET48150-003 Embedded Power System For Telecom Backup 9KW 48VDC Rectifier
1, ET48150-003 Rectifier For Telecom Introduction
ET48150-003 consists as below :
Rectifier module: 3pcs
Battery breakers: 2×125A/1P
Load breakers:
LVD1: 2*80A+2*63A
LVD2: 1*63A+4*32A+2*16A
Monitoring Controller Module*1
SNMP communication port
2, Embedded Power System Description:
ET48150-003 sub-rack power supply, 5U height compact design to meet critical application needs of fiber and microwave transmission, access
device, switch. The system maximum power is 9KW, with AC/battery/load MCBs. The cables are front accessing with MCB and busbar.
Standard 19-inch width which has the advantage of wide use
5U height compact design, space and installation cost can be saved
Front operation and cable accessing, good-looking and safe maintenance
Perfect battery management, prolongs the life of the battery well provide various communication ports, RS485, internet port, dry contacts, etc.
which enables flexible networking and remote monitoring
Rectifier and controller are hot pluggable, easy and quick on-line maintenance
Wide input voltage range(85-300Vac) the power grid is adaptable
3, 9KW 48VDC Rectifier Quick Details:
| Place of Origin: Shenzhen, China (Mainland) |
220/380VAC three-phase
|
| Brand Name: ESTEL | Output Voltage:
-43~-58VDC, rated value: -53.5VDC
|
| Model Number: ET48150-003 | Rectifier Module Output Power: 9KW |
| Product Name: Industrial Power Supplies | Input Frequency 45~65Hz, rated value: 50Hz/60Hz |
| Certification: ISO9001, CE, 3C, FCC, TLC |
Battery breakers: 2×125A/1P
|
| Application: Industrial Equipment | Power Factor: >0.96 |
4, Telecom Backup System Digram

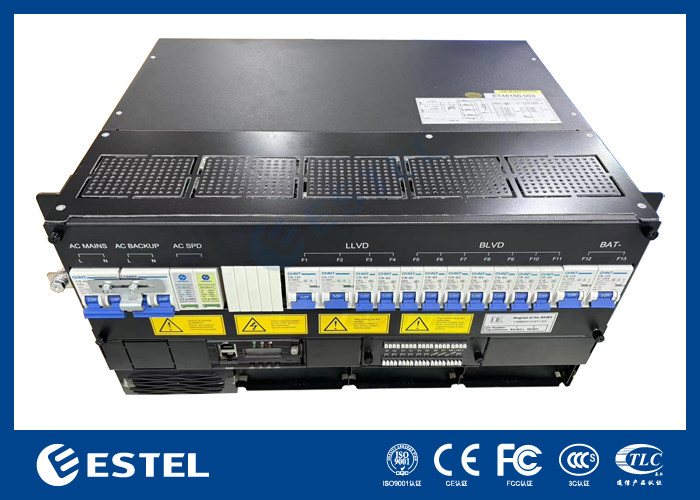

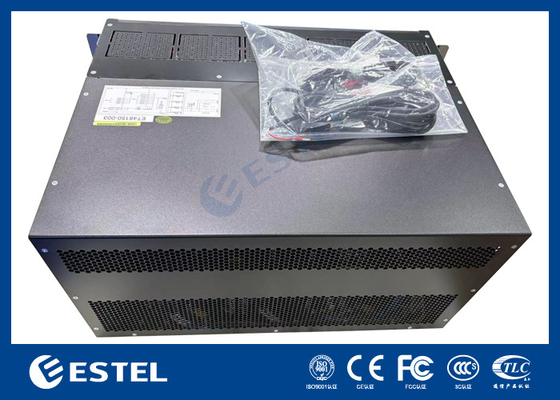

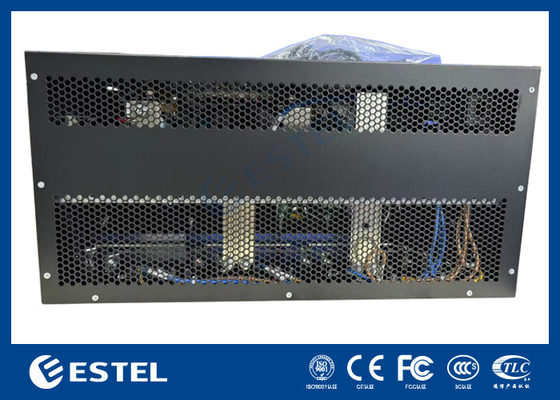

5, ET48150-003 Rectifier Pictures
6. Power System Application:
(1) Integration access
(2) Indoor distribution and extension system
(3) Mobile station and extension coverage system
(4) WLAN
(5) Satellite communication ground station and microwave communication station
(6) Weak current distribution room
(7) Other AC/DC uninterruptible power system
