Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor

Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor
Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor

Large Image :  Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: 8080230A-45U
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Cabinet Size: W*D*H 800*800*2300mm Material: Galvanized Steel, Double Wall
User Space: 19" Rack, 45U IP Grade: IP55
Cooling System: Air Conditioner Door Lock: Outdoor Anti-theft Three Point Lock
Cable Entry: Gland On The Bottom Coating: RAL7035
Maintenance: One Front Door, Front Maintaenance Insulation: 20mm PEF
High Light:

IP55 Outdoor Telecom Cabinet

,

Double Wall Outdoor Telecom Cabinet

,

45U Outdoor Telecom Enclosure

Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor



1. Outdoor Telecom Cabinet Description

This outdoor telecom cabinet is designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anti-corrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is 2300mm High and 800mm Wide and 800mm Deep, equipped with sensor system, power distribution unit system, temperature control system, lighting system, and user equipment installation space.



2. Outdoor Cabinet With Air Conditioner Features

2.1 The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment.

2.2 The cabinet cooling uses DC48V 1500W compressor inverter air conditioner.

2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.

2.4 Including one smoke sensor, used for smoke alarm.

2.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.

2.6 All the screws&nuts are stainless steel material. Enhanced the corrosion resistance of the cabinet.



3. IP55 Double Wall Cabinet Technical Specs



Item Type Technical Parameter
Structure Size

External Size: W*D*H 800*800*2300mm

Layout 1 compartment
Equipment Installation Method 19” rack, 45U
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, double wall with 20mm insulation
Ingress Protection IP55
Surface treatment Powder coating
Color Grey RAL 7035
Temperature Control Cooling DC48V 1500W Air Conditioner
Lighting LED lamp DC48V LED lamps
Power Distribution Power Distribution Unit

125A 6Way

UK plug

Support custom

Temperature Operating temperature -40°C ~ + 75°C
Storage temperature -50°C ~ + 70°C
Transport temperature -50°C ~ + 70°C
Humidity Relative Humidity (RH) 5%~99%
Air pressure Air pressure 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
Other characteristics Flame retardance Comply with GB5169.7 test A
Withstand voltage ≥3000V(DC)/1min
Insulation resistance ≥2×104M/500V(DC)






4. Cabinet Details



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 0

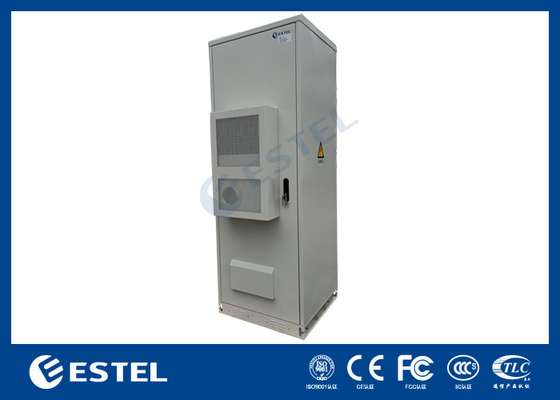

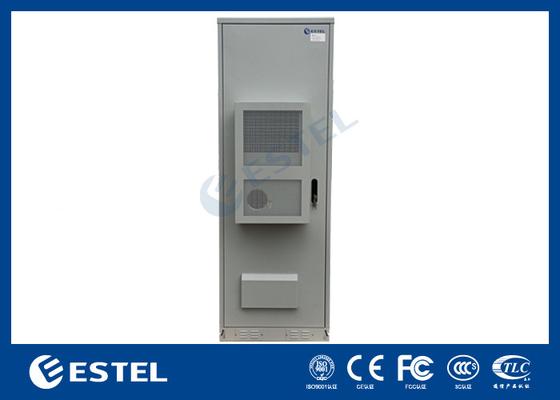

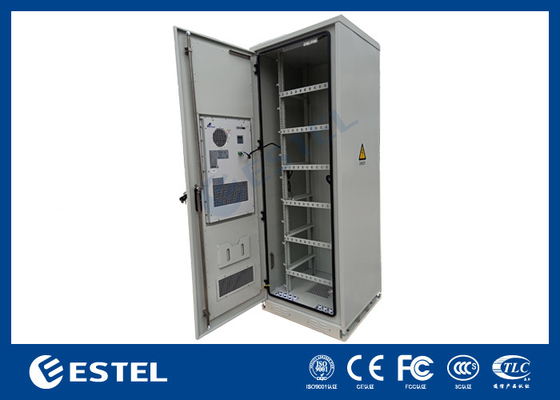

5. Telcom Cabinet Picture



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 1



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 2



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 3







6. Our Factory Show



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 4



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 5





7. Company Qualification Certificate

Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 6

Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 7





8. Some of our customers



Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor 8
