19" 5u Subrack 220V AC To 48V DC Rectifier System Switch Mode Power Supply For Telecom

19" 5u Subrack 220V AC to 48V DC Rectifier System Switch Mode Power Supply for Telecom

1. 48V DC Rectifier System Product Overview

48V DC Rectifier System supply 5U height compact design to meet critic

alapplication needs of fiber and microwave transmission, access device,

switch. The system maximum power is 300A, with AC/battery/load MCBs.

The cables are front accessing with MCB and busbar

1. Standard 19-inch width which has the advantage of wide use
2. 5U height compact design, space and installation cost can be saved
3. Front operation and cable accessing, good-looking and safe maintenance
4. Perfect battery management, prolongs the life of the battery well provide,various communication ports, RS485, internet port, dry contacts, etc.which enables flexible networking and remote monitoring
5. Rectifier and controller are hot pluggable, easy and quick on-line maintenance
6. Wide input voltage range(85-300Vac) the power grid is adaptable

2. ET48300-005 consists of distribution unit, rectifier module, conversion module, monitoring module.

The standard as table below:

3. 48V DC Rectifier System Quick Details:

Product Feature

1) The rectifier module adopts active power factor compensation technology, and the power factor value reaches 0.99.

2) The normal working range of AC input voltage is wide to 90～290V, Single Phase, (323V~480V ac, 3 Phase).

3) The rectifier module adopts full-bridge soft-switching technology, and the efficiency is up to 96%.

4) Smart battery management. There are load power-off and battery low-voltage protection (LVLD+LVBD) and secondary power-off (secondary power switch) functions, which can realize functions such as temperature compensation, automatic equalization and floating charge control, automatic voltage regulation, battery capacity calculation, and online battery testing.

5) The rectifier module adopts non-damage hot-swappable technology, plug and play, and the replacement time is less than 1min.

6) Networked design, providing multiple communication interfaces (such as RS485, dry contact), flexible networking, real-limited local and remote monitoring, unattended.

7) Lightning protection design for AC and DC sides, suitable for thunderstorm areas.

8) Support fault protection and fault alarm functions.

9) Friendly operation and maintenance can be installed against the wall, effectively saving space.

10) Ultra low radiation. Adopt advanced electromagnetic compatibility design.

4. System Logic Configuration

A Rectifier system converts alternating current (AC) to direct current (DC) and provides the power necessary to charge batteries. With a focus on continuously improving the total cost of ownership, ESTEL’s rectifiers, combined with advanced control and monitoring features, help to reduce both capital and operational expenditure. Our rectifier systems boast excellent power density while fulfilling space and weight requirements. They leave plenty of room for other equipment and create savings in packaging and transportation costs. In addition, their high efficiency lowers total energy consumption and reduces carbon footprint.

The embedded communication power supply system (Rectifier System) is suitable for small program-controlled switches, access networks, transmission equipment, mobile communications, satellite communications ground stations, microwave communications power supply, and can also be used for power supply for other communications equipment. Under normal circumstances, various parameters of the rectifier module and power distribution unit are controlled by the monitoring module, and work according to their predetermined parameters or user commands. If the mains fails, the system will be powered by the battery at this time. As the battery discharges, the battery terminal voltage begins to drop. When the battery voltage is lower than the 46V dc (Alarm Value can be settable) battery low-voltage alarm point from monitor, the monitoring module reports an alarm. Signal, directly close the load output, the whole machine does not work. When the external mains power is restored, the system resumes normal operation.

5. Rectifier system pictures:

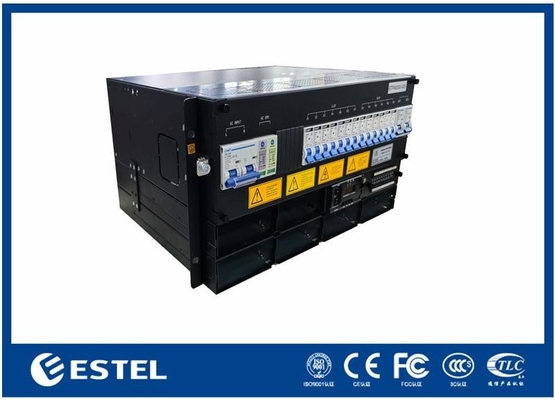

Front Panel:

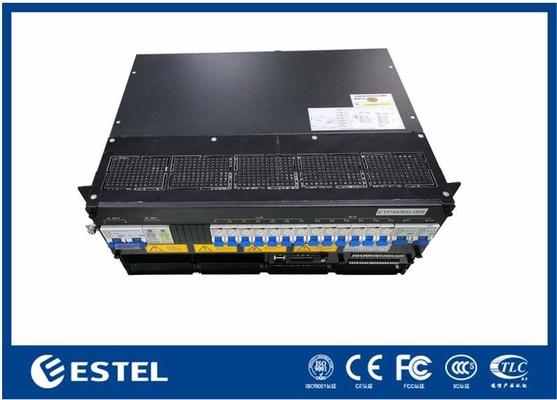

Back Panel:

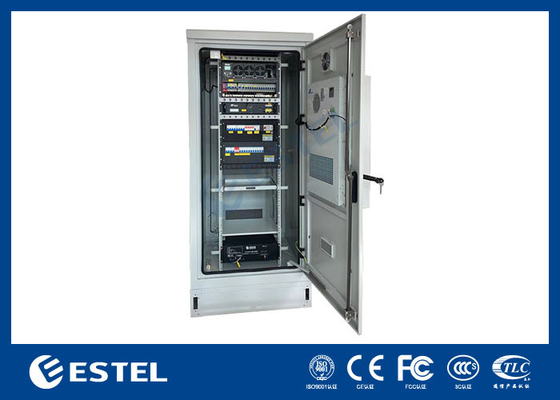

19 inch mounted on the cabinet

Packaging Pictures:
