| Name: | Rack Mount Telecom Rectifier | Rectifier Module: | 3KW×14pcs |
|---|---|---|---|
| Solar Module: | 3KW×6pcs | Controller: | Ethernet , SNMP, ModBus And RS485 Communication |
| Installation Mode: | 19 Inch Rack | Full Capacity: | 700A |
| Input Voltage: | 380VAC Three Phase | Output Voltage: | -48VDC (-42 To -58VDC) |
| Module: | Hot-swappable | Battery Management: | Support |
| Output Voltage: | DC48V | Application: | Telecom,utility,Industrial Automation,Electric Power Transmission,BTS |
| Rectifier Module: | 48VDC/50A*20PCS | ||
| High Light: | 48v Telecom Power Supply,Rack Mounted Rectifier System For Telecom,Telecom Power Supply With Battery Management |
||
48v Telecom Power Supply Rack Mounted Rectifier System For Telecom Powershelves
1. 48v Telecom Power Supply Overview
ESTEL Powershelves ET48700P300 are modular, fault-tolerant, compact DC power systems made up of switched-mode rectifier (SMR) modules. It comes in a wide selection of DC output voltages .These compact systems have been proven in many critical & non-critical applications including switch-tripping in substations, defence, scientific instruments, and more. Suitable for 19” racks of 400mm depth or greater.
2. 48v Telecom Power Supply Parameter
| Model | ET48700P300 | |
| System | Dimension(mm) | 482.6(W)x350.6(D)x15U(H) |
| Weight | ≤ 50kg(without rectifier module) | |
| Cooling mode | Forced air cooling | |
| Installation mode | Installed on 19-inch rack or inside the cabinet | |
| IP Grade | IP20 | |
| AC Distribution | Input voltage |
380VAC, three phase |
| Input capacity | 1x125A/4P | |
| Input frequency | 45~65Hz, rated 50/60Hz | |
| AC SPD | 20kA/40kA, 8/20μs | |
| PV Input capacity | 6x63A/2P | |
|
DC Distribution |
Output voltage | -42~-58VDC, rated value: -53.5VDC |
| Maximum capacity | 42kW(14x3000W rectifier module) | |
| Battery breakers |
3x125A/3P |
|
| Load breakers |
LLVD: 2x125A/1P, 2x63A/1P BLVD: 2x125A/1P, 2x63A/1P |
|
| DC SPD | 10kA/20kA, 8/20μs(designed inside) | |
| PV Module | Input voltage |
120VDC to 425VDC, rated value: 340VDC |
| Efficiency | ≥96% | |
| Output power |
3000W(200~425VDC) |
|
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |
| Cooling mode | Forced cooling with fan | |
| Rectifier Module | Input voltage | 85VAC-300VAC, rated value: 220VAC |
| Efficiency | ≥96% | |
| Rated power | 3000W(176～300VAC ) | |
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |
| Cooling mode | Forced cooling with fan | |
| Controller | Signal input | 3 AI(2 battery temp., 1 ambient temp) ,7 DI(SPD, 6 common DI) |
| Alarm output | 6 dry contact | |
| Communication port | RS485/LAN Ethernet/SNMP | |
| Display mode | LCD | |
|
Environment |
Operating temperature |
-40℃~+65℃ |
| Storage temperature | -40℃~+70℃ | |
| Operating humidity | 5%~95%(non-condensing) | |
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) | |
3. ESTEL 48v Telecom Power Supply
A rectifier converts alternating current (AC) to direct current (DC) and provides the power necessary to charge batteries. With a focus on continuously improving the total cost of ownership, ESTEL’s rectifiers, combined with advanced control and monitoring features, help reduce both capital and operational expenditure. Our rectifiers boast excellent power density while fulfilling space and weight requirements. They leave plenty of room for other equipment and create savings in packaging and transportation costs. In addition, their high efficiency lowers total energy consumption and reduces carbon footprint.
ESTEL’s rectifiers are easy to install, as their connectors are located at the rear and are hot-pluggable. Fan cooling with speed control renders operating almost silent. In general the rectifiers include a wide AC input voltage range, protection against AC overvoltage and optional protection against loss of neutral, which make this solution very reliable even in the regions with AC utility network problems.
4. Product Pictures
Load/battery breakers:

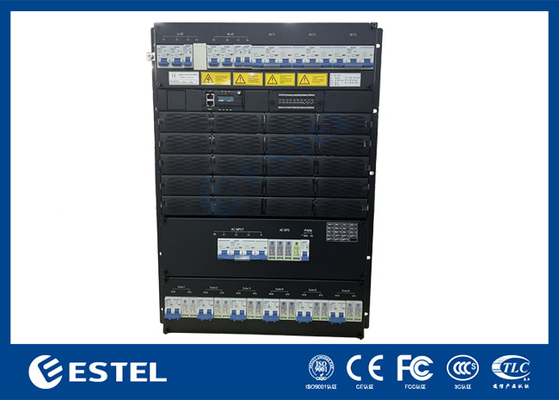

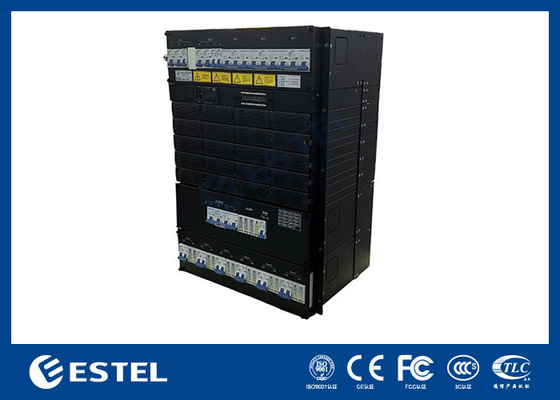

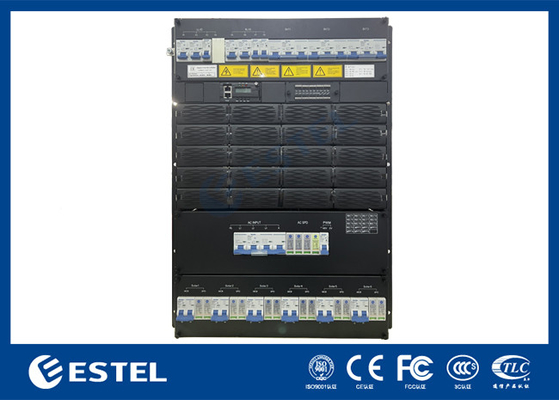

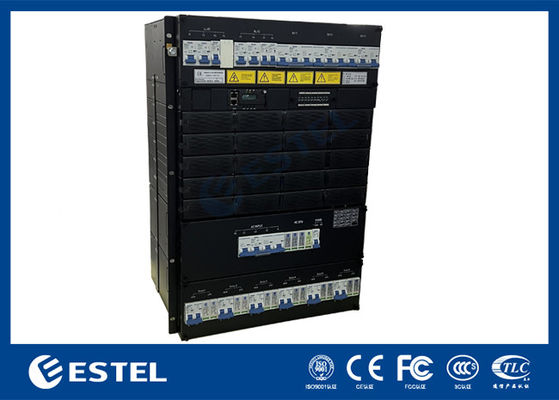

Telecom rectifier system pictures:
Rack mounted pictures for reference:
4. ESTEL 48v Telecom Power Supply Features
5. ESTEL 48v Telecom Power Supply Configuration Table
| Item | Configurations |
| Subrack |
3U AC input power distribution space 3U DC input power distribution space 3U DC output power distribution space 6U Module installation and monitor unit space |
| The power distribution unit |
AC/DC input power distribution: AC input MCB, DC input MCB DC power distribution: battery low voltage disconnection (BLVD) route, load low voltage disconnection (LLVD) route, and battery route |
| Monitor unit | MC2600 |
| Rectifier module | A maximum of fourteen 3000W |
| Solar module | A maximum of six 3000W |
| AC SPD | Class C |
| DC SPD | PV Input:Class C |
| 48V Output:Class D |
6. Controller-MC2600 (Monitoring Module)
The MC2600 front panel
(1) LAN port (2) RS485 port (3) Run indicator (4) Minor alarm indicator
(5) Major alarm indicator (6) Handle (7) Buttons
Table for controller button description
| Button | Description | |
| ESC |
Returns to the previous menu without saving the settings. |
Press the ESC and ENT button at the same time within a short period of time can restart the controller. |
|
ENT.
|
Ø Enters the main menu from the standby screen. Ø Enters a submenu from the main menu. Ø Saves the menu settings. |
|
| UP |
Turns to the previous menu or sets parameter values. When setting parameter values, you can hold down this button to quickly adjust values. |
When the parameter value is set by multiple string types, press up or down button to change each value. After setting the value, press the confirm button to move the cursor back automatically. |
| DN. |
Turns to the next menu or sets parameter values.When setting parameter values, you can hold down this button to quickly adjust values. |
|
Describes the indicator on the controller panel is shown in table below
| Type | Color | State | Instructions |
| Run indicator | Green | Flickering | Controller is running properly |
| Off | Controller is fault or has no DC input | ||
| Minor Alarm | Yellow | Normally on | The controller generates a minor alarm |
| Off | The controller does not generate any minor alarms | ||
| Major alarm | Red | Normally on | The controller generates a major alarm |
| Off | The controller does not generate any major alarms |
The controller provides two communication ports
The definition of RS485 communication port is shown in below table
| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Signal name | RS485+ | - | RS485- | - | - | - | - | - |
The LAN Ethernet port interface definition is shown in Table
| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Signal name | TX+ | TX- | RX+ | - | - | RX- | - | - |
7. DI/DO Interface
The DI/DO interface board front panel
Digital input is submenu of parameter setting menu, which is mainly used for the operator to configure the input normal state of 8 digital switches in the system.
Table - Relay input parameter setting
| Digital No. | Digital name | DI Normal | Description |
| DI1 | HEX Alarm | NO | It is normal when opened; and the alarm occurs when closed. |
| DI2 |
PWC Door Alarm |
NC | It is normal when opened; and the alarm occurs when closed. |
| DI3 | BT Alarm | NO | It is normal when opened; and the alarm occurs when closed. |
| DI4 | BC Alarm | NO | It is normal when opened; and the alarm occurs when closed. |
| DI5 | Digital5 Alarm | NO | It is normal when opened; and the alarm occurs when closed. |
| DI6 | Genset on Alarm | NO | It is normal when opened; and the alarm occurs when closed. |
|
DI7 |
DC SPD Alarm |
NC |
It is normal when opened; and the alarm occurs when closed. |
Relay output is submenu of parameter setting menu, which is mainly used for the operator to configure the output normal state of 8 relays in the system.
Table - Relay output parameter setting
| Digital No. | Digital Name | Alarm code | Description |
| DO1 | Relay output 1 | NC | Closed when normal,opened when associated alarm occurs. |
| DO2 | Relay output 2 | NC | Closed when normal,opened when associated alarm occurs. |
| DO3 | Relay output 3 | NC | Closed when normal,opened when associated alarm occurs. |
| DO4 | Relay output 4 | NC | Closed when normal,opened when associated alarm occurs. |
| DO5 | Relay output 5 | NC | Closed when normal,opened when associated alarm occurs. |
| DO6 | Relay output 6 | NC | Closed when normal,opened when associated alarm occurs. |
In addition, the product provides 6 other ports.
Table - Other intput parameter setting
| Parameter name | Setting description |
| BTEMP 1 | Battery sensor1 port |
| BTEMP 2 | Battery sensor2 port |
| ENV_TEMP | Enveropment sensor port |
| 12V +/- | 12V power supply is provided |
| RS485 | RS485 port, reserved interface, no protocol definition |
| OIL+/- | Connect the oil level sensor |
8. Subrack Installation
Install the subrack to the 19-inch rack, as shown in Figure below.
Ø Step 1,Remove the plug from the package.
Ø Step 2,Push the plug into the 19-inch rack
Ø Step 3,Install the fixed screw (if the mounting hole of the plug frame ear does not correspond to the position of the floating nut of the frame,
it needs to be adjusted according to the actual installation).
Install Rectifier/Solar module
Ø Step 1, Take out the module from the package.
Ø Step 2, Hold the module handle on the front panel and put the module onto the slot.
Ø Step 3, Push the module slowly to the front panel of the module and flush with the power
distribution panel.
Ø Step 4, Tighten the fixing screw on the module panel so that the module does not come off.
