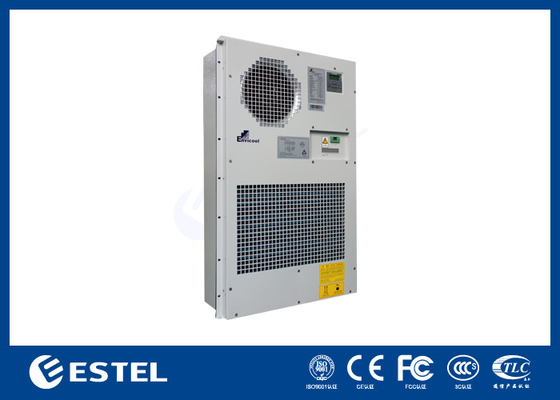

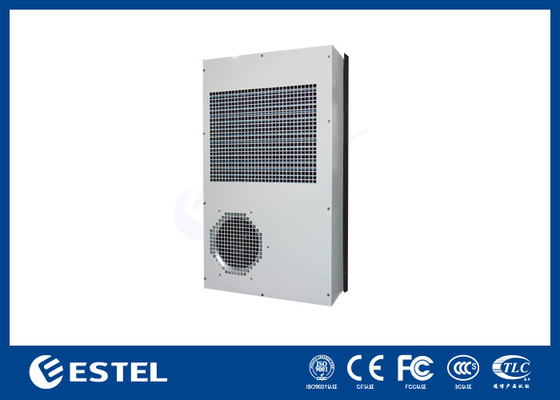

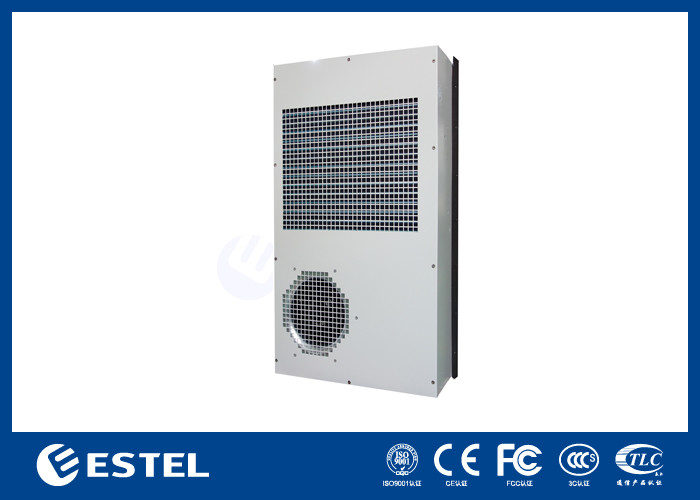

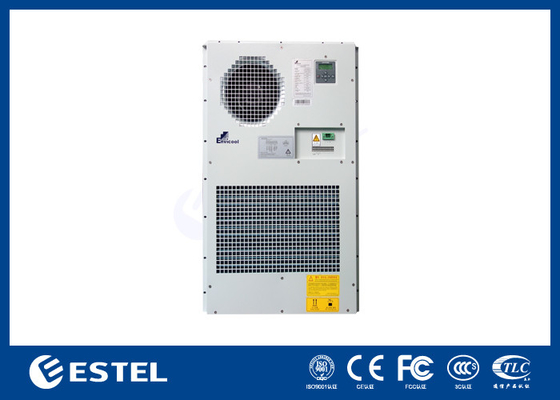

220VAC 2000W Outdoor Cabinet Air Conditioner R134a Refrigerant IP55

2000W Cooling Capacity Outdoor Cabinet Air Conditioner 220VAC Power Supply With 2000W Heating Capacity

1. Air Conditioner Instructions

The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in
the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the
environment temperature and which should be isolated internally and externally completely. This product
has multiple functions, high reliability, and has the feature that it can start to work without complex
debugging after powering.

The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange
by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in
cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external
cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside
after heat exchange.

2. Product Parameters

4. Installation diagram
