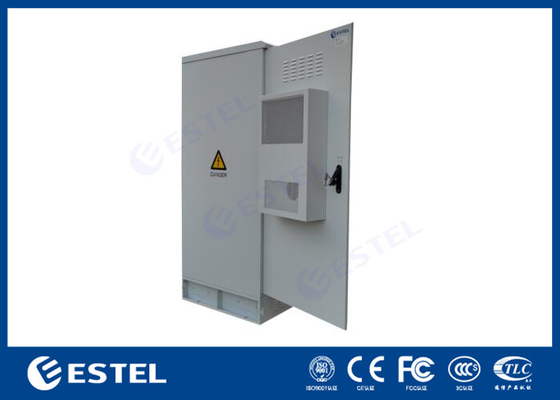

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack
20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack

Large Image :  20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Estel
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET131722909021020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, MoneyGram, T/T
Supply Ability: 3,000 sets per month
Detailed Product Description
Product Name: 20U Battery Cabinet External Dimension: H2100mm×W900mm×D900mm
Material: High Quality Galvanized Steel Type: Telecom Outdoor Cabinet
Walls: Galvanized Steel, 1.5mm Thickness, Single Wall Insulation Material: 20mm PEF
Protect: IP55 Compartment: 1 Compartment
Cooling System: Air Conditioner Door: With One Front Door
Cooling: Air Conditioner Color: Customized
Form Of Sale: OEM/ODM
High Light:

Integrated Control Telecom Enclosure

,

front door Telecom Enclosure

,

Battery Power Telecom Cabinet

20U Battery Power Integrated Control Cabinet 19 Inch Rack Telecom Enclosure



1.Battery cabinet Introduction

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.This series cabinet is 2100mm High and 900mm Wide and 900mm Deep. it can integrated various types of equipments,such as power distribution unit,enverionment monitoring unit,and etc.The cooling of the cabinet is fan,which is installed on the front door of the cabinet. It can make sure the temperature stable for the equipment operating. The cabinet is configured with fully locking doors to both front and rear faces allowing for access from both sides of the electrical equipment being integrated.



2.Battery cabinet Features

-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.

-Made of heavy gauge galvanized material.

-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

-Standard 19 inch mounting posts.comply with IEC60297.

-Doors secured with steel dead locking system lock (support PADLOCK)

-It is installed in the ground root or above ground column base system by "direct burying"

-Cable entry is via the base as standard with side or roof entry available upon request.


3. Cabinet Instructions

For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.



This battery cabinet is 2100mm High and 900mm Wide and 900mmDeep. It comes with 2 battery layers . The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.



4.ET131722909021020Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET131722909021020
Protection Level IP55
External Dimension H2100mm×W900mm×D900mm ( can be customized)
Internal Dimension 19 inch rail,20U,two layer battery rack below
Material Galvanized steel, 1.5mm thickness, single wall. Thickness of bearing parts: 2.0mm
Insulation PEF (optional)
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted,Roof mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door, front maintenance
Cooling Options AC air conditioner Fan
Cooling Capacity 1500W 180CFM
Input Voltage 220VAC 50HZ 48VDC
Communication RS485 /
Power Distribution Unit B Grade lightning Proof
AC Intput 63A/2P ×1(optional)
AC Output 16A/1P×4 (optional)
DC Output 16A/1P×4. (optional)
Temperature Controller 48V fan temperature controller
Others 48VDC LED lamp for illumination
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters














5.Cabinet Diagram

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 0



















6.Cabinet Details

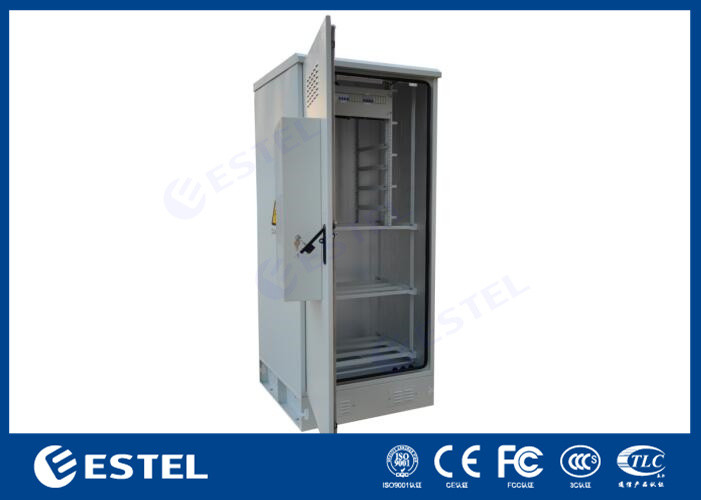

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 1

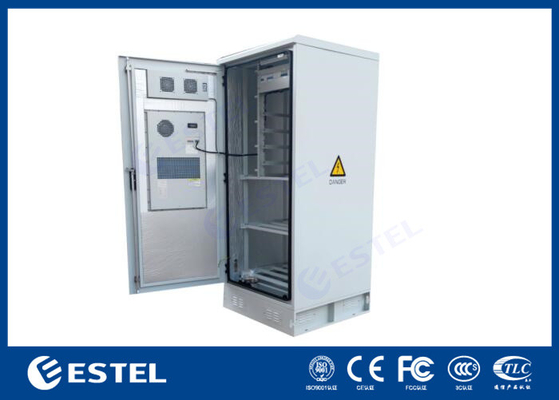

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 2

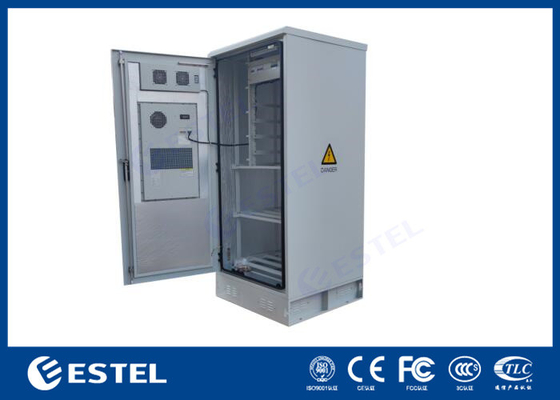

20U Battery Power Integrated Control Telecom Enclosure Cabinet 19 Inch Rack 3



7.Various cooling system for different type of battery

  • Natural ventilation cooling system
  • Air conditioner cooling system
  • Heat exchanger cooling system
  • Fan cooling system
  • TEC cooling system
