Anti Corrosion IP55 Weatherproof Telecom Enclosure 19inch 40U One Compartment With PDU
Product Details
Anti Corrosion Telecom Enclosure
,Weatherproof Telecom Enclosure
,Telecom Enclosure With PDU
19inch 40U One compartment two doors Anti corrosion IP55 Weatherproof Telecom Enclosure with Power Distribution Unit
1. Cabinet Structure
(1) External Dimension W×D×H 900×900×2300mm
(2) One compartment;
(3) totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
2. Weatherproof Telecom Cabinet Features
- Material: good quality galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥400kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2300mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). | |
| Material | Galvanized steel, double wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1)External Dimension: W×D×H 900×900×2300mm (2) One compartment (3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. |
| 2 | Air Conditioner | 2 | PC |
Cooling capacity: 2000W. Power Supply: AC220V, 50Hz. One installed on front door, the other on back door. |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | LED Lamp | 2 | PC | DC48V |
| 5 | LED Lamp Switch | 2 | PC | One for controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 7 | Package | 1 | PC | Wooden Case |

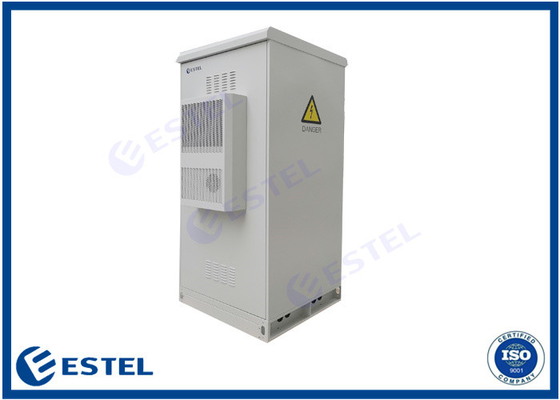

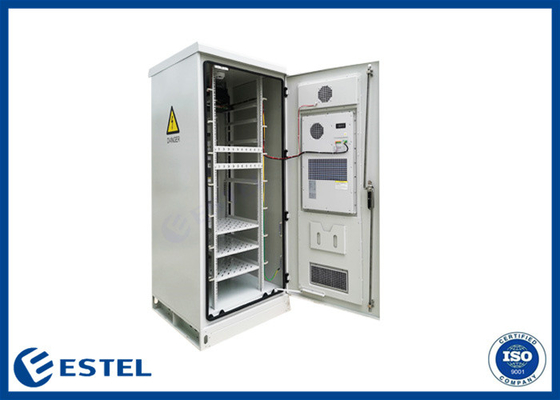

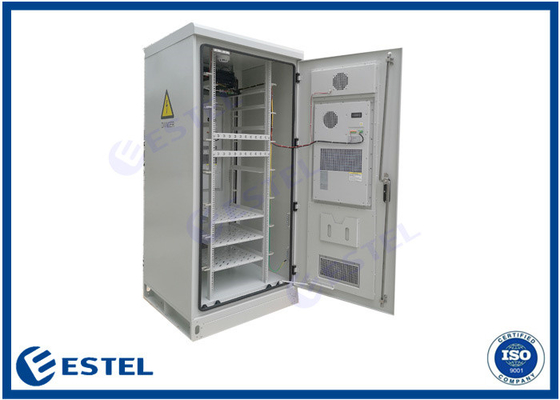

5. Cabinet Pictures
6. LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
7. Connection and Fastening
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.inside installation,inside fixing, no outer screws and embedded cabinet door, these design can protect cabinet against the theft and water access. Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
8. Cooling
Air conditioner
Cooling capacity: 2000W.
Power Supply: AC220V, 50Hz.
One installed on front door, the other on back door.
-
