CE Outdoor Electrical Enclosure 19 Inch Rail 33U Battery Cabinet With Customized PDU

Outdoor Electrical Enclosure 19 Inch Rail 33U Battery Cabinet With Customized PDU





1, Description Of Outdoor Electrical Enclosure


Electrical Enclosure is designed for storing electrical components. It is also ideal for industrial application to store large number of components. Electrical enclosure is also applicable on street lighting, solar power and traffic control. Electrical enclosure is a multi-functional enclosure. It is ideal application for outdoor, indoor and small building.Our electrical enclosure is also suitable for installations where space is limited. Moreover, electrical enclosure is perfect for distribution of small UPS application, and switches. It also stores power distribution units and motor control centers as well. Estel will let you pick the most suitable modular electrical enclosure according to your needs.

2, Selling points and Feature Of Outdoor Electrical Enclosure
>>> Dust and debris: Our products keep dust and foreign objects from interfering with your critical electrical systems, helping you avoid damage and interruptions.
>>> Moisture and corrosion: All of our telecom cabinets stop the rain, sleet, snow and ice from getting in, eliminating issues and losses caused by corrosion.
>>> Unauthorized access: These cabinets are durable and lockable for reliable protection against equipment theft, vandalism and access by unauthorized personnel.


3.Cabinet Technical Parameter







4.Cabinet Protection Level Introduction:

IP54/IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available

IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

5.Cabinet feature:

The outdoor telecom cabinet ET1117228013022133 offers standard 19” racking rails, is a new design for telecom projects and surveillance projects., an Outdoor cabinet is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.


6.Cabinet Advantages:

High integrated
(1)High compatibility, high integration
Supporting multiple equipments, good appearance
(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
One compartment/two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof

7.Cabinet Diagram:



8.Cabinet Mounting Type

l · Wall mounting type

l · Pole mounting type

l · Floor standing by base

9.Grounding Protection

The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar

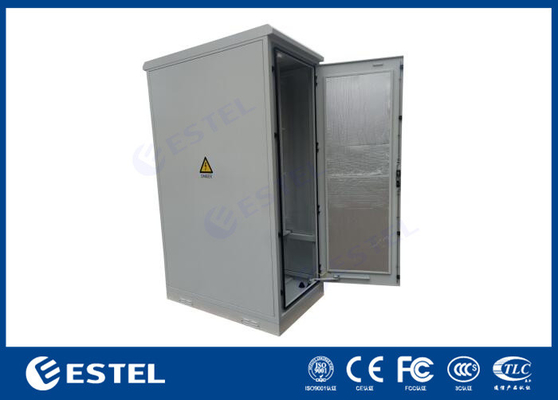

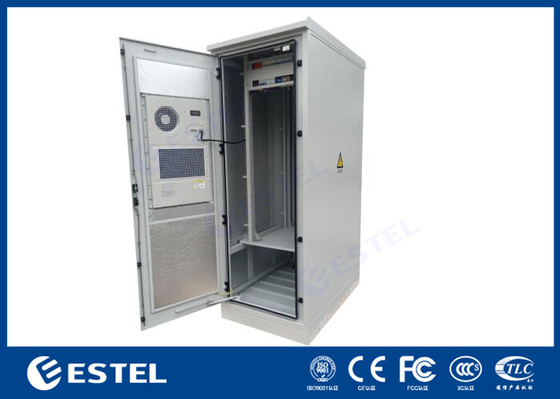

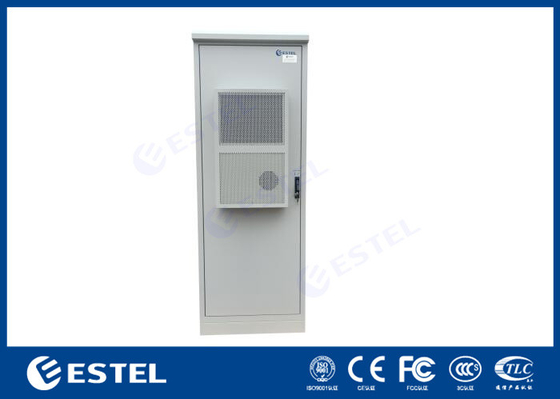

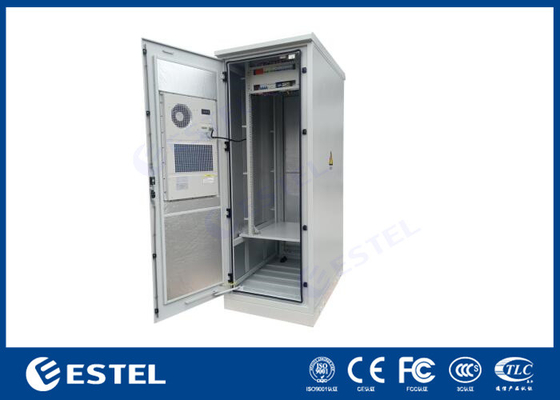

10.Cabinet pictures:
