23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution

23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution
23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution 23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution 23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution

Large Image :  23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575131-EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
External Dimention: 1310mm×750mm×750mm(H×W×D) Protection Level: IP65
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Battery Installation: 23U 19 Inch Rack
Mounting Type: Floor Mount Cooling System: 2 DC48V Fan, Including One Temperature Adjustable Controller
Color: Outdoor Anticorrosion Powder Coating RAL7035 Material: High Quality Galvanized Steel Plate
High Light:

23U Outdoor Battery Enclosure

,

IP65 Outdoor Battery Enclosure

,

23U Lithium Ion Battery Cabinet

23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution



IP65 23U 19 Inch Outdoor Battery Enclosure Lithium-Ion Battery Cabinet With Power Distribution



Application



Outdoor telecommunication cabinet is widely used in the industries of power and energy, communication, broadcasting, traffic, climate and advertising and so on.

Waterproof outdoor telecommunication cabinet is composed of outer metal enclosure or rack and inner base station equipment or power equipment or temperature control equipment or transmission equipment or other assorted equipment.



Description



This cabinet can be used to accommodate lithium-ion batteries. Protection grade up to IP65. Dustproof and waterproof, suitable for outdoor environment. Cooling by fan.



Feature



●Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

●High-performance cooling solution, fan (other options: air conditioner and heat exchanger)

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Professional outdoor anti-corrosion powder coating, strong weather resistance

● All screws are stainless steel, high corrosion resistant.



Technical Parameter





Configuration Item Technical Parameter
Cabinet Body Model ET7575131-EQ
Size External Size: 1310mm×750mm×750mm(H×W×D)
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material High quality galvanized steel plate, single wall, 1.5mm thickness
Structure
  1.  One front door, hidden zinc alloy hinge
  2. Outdoor anti-theft three point steel lock, lock core assemble protection cover
  3. Install the door limit / wind lock on the inside of the cabinet door
  4. The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof
  5. Include 23U 19” rail for installing power distribution unit and lithium battery
  6. Including outer cover for air outlet(fan) and air inlet
  7. Equipped with cable manager
  8. Reserving the cable entry hole at the bottom of the cabinet
  9. Including grounding copper bar.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Anti-corrosion outdoor powder coating grey RAL7035
Ingress Protection IP65
Working Temperature -40℃~+75℃
Cooling Method Air Conditioner /
Heat Exchanger /
Fan 2 DC48V fan, including one temperature adjustable controller
Monitoring Monitoring Unit /
Smoke Sensor /
Vibration Sensor /
Water Sensor /
Temperature Sensor /
Door Sensor Including one door sensor
Other /
Lighting LED Lamp DC48V
LED Lamp Switch Used for controlling lamp on/off
Power Distribution Unit DC Power Distribution Unit Include power distribution frame, breaker spec is as follows: 63A/2P*2 6A/1P*3





Cabinet Drawing

External size: W×D×H 750×750×1310mm



23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution 0

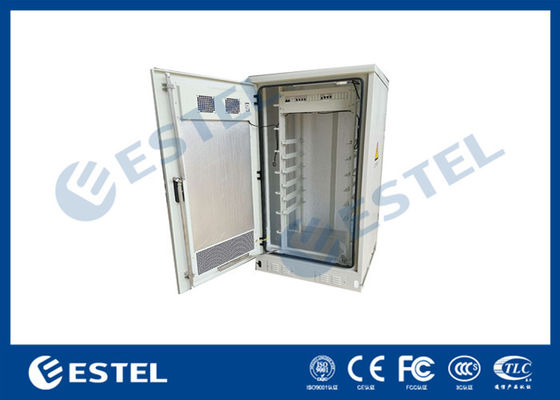

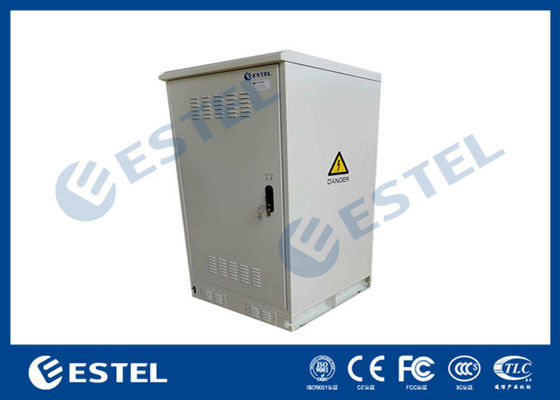

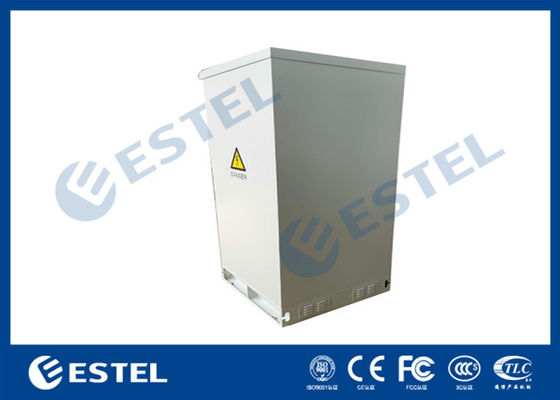

Cabinet Pictures:



23U Outdoor Battery Enclosure Lithium Ion Battery Cabinet With Power Distribution 1
