Three Battery Layers Integrated DC 48V Fans Outdoor Battery Cabinet

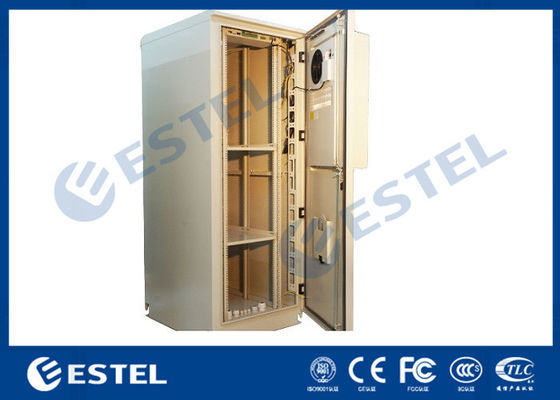

Large Image :  Three Battery Layers Integrated DC 48V Fans Outdoor Battery Cabinet

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 231090821050007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
External Size: W*D*H 900*800*2100mm Cabinet Lock: Anti-theft Three Point Lock(support Padlock)
Cable Inlets: From Cabinet Bottom Mounting Type: Floor Mount
Cooling System: Air Conditioner And Fan Protection Level: IP55
High Light:

telecom outdoor cabinet


outdoor server cabinet


Air Conditioner Integrated Galvanized Steel Outdoor Battery Cabinet With Three Battery Layers


1. Cabinet Advantage



1 Ease of access All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.
2 Ease of Maintenance Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.
3 Low MTTRaintenance Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).
4 Ease of installation Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.
5 Ease of adjustment Output voltage, current limits and alarm levels are easily adjustable.


2. Cabinet Features


2.1 Dimensions: W*D*H 900*800*2100mm,

2.2 Standard 19” Rack Mountable Equipment.

2.3 Dustproof, Sunproof and Rainproof.
2.4 Layout : one compartment

2.5 Electrical Grounding bar inside.

2.6 Doors: Lockable, With 1 front doors, and anti-theft 3-point lock with padlock optional.

2.7 Installation mode: installed on a concrete floor.

2.8 Heat Insulation: 20mm PEF heat insulation between inner wall and outer wall.

2.9 Cabling mode: routed in and out from the bottom.

2.10 Including -48VDC illumination lamp.

2.11 Accessories: PDU, Monitor, Light, Alarm Sensors (Based on request),Batteries.

2.12 Temperature Control: AC220V air conditioner or DC48V fans.

2.13 Protection level:IP55.

2.14 Certificates:CE.


3. Cabinet Instructions


For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.


This battery cabinet is 2100mm High and 900mm Wide and 800mm Deep. It comes with 3 battery layers battery layers. This cabinet is the ultimate choice for outdoor racking requirements.


4. Internal Components


  • There are three layers for battery installation inside the cabinet
  • There is one air conditioner installed on the front door to cool the systemt
  • There are cable holes at the bottom of the cabinet
  • There is one ground bar at the bottom of the cabinet


5.Cabinet Door Lock


Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.


Three Battery Layers Integrated DC 48V Fans Outdoor Battery Cabinet 0


Three point lock


Three Battery Layers Integrated DC 48V Fans Outdoor Battery Cabinet 1


6. Factory Introduction


Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Year


Three Battery Layers Integrated DC 48V Fans Outdoor Battery Cabinet 2
