Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving
  • Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving
  • Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving

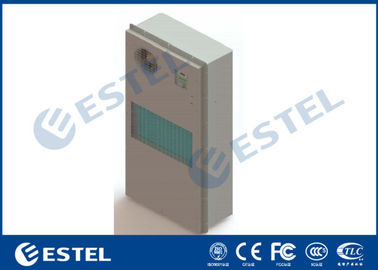

Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number ECA030EA
Product Details
Mounting Method:
Embeded
Input Voltage:
AC 220V±15% 50Hz
Cooling Capacity L35/L35:
5000W
Ingress Protection:
IP55
Certificates:
CE
Refrigerant:
R134A
High Light:

outdoor enclosure air conditioner

,

control cabinet air conditioner

,

RS485 Cabinet Air Conditioner

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with pallets
Delivery Time
15-20 working days
Payment Terms
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability
8,000 sets per month
Product Description

Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving



1. Air Conditioner Key Features

  • Remote measuring, remote communication, remote control, which can realize multiple automatic protec-tion and comprehensive self-testing function;
  • Strict process control and famous brand components to ensure high quality and reliability of this prod-uct;
  • Fit for harsh condition (T3), R134a refrigerant ;
  • Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
  • Built-in condensate water evaporating device is optional;
  • LED display, all the settings can changed at the field;
  • The heating function is optional;
  • Dry contact alarm output, NO/NC optional;
  • Anti-theft design, without the protection cover.

2. Air Conditioner Parameters



Type Parameters
Dimensions (Include flange) 1350*650*300mm
Dimensions(Without flange) 1300*600*300mm
Weight 85 kg
Mounting method Embedded
Application temperature -40℃ -70 ℃
Working temperature -15℃ -55 ℃
Input voltage AC 220V±15% 50Hz
Cooling capacity L35/L35 5000 W
Power consumption L35/L35 1850 W
Airflow 1250 m3/h
IP grade IP 55
Refrigerant R134A
Noise 65 dB(A)
Surface treatment RAL7035

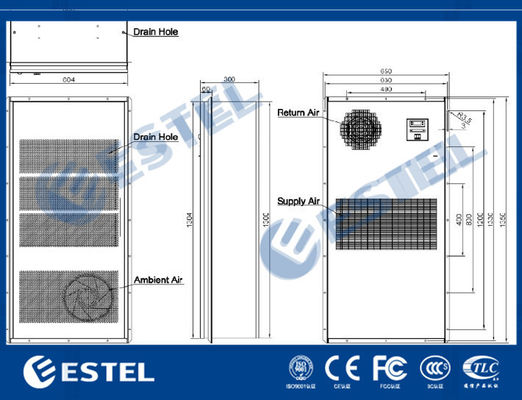

Frequency Variable Control Cabinet Air Conditioner DC RS485 Communication Energy Saving 0



3. Air Conditioner Installation instructions



In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet.

This product is free of cover, customers don’t need to install additional cover.

1. If the customer needs to in-stall a protective cover, in order to ensure enough circulation of air, the opening rate of the air inlet and outlet should be greater than 60%. It is very important to prolong the unit life and reduce the maintenance frequency.

2. The air inlet and outlet of the protective cover should pre-vent short circuit of air duct, so that the air-con can get the best cooling effect.

3.Due to the opening of the housing problems caused by the fault, not in the scope of the warranty.
