Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves
  • Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves
  • Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves

Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves

Place of Origin China
Brand Name ESTEL
Certification ISO9001
Model Number ET18398130-BA
Product Details
Material:
Galvanized Steel, Double Wall With Heat Insulation
Structure:
3 Battery Shelves
Protection Level:
IP55
Size:
W×D×H 1830×980×1300mm
Door:
2 Front Doors
Color:
Grey
Cooling:
Fan
Finish:
Anti-corrosion Outdoor Powder Coating
High Light:

telecom outdoor cabinet

,

outdoor server cabinet

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Wooden case
Delivery Time
15 to 20 days
Payment Terms
T/T, L/C, Western Union
Product Description

Double Wall Steel Outdoor Battery Cabinet / IP55 Base Station Cabinet



Brief Introduction



In order to realize the environment protection concept “green communication”, ESTEL focuses on environment protection and energy saving. We use all our resources and experience to contribute to environment protection.



To choose outdoor temperature control energy saving solutions is a system project. As a professional supplier in temperature control energy saving field, ESTEL accumulates lots of technology and application experience. On one hand, we continuously research and develop high energy efficient “green” air conditioner for outdoor temperature control energy saving; on the other hand, we provide multiple integrated solutions for temperature control energy saving of outdoor telecom equipments, to fully realize optimum control of outdoor temperature control energy saving system.





Technical Parameter



NO DESCRIPTION SPECS QUANTITY UNIT
1 Outdoor Battery Cabinet

(1)External Size:
W×D×H 1830×980×1300mm
(2) One compartment with battery shelves
(3) With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls.

(5) IP grade: IP55

1 PC
2 Fan DC48V 1 PC
3 LED Lamp Sensor Used for controlling led lamp on/ off 1 PC
4 LED Lamp DC48V, used for illumination in the cabinet 1 PC
5 Package Wooden case 1 PC







Size Drawing


Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 0

Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 1



Product Advantage

Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 2



Flexible Structure

Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 3

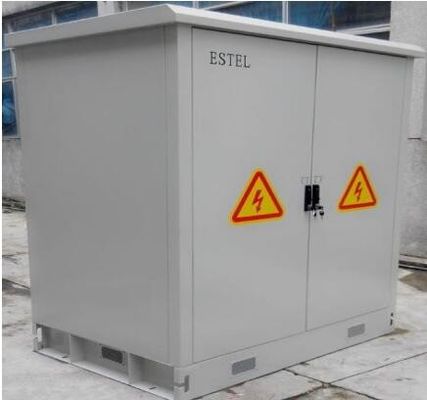

Cabinet Picture

Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 4Double Wall Steel Outdoor Battery Cabinet IP55 Base Station Closure 3 Battery Shelves 5
