Product Details:
Payment & Shipping Terms:
|
| Coating: | Anti-smoke Anti-corrosion Outdoor Powder Coating | Material: | Singel Wall Galvanized Steel, 1.2mm |
|---|---|---|---|
| Color: | Grey (support Custom Made) | Cabinet Lock: | Anti-theft Three Point Lock |
| Protection Level: | IP45 | External Size: | H*W*D 2200×1600×660mm |
| Cooling: | Direct Ventilation | Installation Method: | 8 Layers Of Battery Shelves |
| Door: | Two Front Doors And Two Back Doors | ||
| High Light: | outdoor battery enclosure,outdoor server cabinet |
||

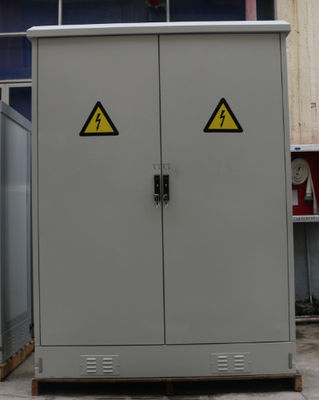

Single Wall Two Bay Outdoor Battery Cabinet With 8 Layers Shelves Two Front Doors Two Back Door
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension H*W*D 2200×1600×660mm |
| Layout | Two compartments | |

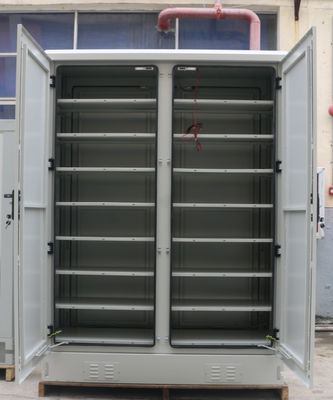

| Equipment Installation Method | Battery shelf, total 8 layers | |
| Door | With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Single wall, galvanized steel, thickness is 1.2mm | |
| Structure | Assembled and welded | |
| Ingress Protection | IP45 | |
| Temperature Control | Cooling | Direct ventilation |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ 55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension H*W*D 2200×1600×660mm (2) One compartment; (3) With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Single wall, galvanized steel, thickness is 1.2mm (5) Including grouding copper bar and cable entry |
| 2 | LED Lamp | 1 | PC | DC48V |
| 3 | Door Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 4 | Package | 1 | Set | Wooden Case |
