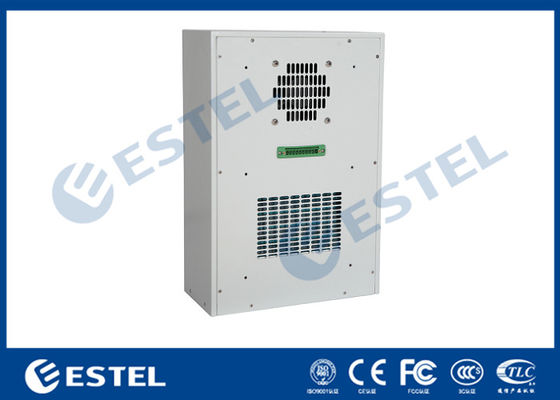

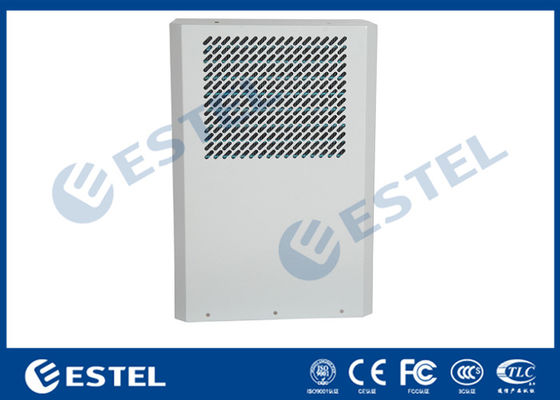

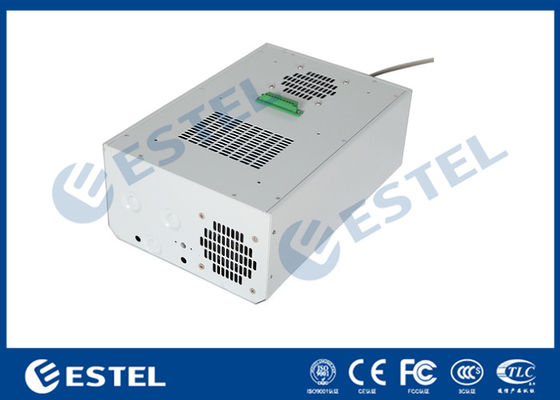

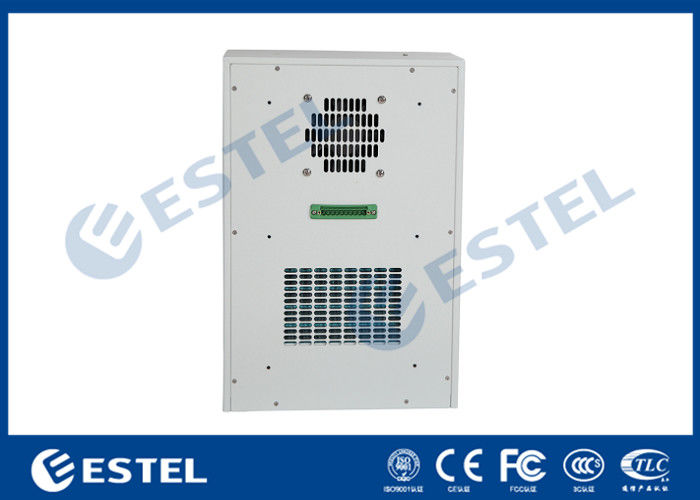

Outdoor Cabinet Air Conditioner 300W DC
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC
Model Number:
ETA003DC
Trading Properties
Minimum Order Quantity:
1
Price:
215-1215 usd
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Supply Ability:
16,000 sets per month
Product Summary
Energy Saving Variable Frequency 300W DC Air Conditioner With R134a Refrigerant MODBUS Protocol IP55 Product Feature Designed with all DC driven components like fans, compressor. Precise temperature control through inverter digital regulation of compressor, fans. Wide power supply voltage range: ...
Product Details
Highlight:
server cabinet air conditioner
,control cabinet air conditioner
Power Supply Voltage Range:
DC45~59 V
Cooling Method:
Compressor, Active Cooling
Application:
Cooling For Telecom Cabinet, Base Station Room
Installation:
Side Mount
Working Temperature Range:
-15 - +55
Product Description
Energy Saving Variable Frequency 300W DC Air Conditioner With R134a Refrigerant MODBUS Protocol IP55
Product Feature
- Designed with all DC driven components like fans, compressor.
- Precise temperature control through inverter digital regulation of compressor, fans.
- Wide power supply voltage range: DC45~59 V
- A comprehensive self-protection design to realize partial load starting, partial load operation at severe ambient condition
- Low power consumption design with EER≥3.5
- Energy saving reach to 50% comparing with A.C. version product
- Strict process control and international brand parts deployed to ensure high quality and reliability of product
- IP55 protection grade, suitable for T3 high temperature working condition, using environmentally friendly R134a refrigerant gas
- The best choice for solar / wind / battery power supply cooling demand
- Multiple self protection design & Interchangeable monitoring software interface, RS485 communication through MODBUS protocol.
Technical Data
| Product Model | ETA003DC | |
| Dimensions, Weight & Mount | ||
| External Dimensions (H x W x D) | MM | 400x240x150 |
| Weight | KG | 7 |
| Mounting Method | Side Mounting | |
| Application | Outdoor | |
| Environmental Protection & Performance | ||
| Working Temperature Range | ºC | -15 to +55 |
| Noise Level | dB(A) | 60 |
| IP Grade | IP | IP55 |
| Refrigerant | R134a | |
| CE & RoHS Compliant | YES | |
| Cooling Capacity & Operational Data | ||
|
Cooling Capacity@L35 / L35 Cooling Capacity@L35 / L55 |
W W |
300 180 |
| Internal Airflow | M3/h | 100 |
| Power Consumption@L35/L35 | W | 130 |
| Power Consumption@L35/L55 | W | 160 |
| Power, Frequency & Range | ||
| Input Voltage | VDC | DC48V |
| Frequency | HZ | ------ |
Cooling Performance
| Item | Condition | Cooling Capacity(W) | Power Consumption(W) | EER | |
| Ambient Temperature(ºC) | Return Temperature(ºC) | ETA003DC | ETA003DC | ETA003DC | |
| 1 | 35 | 35 | 300W | 130W | 2.3 |
| 2 | 55 | 35 | 180W | 160W | 1.1 |
Cooling Capacity Chart and Power Consumption Chart
Dimension
Embedded Installation Used In Telecom Cabinet
Production Process
