|Material:||Galvanized Steel||Model Number:||ET453070P/02|
|External Size:||W×D×H 450×300×700mm||Color:||Grey|
|Type:||Distribution Box,Control Box,OEM Aluminum Extrusion Housing,wall Mount Cabinet Outdoor Wall Mounted Cabinet 6u Rackmount,OEM Parts||Protection Level:||IP55|
|Size:||19 Inch||Cabinet Standard:||19inch|
|Products Status:||Used||Surface Finish:||Powder Coating|
|Package:||Wooden Case With Pallets|
wall mounted enclosure,
outdoor network cabinet,
Sandwich Galvanized Steel Metal Enclosure

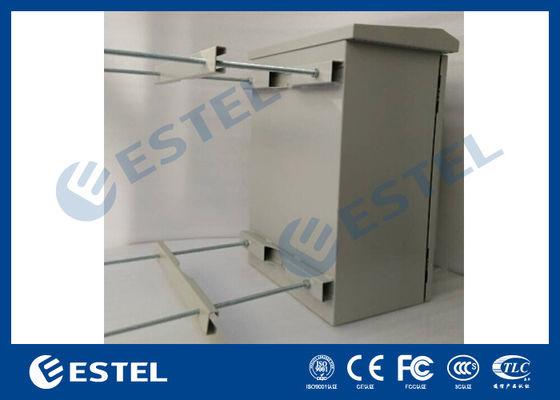

Sandwich Galvanized Steel Double Wall Mount Metal Enclosure Outdoor Box
The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
Applicable Environment Conditions:
Environment temperature: -40°C ~ + 70°C;
Environment humidity (RH): ≤95% (at + 40°C);
Air pressure: 62kPa ~ 102kPa.
Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
Material: galvanized steel.
Surface Treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
Cabinet Load Bearing: ≥300kg.
Ingress Protection: IP55.
Flame Retardance: comply with GB5169.7 test A.
Insulation Resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
Withstand Voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
Mechanical Strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
2. Quick Details
|Place of Origin: Shenzhen, China (Mainland)||
W×D×H 357×214×601mm (19”, 7U)
|Brand Name: ESTEL||Structure: double wall, with insulation|
|Model: ET453070P/02||Cabinet Layout: one compartment, for installing 19” equipment|
|Product Name: Outdoor Wall Mounted Cabinet||Protection Level: IP55|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Cabinet Lock: anti-theft three point lock|
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized Steel||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Cabinet Door: one front door|
|Color: grey (support custom made)||Cooling: DC48V Air Conditioner|
|Coating: anti-corrosion outdoor powder coating||Installation:wall mounted (also support pole mounted)|
Payment & Shipping Terms
|Minimum Order Quantity:||1 set|
|Payment Terms:||T/T, L/C, etc|
|Supply Ability:||10,000 sets per month|
|Delivery Time:||7-15 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
W×D×H 357×214×601mm (19”, 7U)
|Equipment Installation Method||19” standard rack|
|Door||With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)|
2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|Temperature Control||Cooling||DC48V air conditioner|
|Lighting||LED lamp||48V LED lamp|
|Temperature||Temperature||Working Temperature: -20°C ~ 55°C|
|Storage Temperature: -40°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
(2) Accessories List
|1||Outdoor Telecom Cabinet||1||Set||
(1)External Size: W×D×H 450×300×700mm
W×D×H 357×214×601mm (19”, 7U)
(2) One compartment;
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm PEF heat insulation between two walls
Power Supply: DC48V
|4||Door Sensor||1||PC||Used for controlling led lamp|
Cabinet External Size: 450mm×300mm×700mm (W×D×H).
LED illumination lamp, door sensor, fans are installed at the top part of the cabinet.
All outside cables use bottom entrance method.
(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
10.1 Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
10.2 Connection and Fastening
10.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
Install the cabinet as the following diagram(also support wall mounted).
12. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
Q: Are you trading company or manufacturer?
A: We are Manufacturer. We can do OEM/ODM business.
Q: What do you manufacture and supply?
A: Our company mainly produces Outdoor Telecom Cabinet
Q: Do you need drawings for quotation and production?
A: Yes, all our products are customized. We need either drawings or prototypes.
Q: What is your terms of payment ?
A: 50% T/T in advance ,balance before shipment.
