Product Details:
Payment & Shipping Terms:
|
| Switch Voltage: | 100VDC(MAX) | Voltage: | 150VDC(MAX) |
|---|---|---|---|
| Current: | 500mA | Action Distance: | ≥25mm ≤45mm |
| Impedance: | 0.3ohm | Power: | 10W |
| High Light: | environmental monitoring devices,environmental monitoring unit |
||

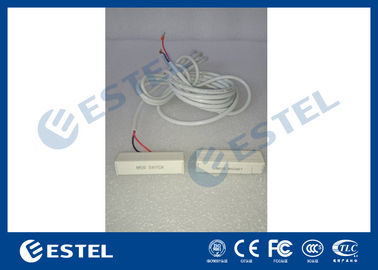

ABS Housing Environment Monitoring System Door Sensor / Alarm Reed Switch
Quick Details
| Place of Origin: Shenzhen, China (Mainland) | Switch Voltage: 100VDC(MAX) |
| Brand Name: ESTEL | Voltage: 150VDC(MAX) |
| Product Name: Door Sensor | Current: 500mA |
| Model Number: M520 | Impedance: 0.3ohm |
| Certification: ISO9001, CE, 3C, FCC, TLC | Power: 10W |
| Application: Outdoor Telecom Cabinet | Action Distance: ≥25mm ≤45mm |
| Housing Material: ABS (White) | Fixation: bolt |
Payment & Shipping Terms
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton/wooden case |
1. Specification
Technical Parameter
| Connection | PORT | Switch Voltage | 100VDC(MAX) |
| Current | 500mA |
Voltage Endurance |
150VDC(MAX) |
| Action Distance | ≥25mm ≤45mm | Impedance | 0.3ohm |
|
Power Consumption |
10w | Switch Type | Normal Open |
| Fixation | BOLT | Size | Follow Below |
| Hole Distance | 40 mm±0.8 mm | Housing material | ABS (White) |
2. Figure
3. Installation
According to the picture of the right side, open the cover of the magnet and switch, mount them on the both of window and doorframe respectively, connect the cable with the port. At last, mount the cover. (If necessary, take off the gate on the cover.)
4. Caution
(1) The current of the reed pipe should not exceed the specification value;
(2) The magnet should be mounted on moving door or window, the switch should be
mounted on the frame;
(3) Two parts of Reed Switch-magnet and switch should be parallel. The distance of two parts can not more than 10 millimeter when close the window or door. (note: if there is any iron close to it, please adjust the distance in accordance with the actual circumstance.);
(4) The product should be keep away from person or animal, it had better to be mounted on above of door and window.
5. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
