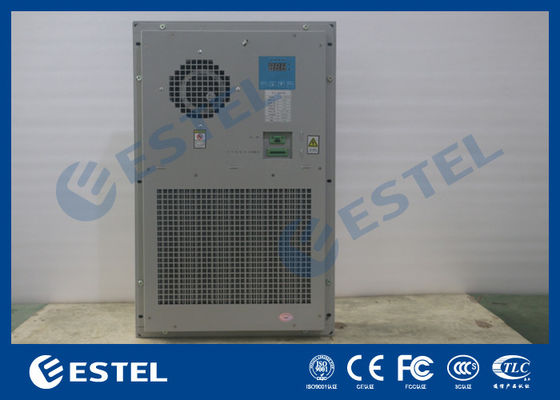

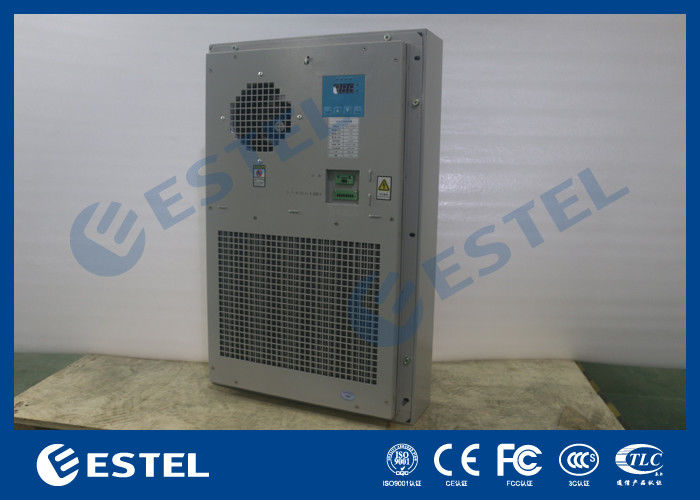

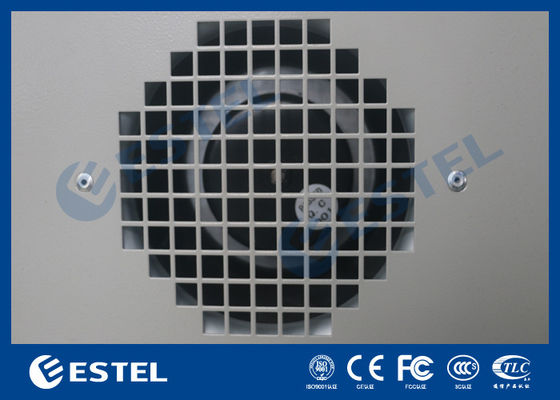

1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC
Model Number HE06-190SEH/01
Product Details
Cooling Method:
Heat Pipe, Passive Cooling
Installation Mode:
Door Mounted
Protection Level:
IP55
Cover Material:
Galvanized Steel
Rated Input Power:
168W
Rated Input Current:
3.5A
High Light:

cabinet heat exchanger

,

electric heat exchanger

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton + foam + wooden case
Delivery Time
7-15 working days
Payment Terms
L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability
12,000 sets per month
Product Description



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Rated Heat Exchange Capacity: 190W/K
Brand Name: ESTEL Rated Heating Capacity:300/500W (optional)
Model: HE06-190SEH/01 Rated Input Voltage: DC48V
Product Name: Outdoor Cabinet Heat Exchanger Rated Input Current: 3.5A
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Power: 168W
Cover Material: galvanized steel Working Temperature: -20°C ~ +55°C
Color: grey Energy Efficiency Ratio (EER):11.3
Protection Level: IP55 Noise: 65dB
Installation Mode: door mounted Dimension W×D×H: 455×200×820 mm
Support OEM Cooling Method: heat pipe, passive cooling



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 12,000 sets per month
Delivery Time: 7-15 working days
Packaging Details: carton + foam + wooden case



1. Specifications

(1) Technical Parameters



Model No. HE06-190SEH/01
Environmental Performance working environmental temperature -20°C ~ 55°C
storage working temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated heat exchange capacity 190W/K
rated heating capacity 300/500W (optional)
Electrical Performance rated input current 3.5A
rated input power 168W
rated input voltage DC48V
Noise 65dB
Energy Efficiency Ratio (EER) 11.3



Dimension: 455×200×820 mm (W×D×H)



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 0



Dimension of HE06-190SEH/01 Heat Exchanger



Size

Spec

Model A B C D E F G H I J K
190W/K Heat Exchanger HE06-190SEH/01(CW038) 300 432 450 700 797 820 151 200 775 408 455



Door Hole-opening Diagram:



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 1



Size

Spec

Model L M N O P Q R
190W/K Heat Exchanger HE06-190SEH/01 (CW038) 432 458 300 797 758 700 450



Installation Diagram



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 2



2. Description



The HE06-190SEH/01 Mixed Working Fluid Heat Pipe Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.



3. Application



The cabinet heat exchanger is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.



4. Features



  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • The heat exchange capacity can be set according to need
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Wide input voltage range: DC36 - 65V
  • With dry contact alarm output
  • Dust proof and water proof



5. System Principle Diagram



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 3

6. Electrical Wiring Diagram



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 4

Wiring Ports:

0V -48V: power supply input (voltage input: DC36 - 65V)

A+ B- SGND: RS485 communication interface

AL1 AL2: general alarm output

F+ F- : auxiliary direct ventilation control output (output voltage: DC36V-65V)



7. System Control

7.1 Application



ET725 intelligent heat exchanger controller is a type of universal intelligent controller. It is controlled by highly integrated STC single chip microcomputer. The controller features perfect performance, easy and fast installation and setting, which is widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.



7.2 Main Technical Parameters



  • Three digits seven segment LED display measured temperature and set temperature;
  • Temperature measurement accuracy: 0.1 °C; display accuracy:0.1 °C;
  • Intelligently select cooling or heating mode;
  • Direct ventilation function with protective mode;
  • Power supply: DC48V;
  • Power consumption:≤5W;
  • Working environment: -30°C~70°C; <90%RH;
  • Installation method: guide rail, hanging;
  • Dimension:150mm×190mm×45mm (L×W×H)



7.3 Operating Instruction



ET725 uses English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:

1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 5

Control Board Diagram



8. System Control Wiring Diagram



1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 6



9. Packing and Shipping

1900W Electrical Enclosure Heat Exchanger , Air Cooled Heat Exchanger Energy Saving 7
