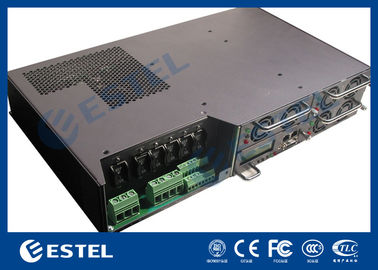

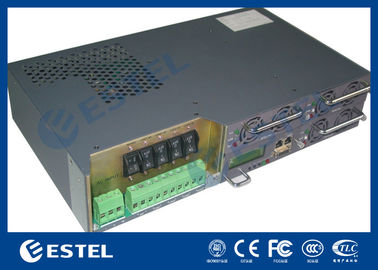

Microwave Communication GPE4890A Telecom Rectifier System / High Efficiency Telecom Power System High Efficiency
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Input Voltage: AC220V |
| Brand Name: ESTEL | Output Voltage: DC48V |
| Model Number: GPE4890A | Output Current: 90A |
| Product Name: Telecom Rectifier System | Input Frequency 45~65Hz |
| Certification: ISO9001, CE, 3C, FCC, TLC | Input Current: 29.7A |
| Installation Mode: 19” rack | Power Factor: 0.98 |
| Application: outdoor telecom enclosure |
Components: 3×30A rectifier module, 1×monitoring module, power distribution |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 20,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton/wooden case |
1. Application
(1) Small scale program controlled exchanger
(2) Access network
(3) Transmission equipment
(4) Mobile communication
(5) Satellite communication ground station
(6) Microwave communication
2. Features
(1) Adoption of active power factor compensation technology with factor ＞0.98
(2) Wide operating range of AC input voltage: 90~280Vac
(3) Operating temperature range:-25°C~+55°C
(4) Zero current/voltage switching tech with high efficiency ≥90%
(5) Perfect battery management, charge&discharge management, battery temperature compensation, low voltage protection, battery capacity test
(6) Hot-swappable
(7) Input over/under voltage protection
(8) Output over voltage protection
(9) Output over current protection
(10) Output short circuit protection
(11) Auto current sharing, parallel operation
(12) Embedded mounted
3. GPE4890A System Configuration
GPE4890A consists of distribution unit, rectifier module (up to 3 sets) and 1 monitoring module. The configuration is optional, as following table:
| Configuration | Rectifier Module | Monitoring Module | Power Distribution |
| Standard | GPR4830A1 | GPM48DI (With Ethernet Port) |
GPE4890A: AC Input: 40A×1; DC Output: 40A×4 (load); Battery Output: 70A×1 (battery) |
Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under 42V±0.5V, the monitoring module reports battery under voltage alarm signal and cuts off the load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).
| Input | |||||
| Parameter | Min. | Typical | Max. | Unit | Remark |
| Input voltage range | 90 | 220 | 280 | Vac | |
| Input frequency | 45 | 50 | 65 | Hz | |
| Input current | 29.7 | A | |||
| Power factor | 0.98 | ||||
| Output | |||||
| Parameter | Min. | Typical | Max. | Unit | Remark |
| Output voltage range | -42 | -53.5 | -58 | Vdc | |
| Output current range | 0 | 90 | A | 176~280VAC | |
| 0 | 45 | A | 90~175VAC | ||
| Ripple (Vp-p) | 200 | mv | At rated input/output, apply 0.1uF film capacitor and 10uF HF electrolyte capacitor, oscilloscope band width of 20MHz. | ||
| Output efficiency | 90 | 92 | % | 220Vac input | |
| 83 | 85 | % | 110Vac input | ||
| Regulation | ±1 | % | |||
| Load regulation | ±1 | % | |||
| Line regulation | ±1 | % | |||
| Insulation rating | ||
| Parameter | Min | Remark |
| Input - output | 2121Vdc/10mA//1min | |
| Input-chassis | 2121Vdc/10mA//1min | |
| Output - chassis | 750Vdc/10mA//1min | |
| Insulation resistance | At normal atmospheric pressure, relative humidity: 90%, testing voltage: 500vdc, insulation of input-output, input-ground, output-ground shall not be less than 10MΩ | |
| Ambient requirements | |||||
| Parameters | Min. | Typical | Max. | Unit | Remark |
| Operating temp | -25 | +55 | °C | ≥ 55°C, output with derating power | |
| Storage tempStorage temperature | -40 | +80 | °C | ||
| Humidity | 10 | 90 | % | Relative humidity, no condensing | |
| Atmospheric pressure | 70 | 106 | KPa | ||
| Altitude | 0 | 3000 | m | ||
| Cooling method | Forced cooling with fan | ||||
| Mechanical specifications | |
| Dimensions (Overall) | 482.6mm×255mm×86.1mm |
| Weight(kg) (Overall) |
≤11kg (Inclusive of module) ≤5.175kg (Frame + Distribution, exclusive of module) |
6. Installation
GPE4890A is embedded power system. First insert GPE4890A to the specified location till the system is well fixed. Keep the 4 fixing holes on the bracket in line with those on the cabinet and then screw up 4 M4 cross rounded head screws, with the spring washer and flat washer. At last finish the installation after tightening the screw.
