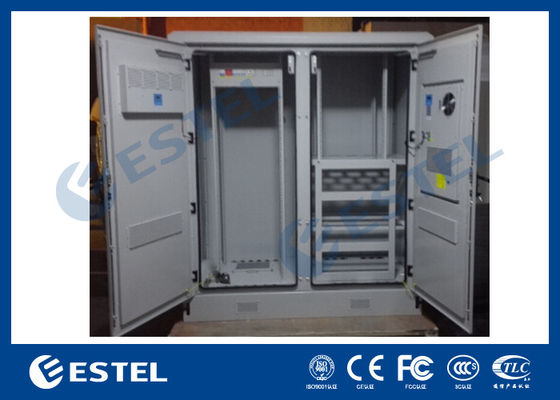

Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS
  • Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS
  • Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS
  • Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS

Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number DDTE073
Product Details
External Dimension:
H×W×D 2100×1700×850
Cabinet Bottom:
Exhaust Port
Protection:
Dustproof, Sunproof And Rainproof
Door:
With Hinge
Applicaiton:
Outdoor Telecom Base Station
Protection Of Grounding:
Grounding Bar
High Light:

street cabinets telecoms

,

outdoor data cabinet

,

Base Station Outdoor Rack

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden case
Delivery Time
15-20 working days
Payment Terms
L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability
6,000 sets per month
Product Description



Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Dimension: H×W×D 2100×1700×850

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: DDTE073

Cabinet Layout: two compartments

Product Name: Integrated Outdoor Telecom Cabinet / Base Station Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: AC220V Air Conditioner and DC48V Forced Ventilation System

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item

Type Technical Parameter
Structure Dimension

External Dimension: H×W×D 2100×1700×850mm

Layout 2 compartments
Equipment Installation Method 19” rack
Door With two front doors, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: H×W×D 2100×1700×850

(2) Two compartments: the right part is equipment compartment; the upper of left part is equipment compartment, the lower part of left part is battery compartment;

(3)With two front doors, and special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

(5) There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF

2 Air Conditioner 1 Set

Cooling capacity: 1KW, AC220V, 50HZ;

Model:TC06-100JFH/01

3 Forced Ventilation System 1 PC DC48V
4 Door Sensor 2 PC For controlling LED lamp
5 LED Lamp 2 PC DC48V
6 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

7 Package 1 Set Wooden Case



2. Applications



The DDTE073 Integrated Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Description



The cabinet is two compartments cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.



3.1 Wire Routing Design



Feeder cable and other external cables all use bottom wiring method.





Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 0

3.2 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 1



3.3 Door lock theft proof design



(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 2



(2) Three point lock



Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 3



3.4 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 4



3.5 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



4. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.



5. Packing and Shipping



Air Conditioner Type Base Station Outdoor Rack Cabinet Energy Saving For Equipment / UPS 5



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
