Detailed Product Description
Model Number: DDTE048 External Dimension: H×W×D 1800×1600×1400mm
Heat Insulation: PEF Installation: Assembled Or Welded
Cable Gland: At Cabinet Bottom Material: Hot Dip Galvanized Steel
High Light:

BTS outdoor cabinet

,

outdoor data cabinet

,

Three Point Lock 19 Inch Rack



Three Point Lock Integrated 19 Inch Rack Enclosures Temperature Control Equipment



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Dimension: H×W×D 1800×1600×1400mm

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure.

Model Number: DDTE048

Cabinet Layout: 2 compartments

Product Name: Outdoor Integrated Telecom Cabinet / Base Station Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: AC Air Conditioner

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, rectifier system



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 1800×1600×1400mm
Layout 2 compartments (separated left compartment and right compartment), without middle division plate.
Door With 2 front doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Mixed Cooling AC air conditioner
Power Supply Single Phase AC220V
Lightning Protection Grade B Lightning Protection Nominal: 60KA; Max: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1400 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Integrated Outdoor Cabinet 1 Set

(1) External Dimension: H×W×D 1800×1600×1400mm;

(2) 2 compartments;

(3) With 2 front doors, and anti-theft three point lock for outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

(5) There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF

2 AC Air Conditioner 1 Set

Cooling: 1KW;

Power Supply: AC220V;

Frequency: 50HZ

3 AC Air Conditioner 1 Set

Cooling: 0.5KW;

Power Supply: AC220V;

Frequency: 50HZ

4 Rectifier System 1 Set

Model: GPE48120C (DC48V, 120A)

Including:

(1) 4×30A Rectifier Module;

(2) 1× Monitoring Module;

(3) 1× Distribution Frame

5 PDU 1 Set

Grade B Lightning Proof;

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

6 LED lamp 2 PC DC48V
7 Package 1 Set Wooden Case



2. Applications



The DDTE048 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Cabinet Layout

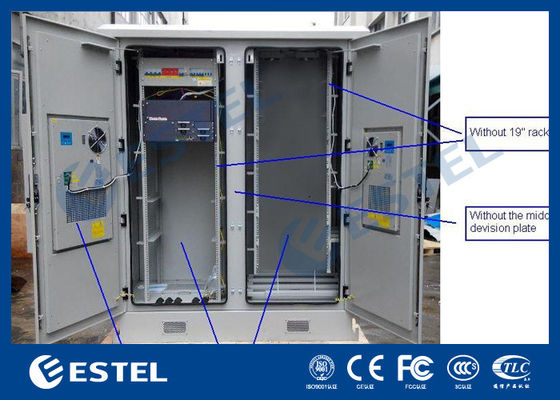

Three Point Lock Integrated 19 Inch Rack Enclosures Temperature Control Equipment 0
