Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery

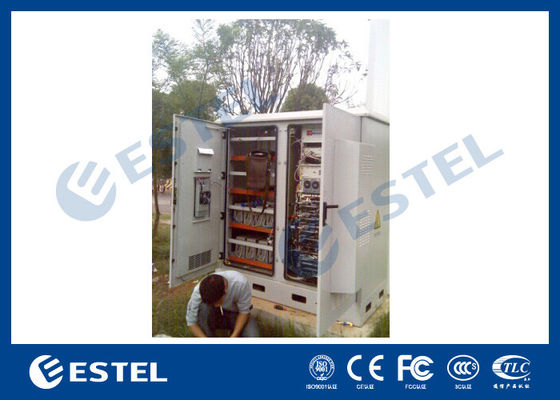

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery

Large Image :  Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE019
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability: 4,000 sets per month
Detailed Product Description
Working Temperature: -40°C ~ +55°C Coating: Anti-corrosion Outdoor Powder Coating
Cables: Made From Flame Retardant Materials Cabinet Size: Custom Made
Material: Galvanized Steel Heat Insulation: PEF
Highlight:

BTS outdoor cabinet

,

street cabinets telecoms

,

Telecom Outdoor Electrical Cabinet



Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Size:support custom made

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: DDTE019

Cabinet Layout: two compartments

Product Name: Outdoor Integrated Telecom Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: DC48V peltier air conditioner and DC48V heat exchanger

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, rectifier system, environment monitoring system



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 4,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension Size:support custom made
Layout Two compartments
Equipment Installation Method 19” standard rack and battery shelf
Door With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V Peltier Air Conditioner and DC48V heat exchanger
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



Accessories List



No. Item Quantity Unit Specs
1 Two Compartment Outdoor Telecom Cabinet 1 Set Size:support custom made
2 Peltier Air Conditioner 1 Set

Power Supply: DC48V

Cooling Capacity:200W

Model Number: TC06-20TEH/01

3 Heat Exchanger 1 Set

Power Supply: DC48V

Cooling Capacity:150W/K

Model Number: HE06-150SEH/01

4 Rectifier System 1 Set DC48V, 90A, 4800W
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

6 Environment Monitoring Unit 1 Set SM2400,1U
7 Temperature and Humidity Sensor 2 PC
8 Door Sensor 4 PC Each door has two door sensors, one for controlling LED lamp, the other for open door alarm
9 Water Sensor 2 PC
10 Smoke Sensor 2 PC
11 LED Lamp 2 PC DC48V
12 Package 1 Set Wooden Case



2. Application



The DDTE019 Outdoor Integrated Telecom Enclosure is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Features



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
  • Three cooling options for the cabinet: fans, heat exchanger or air conditioner.
  • -48V lamp is installed inside the cabinet.
  • The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.
  • Cabinet size can be custom made.



4. Description



The cabinet, made of galvanized steel, is divided into equipment compartment and battery compartment. The right part of the cabinet is equipment compartment, which is separated from the battery compartment for heat insulation of the equipment space. The left compartment is battery compartment which is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.

The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.



4.1 Cabinet Door and Lock



The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



4.1.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 0

  • Three point lock

 Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 1

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 2

4.2 Cable Inlet



Feeder cable and other external cables all use bottom wiring method.



Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 3



4.3 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 4



4.4 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 5



4.5 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



5. Packing and Shipping



Customized Telecom Outdoor Electrical Cabinet With Environment Monitoring System, PDU, Power System, Battery 6
