BTS outdoor cabinet,
outdoor data cabinet,
Three Bays Base Station Cabinet

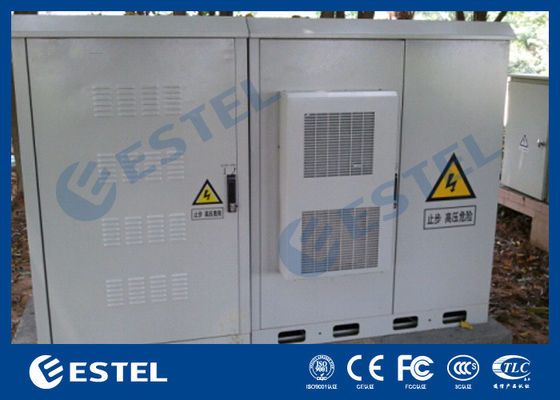

Three Bays Assembled Base Station Cabinet For Installing Battery / Power System
|Place of Origin: Shenzhen, China (Mainland)||Size: custom made|
|Brand Name: ESTEL||Structure: double wall, with insulation, sandwich structure|
|Model Number: DDTE027||Cabinet Layout: three compartment|
|Product Name: Outdoor Integrated Telecom Cabinet||Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Protection Level: IP55|
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized steel||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Grounding Protection: copper bar|
|Color: grey (support custom made)||Cooling: AC220V Air Conditioner and DC48V Fans|
|Coating: anti-corrosion outdoor powder coating||Accessories Options: PDU, rectifier system, environment monitoring system|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||10-20 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Equipment Installation Method||19” standard rack|
|Door||With two front doors; and anti-theft three point lock for outdoor cabinet (support padlock)|
2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm heat insulation between two walls.
|Temperature Control||Cooling||AC220V Air Conditioner and DC48V fans|
|Lighting||LED lamp||48V LED lamp|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
|1||Outdoor Telecom Cabinet||1||Set||
(1) Size: custom made
(2) Three compartments
(3) With two front doors; and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm heat insulation between two walls
Cooling capacity: 1.5KW;
|4||Environment Monitoring Unit||1||Set||1U, Model: SM2400|
|7||Door Sensor||4||PC||Two for controlling LED lamp, the other two for open door alarm|
|8||Temperature and Humidity Sensor||2||PC|
|10||Power Distribution Unit||1||Set||
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4.
|11||Embedded Telecom Power System (UPS)||1||Set||120A, DC48V|
The DDTE027 Outdoor Telecom Enclosure includes two cabinets, which works together. The two cabinets totally include three compartments. The three compartments can be battery compartment, equipment compartment, cable distribution compartment or MDF compartment. The structure can be custom made. The cooling options includes air conditioner, heat exchanger and fan. It is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
The cabinet, made of galvanized steel, is divided into equipment compartment, battery compartment, cable distribution compartment. The equipment compartment is separated from the battery compartment for heat insulation of the equipment space. The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.
The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.
Feeder cable and other external cables all use bottom wiring method.
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
4. Technical Specs
(1) Applicable environment conditions:
Environment temperature: -40°C ~ + 60°C
Environment humidity (RH): ≤95% (at + 40°C)
Air pressure: 70kPa ~ 106kPa
(2) Material: hot dip galvanized steel
(3) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
(4) Cabinet load bearing: ≥600kg
(5) Ingress Protection: IP55
(6) Flame retardance: comply with GB5169.7 test A
(7) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
(8) Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
(9) Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
5. Packing and Shipping
