|Applicaiton:||Outdoor Telecom Base Station||Grounding Protection:||Copper Bar|
|Cooling Capacity:||500W(air Conditioner)||Model:||DDTE074|
|Door:||Anti-theft Three Point Lock||Material:||Galvanized Steel|
outdoor equipment cabinet,
outdoor power enclosure

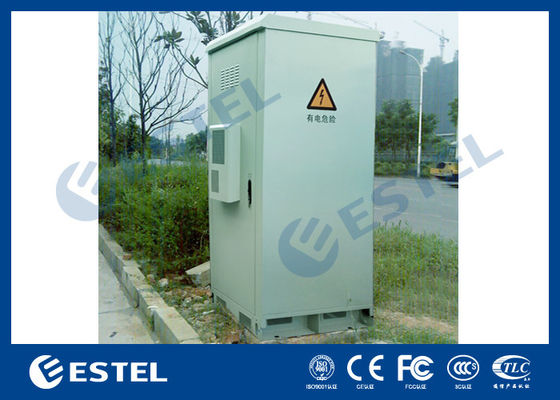

PDU Anti-Rust Paint Outdoor Power Cabinet , Outdoor Electrical Enclosure
The cabinet is one compartment cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
The DDTE074 Outdoor Telecom Power Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. Quick Details
|Place of Origin: Shenzhen, China (Mainland)||External Size H×W×D 2195×900×900MM|
|Brand Name: ESTEL||Structure: double wall, with heat insulation, sandwich structure.|
|Model:DDTE074||Cabinet Layout: one compartment, upper compartment for installing 19” power equipment, lower compartment for installing batteries.|
|Product Name: Outdoor Power Cabinet||Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Protection Level: IP55|
|Application: outdoor telecom base station||Cable Inlet: at cabinet bottom|
|Material: galvanized steel||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Grounding Protection: copper bar|
|Color: grey (support custom made)||Cooling Method: AC220V Air Conditioner and DC48V fans|
|Coating: anti-corrosion outdoor powder coating||Accessories Options: PDU|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C,D/A,T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||7-15 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Structure||Dimension||External Size H×W×D 2195×900×900mm|
|Equipment Installation Method||19” rack|
|Door||With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)|
|Material||Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate|
|Heat Insulation||There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.|
|Temperature Control||Cooling||AC220V air conditioner and DC48V fans|
|Lightning Proof||Grade B lightning proof||Nominal: 60KA, Max.: 100KA|
|Lighting||LED lamp||48V LED lamps (immovable), with protective circuit breaker|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
(2) Accessories List
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Dimension: H×W×D 2195×900×900mm
(2) One compartment: the upper part is equipment compartment, the lower part is battery compartment;
(3)With one front door, and special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
(5)There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Cooling capacity: 0.5KW, AC220V, 50HZ;
|3||Auxiliary Direct Ventilation Fans||2||PC||12025 DC48V|
|4||Door Sensor||1||PC||One for controlling LED lamp, the other for open door alarm|
|6||Power Distribution Unit||1||Set||
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4
The cabinet is made of galvanized steel, with double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.
The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner, installed on front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
Feeder cable and other external cables all use bottom wiring method.
5.5 Grounding Protection
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2)Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
(3)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
(4)All the cables used in the cabinet are made from flame retardant materials.
