Product Details:
Payment & Shipping Terms:
|
| Application: | Outdoor Telecom Base Station | Heat Insulation: | PEF |
|---|---|---|---|
| Cabinet Lock: | Anti-theft Three Point Lock | Protection Level: | IP55 |
| External Dimension: | W×D×H 600×450×1200mm; | Internal Dimension: | W×D×H 550×400×1050mm |
| High Light: | outdoor equipment cabinet,power supply cabinet |
||

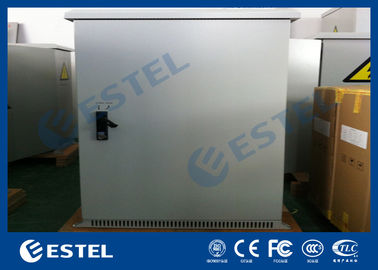

Anti-Theft Three Point Lock BTS Outdoor Cabinet Low Power Consumption
Quick Details
| Place of Origin: Shenzhen, China (Mainland) |
External Dimension: W×D×H 600×450×1200mm; Internal Dimension: W×D×H 550×400×1050mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model Number:ET6045120 | Cabinet Layout: one compartment, for installing batteries |
| Product Name: Outdoor Power Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Inlet: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: grey (support custom made) | Cooling: DC48V Fans |
| Coating: anti-corrosion outdoor powder coating | Other Cooling Options: heat exchanger, and air conditioner |
Payment & Shipping Terms
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, DA, DP, etc |
| Supply Ability: | 9,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W×D×H 600×450×1200mm; Internal Dimension: W×D×H 550×400×1050mm |
| Layout | 1 compartment, divided into upper and lower compartments | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double wall,1.5mm thick outer plate, 1.0mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | DC48V fans |
| Power Supply | Single phase | AC220V |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension: W×D×H 600×450×1200mm; Internal Dimension: W×D×H 550×400×1050mm (2) One compartment: the upper part is equipment compartment, the lower part is battery compartment. (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 1.0mm thick inner plate. The insulation material is 20mm PEF |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | 12025 DC48V |
| 3 | Door Sensor | 1 | PC | For controlling LED lamp on/off |
| 4 | LED Lamp | 1 | PC | DC48V |
| 5 | Package | 1 | Set | Wooden Case |
2. Applications
The ET6045120 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Dimension Diagram
External Dimension: W×D×H 600×450×1200mm;
Internal Dimension: W×D×H 550×400×1050mm

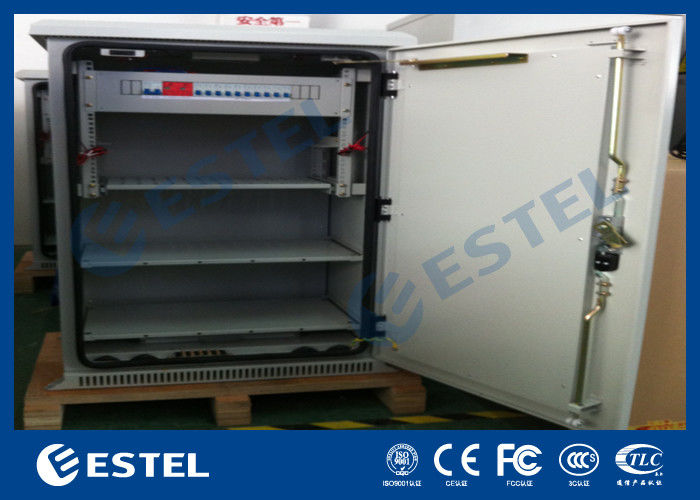

5. Details Display And Description

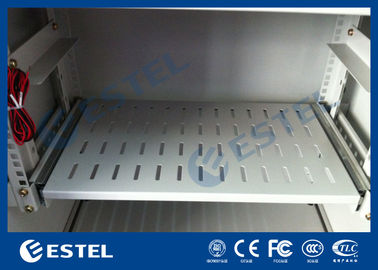

5.1 Equipment compartment tray with slide rail
5.2 Battery compartment
5.3 Grounding copper bar and cable entrance hole
5.4 Door limit
(2)Three point lock
6 Leading Time
Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.
7. Packing and Shipping
The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
