|External Size:||H×W×D 3200×800x2000mm||Protection:||IP55|
|Internal Capacity:||19" Rack||Doors:||Four Doors|
|Layout:||4 Compartments||Air Pressure:||62kpa ~ 101kpa (similar To 0m ~ 5000m Altitude)|
BTS outdoor cabinet,
outdoor data cabinet

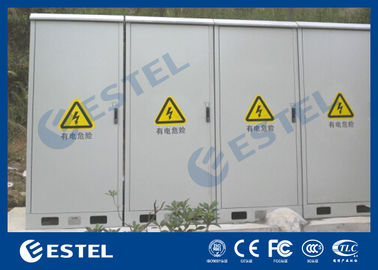

Four Compartment Integrated Outdoor Telecom Cabinet , Base Station Cabinet
|Place of Origin: Shenzhen, China (Mainland)||External Size H×W×D 3200×800x2000mm|
Brand Name: ESTEL
|Structure: double wall, with insulation, sandwich structure|
Model Number: DDTE034
|Cabinet Layout: four compartments|
Product Name: Integrated Outdoor Telecom Cabinet
|Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||
Protection Level: IP55
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized steel||Illumination: DC48V LED lamp|
Heat Insulation: PEF
|Grounding Protection: copper bar|
Color: grey (support custom made)
|Cooling: AC220V Air Conditioner and DC48V Fans|
Coating: anti-corrosion outdoor powder coating
|Accessories Options: PDU, rectifier system, environment monitoring system|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C,D/A,T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||15-20 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Structure||Dimension||External Size H×W×D 3200×800x2000mm|

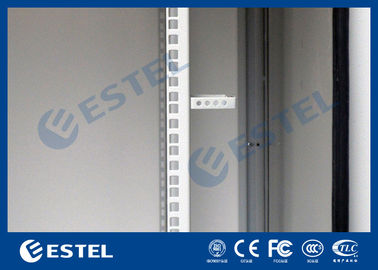

|Equipment Installation Method||19” standard rack and battery shelf|
With four front doors;
with anti-theft three point lock for outdoor cabinet (support padlock)
2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|Temperature Control||Cooling||AC220V Air Conditioner and DC48V fans|
|Lighting||LED lamp||48V LED lamp|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Dimension H×W×D 3200×800x2000mm;
(2) Four compartments;
(3) With four doors; with anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
500W Air Conditioner,
AC220V 50Hz power supply
|4||Power Distribution Unit||1||Set||
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4.
|5||Embedded Telecom Power System (UPS)||1||Set||DC48V, 60A, 3210W; Height: 1U.|
|6||Environment Monitioring System||1||Set||
1× environment monitoring unit;
1× smoke sensor,
1× temperature&humidity sensor,
4× door sensor.
|8||Door Sensor||4||Set||For controlling LED lamp on/off|
The cabinet, made of galvanized steel, is divided into equipment compartments and battery compartments. The cabinet is easy for installation, and with good sealing performance.
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.
The cabinet includes 19” equipment installation rack. The cabinet includes four air conditioner and fans, installed on front door.
Equipment Compartment: The right part of the cabinet is equipment compartment, which is separated from the battery compartment with devision plate.
Battery Compartment: The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet includes exhaust device, which can release harmful gas generated by the batteries.
Cabinet Dimension: W×D×H 3200mm×800mmx2000mm
The cabinet includes four front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
2.3.1 Door lock theft proof design

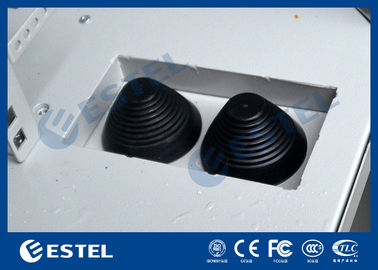

Feeder cable and other external cables all use bottom wiring method.
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

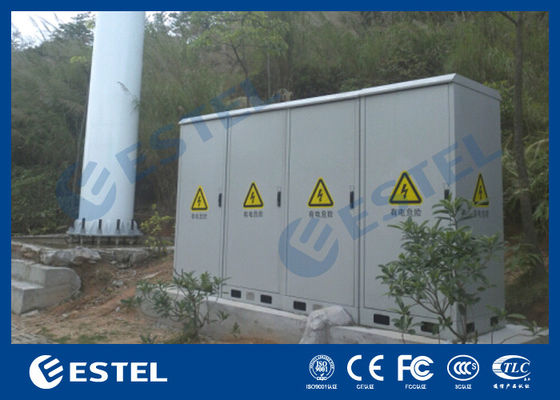

The DDTE034 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
