Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor Telecom Equipment Cabinet | Application: | Outdoor Telecom Base Station |
|---|---|---|---|
| Material: | Galvanized Steel | Heat Insulation: | PEF |
| Color: | Grey (support Custom Made) | Coating: | Anti-corrosion Outdoor Powder Coating |
| Cabinet Lock: | Anti-theft Three Point Lock | Protection Level: | IP55 |
| Highlight: | telecom equipment cabinet,outdoor telecom enclosure,Standard Outdoor Telecom Cabinet |
||
Standard Insulated 19inch Outdoor Telecom Cabinet HVAC Weatherproof Enclosure
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) |
External Size H×W×D 1750×750×750mm Internal Size H×W×D 1450×650×650mm (19”, 32U) |
|
Brand Name: ESTEL |
Structure: double wall, with insulation, sandwich structure |
|
Model Number: ET7575175-EQ |
Cabinet Layout: one compartment, for installing 19” equipment |
|
Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: DC48V Air Conditioner and DC48V Fans |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU, rectifier system, environment monitoring system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: |
L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H×W×D 1750×750×750mm; Internal Dimension H×W×D 1450×650×650mm. |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door; with three point lock for outdoor cabinet (support padlock) | |
| Material |
Sandwich structure: (1) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (2) Cabinet door and base: outer plate: 1.5mm galvanized steel, inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (3) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.) + 1.0mm galvanized steel. |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | DC48V Air conditioner and DC48V fan |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
Configuration List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1750×750×750mm; Internal Dimension H×W×D1450×650×650mm. (2) One compartment; (3) With one front door; with anti-theft three point lock for outdoor cabinet (support padlock); (4) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (5) Cabinet door and base: outer plate: 1.5mm galvanized steel, inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (6) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.) + 1.0mm galvanized steel. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 2000W; Power Supply: DC48V, Variable frequency air conditioner |
| 3 | Fans | 1 | PC | DC48V |
| 4 | LED Lamp | 1 | PC | For inllumination |
| 5 | LED Lamp Sensor | 1 | PC | LED lamp turns on when cabinet door is open, turn off when cabinet door is closed. |
| 6 | Power Distribution Unit (Optional) | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U Can be custom made. |
| 7 | Environment Monitoring System (Optional) | 1 | Set |
1× environment monitoring unit; 1× smoke sensor, 1×water sensor, 1× temperature&humidity sensor, 1× door sensor. |
| 8 | Package | 1 | Set | Wooden Case |
Cabinet Size:
External Dimension H×W×D 1750×750×750mm;
Internal Dimension H×W×D 1450×650×650mm.
2. Description
The cabinet is made of galvanized steel, with double walls, there are heat insulation between inner wall and outer wall. The cabinet is assembled type.

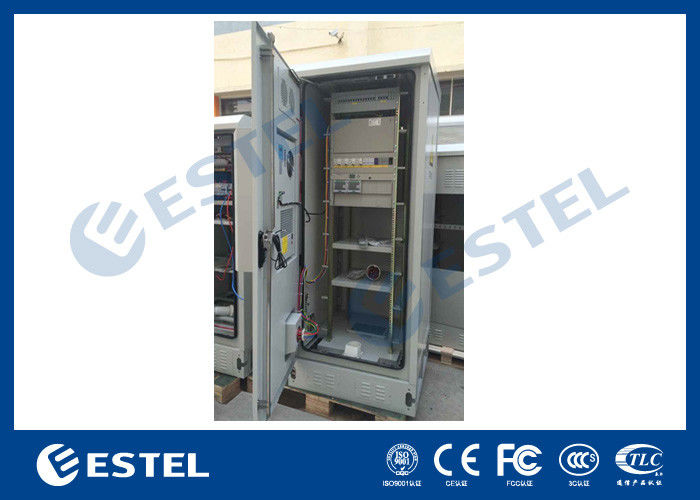

The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and fan, installed on front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
Feeder cable and other external cables all use bottom wiring method.
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
3. Applications
The ET7575175 Outdoor Telecom Equipment Cabinet is mainly used in wireless telecom base station, telecom tower, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
