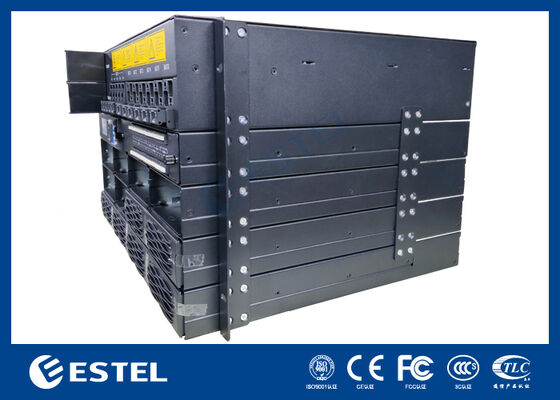

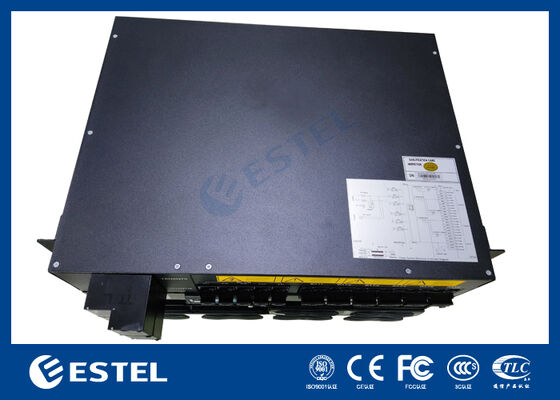

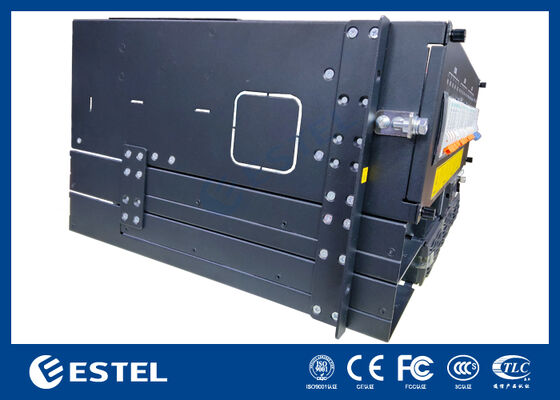

19 Inch Modular DC Power Distribution System for Telecom Networks with Battery Inputs and Integrated Monitoring

Product Description of DC Power Distribution System

The 19-inch Modular DC Power Distribution System is designed for telecom applications where reliable and centralized DC power distribution is essential. Ideal for telecom cabinets, communication rooms, and data centers, the system supports power distribution for a wide range of telecom equipment. The unit offers modular feeder outputs, battery inputs, and is equipped with a controller for easy monitoring and control.

Key Features of DC Power Distribution System

• High Power Capacity: Designed to handle demanding telecom applications with high-efficiency power distribution.

• Modular Design: Flexible configurations with multiple DC feeder outputs and battery inputs for redundancy.

• Integrated Monitoring: The built-in controller provides real-time feedback on power status, alarms, and system health.

• Front-Access Layout: Simplifies wiring, servicing, and ongoing maintenance without removing the unit from the rack.

• Communication Ports: Includes LAN and RS485 ports for remote monitoring and data communication.

Technical Specifications of DC Power Distribution System

Operating Guidelines of DC Power Distribution System

• Installation: Mount the DC Power Distribution System in a 19-inch rack using the provided side mounting brackets.

• Feeder Connections: Connect the DC feeder outputs to the equipment via the F1 to F8 terminals based on your installation design.

• Battery Integration: Ensure proper polarity when connecting BAT1 and BAT2 inputs to the backup battery strings.

• Remote Monitoring: Use the LAN or RS485 interface to link the system to a remote monitoring platform for real-time alerts and performance tracking.

• Signal Wiring: External signals (e.g., DI, DO, TEMP, BAT, ENV) should be wired through the dedicated signal terminal block for monitoring purposes.
