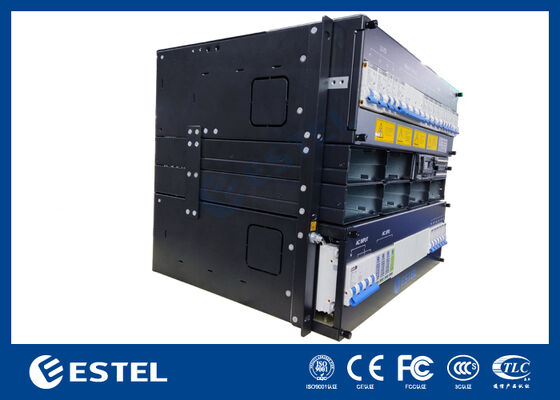

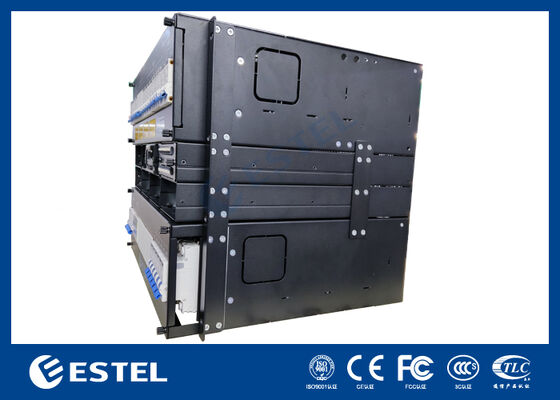

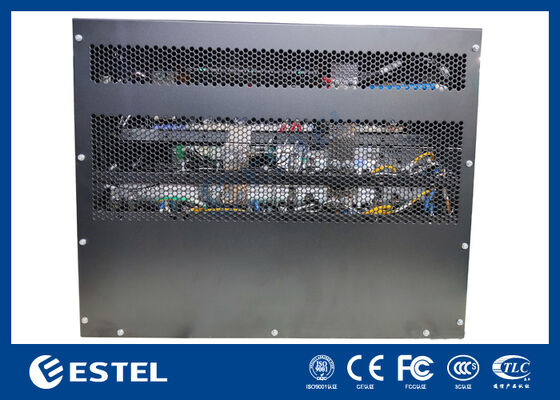

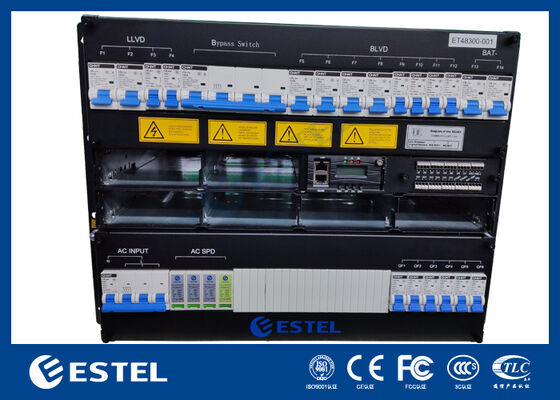

7U Compact DC Power System for Telecom Networks and Communication Infrastructure 6kW Output Integrated Control and Power Conversion

Product Description of 7U Compact DC Power System

The ET48100-G5F24 is a high-performance 7U DC power system, designed to provide reliable and efficient power for critical telecom and communication infrastructure. With a wide AC input voltage range (85-200VAC) and an exceptional efficiency rate of over 96%, this system ensures stable power delivery to wireless base stations, transmission networks, and enterprise communication systems. Its front-access design simplifies installation and maintenance, while the hot-swappable rectifier and controller modules ensure minimal downtime.

Key Feature of 7U Compact DC Power System

• 7U compact design for space-saving and reduced installation costs

• Front-access cable management for easy setup and maintenance

• Supports a wide input voltage range (85-200VAC), adaptable to different grid conditions

• Hot-swappable rectifier and controller modules for fast maintenance without system downtime

• Advanced battery management to ensure long battery life and efficient operation

• Multiple communication ports (LAN, RS485, SNMP) for flexible remote monitoring and management

Technical Specifications of 7U Compact DC Power System

• System Dimensions: 482.0(W) x 250.6(D) x 7U(H)

• Weight: 18kg (without rectifiers)

• Cooling Mode: Natural cooling

• Installation: 19-inch rack or cabinet

• AC Input: 220VAC, single-phase

Rectifier:

• Rated Power: 2000W (176-200VAC)

• Operating Temperature: -40°C to +75°C (full load below 50°C)

• Cooling Mode: Forced cooling

• Dimensions: 106.5mm(W) x 286mm(D) x 41.5mm(H)

Controller:

• Communication Ports: LAN, RS485, SNMP

• Display Mode: LCD

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +70°C

• Operating Humidity: 5% to 95% (non-condensing)

Operating Guidelines:

• Installation:

• Install the ET48100-G5F24 power system in a 19-inch rack or suitable cabinet, ensuring there is adequate space for proper airflow and cooling.

• Cable Connections:
  Ensure that the AC, battery, and load connections are secure and properly made. The system allows for front-access cable management, making installation and maintenance more convenient.

• Remote Monitoring and Control:
  Use the LAN, RS485, or SNMP communication ports to connect the system to a remote monitoring system. This enables real-time performance monitoring, receiving alerts, and troubleshooting remotely.

• Hot-Swappable Components:
  The rectifier and controller modules can be swapped while the system is operational. Simply remove the faulty module and replace it without powering down the system, ensuring continuous operation.

• Environmental Conditions:
  The system operates within a temperature range of -40°C to +75°C (below 50°C for full output), so ensure the operating environment remains within this range to avoid overheating. Maintain humidity levels between 5% and 95% (non-condensing) to prevent moisture-related issues.

• Maintenance:
  Regularly check the power system for secure connections, clean dust from air vents, and monitor the battery health. In the event of a malfunction, use the remote monitoring system for diagnostic information and replace faulty components as necessary.
