Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure

Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure
Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure

Large Image :  Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: CE UL FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD300-USD1000
Packaging Details: Wooden case
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 5000
Contact Now
Detailed Product Description
Door Type: With One Front Door Form Of Sale: OEM/ODM
Surfacetreatment: Powder Coating Insertion Loss: ≤0.20dB
Door: With One Front Door And One Rear Door Productname: Outdoor Telecom Cabinet
Insulation: Single Wall 20mm PEF(Thickness Optional) Material: Cold Rolled Steel
Protection: Dustproof, Sunproof And Rainproof Protectionlevel: IP55
Mountingtype: Ground Mounted Dimension: W×D×H 900×900×2100mm
Pressure: 62kpa ~ 101kpa Cabinet Layout: One/two/three Compartment
Cooling: DC48V Air Conditioner
Highlight:

outdoor telecom cabinet with double doors

,

floor standing telecom cabinet 19 inch rack

,

outdoor 19 inch rack telecom cabinet

Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure







Product Description Outdoor Floor Standing Telecom Cabinet

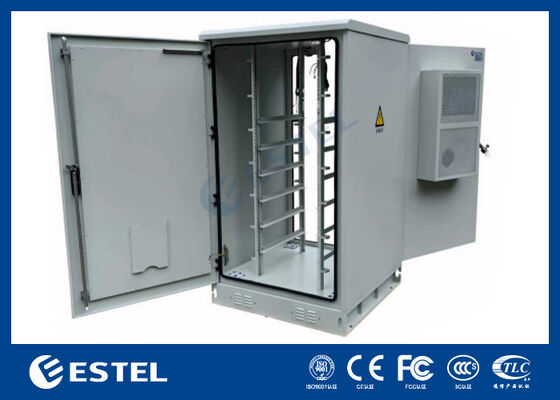

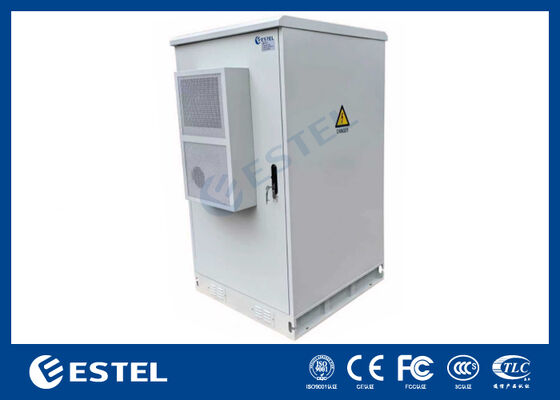

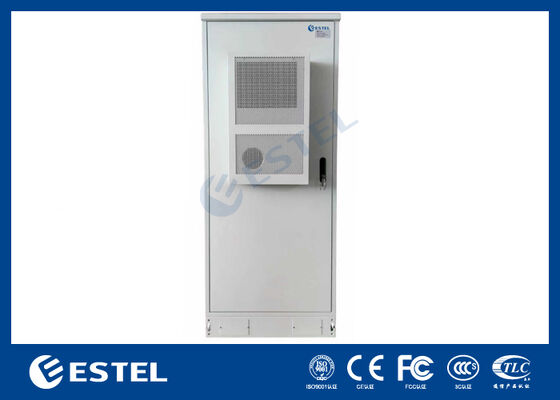

This outdoor floor-standing telecom cabinet is designed for communication sites, roadside network nodes, power support systems and other outdoor infrastructure applications that require protected equipment installation and thermal management. Based on the product images, the cabinet features a single full-height front door, a side-mounted cooling unit, a lockable access handle and an internal rack structure for organized equipment mounting. The enclosed metal body helps protect internal devices from the external environment, while the raised base supports floor installation and cable routing. The cabinet is suitable for housing telecom, power, transmission, monitoring or integrated control equipment in outdoor environments where secure access, internal organization and temperature control are essential.







Key Features for Outdoor Floor Standing Telecom Cabinet


• Outdoor floor-standing cabinet design for independent site deployment
• Single full-height front and rear door for easy equipment installation and maintenance
• A cooling unit for cabinet temperature control
• Internal rack structure for standardized equipment mounting
• Lockable handle for controlled access and better equipment security
• Raised bottom base for fixing, lifting and cable entry support
• Enclosed metal housing for outdoor equipment protection
• Suitable for telecom, power, transmission, monitoring and integrated outdoor applications







Technical Specifications for Outdoor Floor Standing Telecom Cabinet





Item Specification
Product Type Outdoor Telecom Equipment Cabinet
Installation Type Floor-standing outdoor installation
Cabinet Structure Single-bay enclosed metal cabinet
Door Configuration Single full-height front and rear door
Door Opening Side-hinged outward-opening door
Locking Method Front-mounted swing handle lock
Cooling Configuration 1 mounted cabinet cooling unit
Cooling Unit Location Mounted externally on the cabinet side panel
Internal Mounting Structure Integrated vertical rack frame
Rack Type Suitable for standard 19-inch equipment mounting
Internal Mounting Levels Multiple mounting positions visible along rack rails
Base Structure Raised plinth base for floor fixing and cable routing
Cabinet Material Powder-coated sheet metal enclosure
Cabinet Color Light grey
Warning Marking High-voltage / danger warning sign on cabinet body
Service Access Front and rear access through full-height door
Estimated Width Approx. 700–800 mm
Estimated Depth Approx. 700–900 mm
Estimated Height Approx. 1400–1800 mm
Application Outdoor telecom sites, communication nodes, monitoring systems, power support and integrated control equipment
Customization Internal layout, cooling type and cabinet size can be customized according to project requirements





Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure 0

Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure 1

Outdoor Floor Standing Telecom Cabinet with Double Doors and Internal 19 Inch Rack Structure 2



Operating Guidelines

  • Install the cabinet on a stable concrete or steel foundation and secure it through the bottom base structure.
  • Keep enough clearance around the cabinet door and side-mounted cooling unit for maintenance and airflow.
  • Install equipment on the internal rack according to the required load distribution and mounting position.
  • Route power and communication cables through the cabinet base or designated cable entry points during installation.
  • Keep the front door locked during normal operation to protect internal equipment and prevent unauthorized access.
