Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System

Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System
Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System

Large Image :  Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: CE UL FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD300-USD1000
Packaging Details: Wooden case
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 5000
Contact Now
Detailed Product Description
Protection Level: IP55 / IP65 Type: Network Cabinet
External Size: Customized Material: Steel
Color: RAL7035 GREY Product Name: Outdoor Telecom Cabinet
Application: Telecommunication Size: We Can Customize As Your Request
Service: OEM.ODM Cooling System: 500W 1000W 1500W 2000W Compressed Air Conditioner
Warranty: We Borne 100% Responsibility For Quality Problem Surface: Plating
Structure: Double Layer With Filter To Insulate Heat Weight: 240kg
Surface Finish: Powder Coating Style: Custom
Ip Rating: IP65 Usage: Customized
Highlight:

Outdoor Telecom Power Cabinet with cooling

,

48V 200Ah Lithium Battery Modules

,

Integrated Telecom Power System

Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Front and Rear Access Power System





Product Description for Outdoor Telecom Power Cabinet

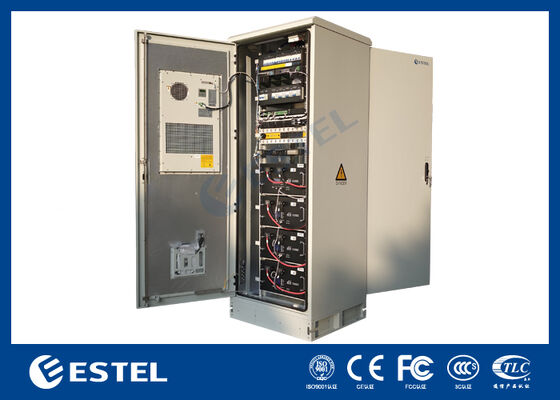

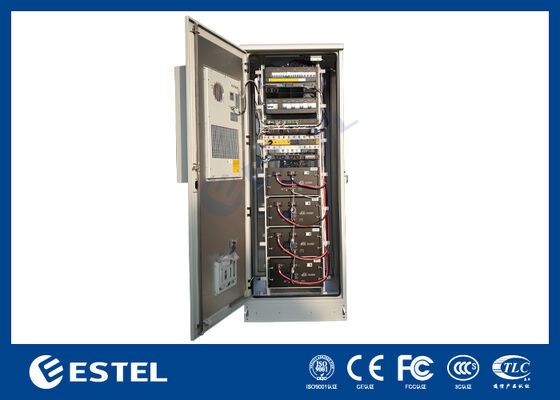

This outdoor telecom power cabinet is designed for communication sites, backup power systems and network infrastructure projects that require integrated power distribution, battery storage and environmental control in one enclosure. Based on the product images, the cabinet adopts a floor-standing outdoor structure with a full-height front door, door-mounted cooling unit and internal rack system for layered equipment installation. The cabinet is equipped with four front and rear access lithium battery modules and an upper power distribution section, allowing centralized installation of power, battery and control components in a single outdoor housing.







Key Features for Outdoor Telecom Power Cabinet




• Outdoor floor-standing cabinet with integrated cooling and internal rack structure
• Equipped with 4 front-access lithium battery modules for backup energy storage
• Each battery module is clearly marked 48V / 200Ah
• Total installed battery energy based on visible modules: 38.4kWh
• Internal rack layout supports integrated installation of power, battery and distribution units
• Door-mounted cooling unit helps maintain internal operating temperature
• Front and rear access design simplifies installation, service and battery replacement
• Suitable for telecom, communication, transmission and outdoor backup power applications









Technical Specifications for Outdoor Telecom Power Cabinet







Item Specification
Product Type Outdoor Telecom Power Cabinet
Installation Type Floor-standing outdoor installation
Cabinet Structure Single-bay enclosed metal cabinet
Door Configuration Single full-height front door
Cooling Configuration 1 door-mounted cooling unit visible on the inner side of the front door
Internal Mounting Structure Integrated vertical rack system for multi-level equipment installation

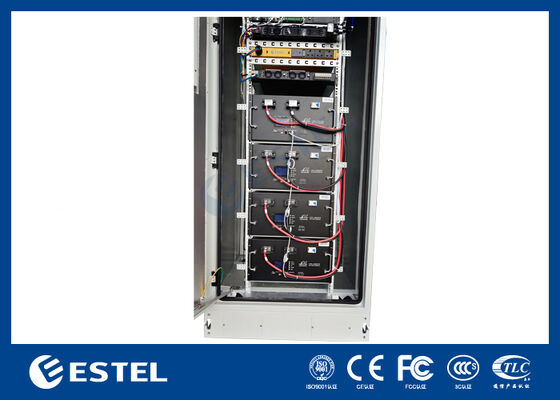

Battery Module Quantity 4 lithium battery modules visible
Battery Brand Marking LEOCH
Battery Model Marking LFELI-48200TB
Battery Nominal Voltage (per module) 48V
Battery Capacity (per module) 200Ah
Battery Energy (per module) 9600Wh
Total Nominal Battery Voltage 48V system
Total Installed Capacity 800Ah (4 × 200Ah)
Total Installed Energy 38.4kWh (4 × 9600Wh)
Battery Installation Method Front and rear access rack-mounted battery drawers/modules
Battery Terminal Connection Front terminal connection with heavy-duty DC cables
Battery Module Monitoring Each battery module includes front display / indicator area
Power Distribution Section Upper rack section includes DC distribution / breaker and power modules
AC Output Interface UK-type AC socket outlets visible in upper internal section
Service Access Front access for equipment installation and maintenance
Base Structure Raised plinth base for floor fixing and cable routing
Cabinet Finish Light grey outdoor industrial finish
Safety Marking High-voltage / danger warning sign on cabinet exterior
Application Outdoor telecom sites, backup power systems, communication nodes, transmission equipment and integrated power infrastructure







Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System 0

Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System 1

Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System 2





Operating Guidelines for Outdoor Telecom Power Cabinet



  • Install the cabinet on a stable outdoor foundation and secure it through the bottom base structure.
  • Ensure adequate clearance around the cabinet door and cooling unit for maintenance and airflow.
  • Verify that all battery modules are properly installed and that DC cable connections are tightened before system commissioning.
  • Install upper power, distribution and control equipment according to the rack layout and load allocation plan.
  • Keep the cabinet door closed and locked during normal operation to protect internal equipment and maintain environmental control.
